reinforced corrugated FRP tiles for roof cover

reinforced corrugated FRP tiles for roof cover

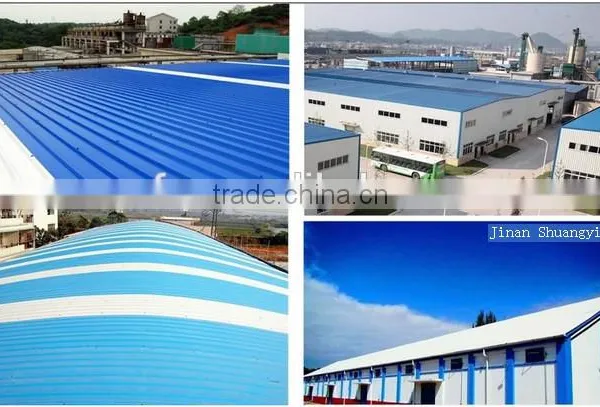

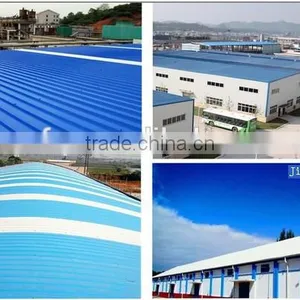

FRP roof tile, adopting advanced facilities and technology from Europe, is made of synthetic resin(ASA) with prominent weather ability. It remains stable in color and physical properties under ultra-violet radiation, dampness, heat, chillness and impact. It is widely used in workshop, warehouse, housing and various permanent roof with many years application history in many developed countries.

Normal thickness :1.2mm,1.5mm,2.0mm,2.5mm,3.0mm

Heat resistance limit:-40100

Bright and clear appearance,no distinct air bubble and cracking on FRP.

High intensity,and good tenacity.

Anti-corrosion,anti-aging,and heat resistance feature is perfect.

Brief Description:

1). Anti-aging resin, longer duration of use.

2). Strong UV protection

3). High light transmittance

4). Less bubbles, good impact strength and flexural strength to withstand typhoons and hail hit.

5). Good Performance of film, flat and smooth. Dust is easy to be removed.

6). High-quality E-glass fibers, good light transmittance and water resistance

7). Good corrosion resistance, suitable for acid and alkali environment.

8). Even thickness, consistent mechanical properties.

Prominent performance for weather ability:
As top layer material, ASA engineering resin is extraordinarily suitable for outdoor use. Even exposed to ultra-violet radiation, dampness, heat, chillness and impact, the products remain the stability of color and physical properties. Tests held in Aging Test Center of Arizona and Florida prove that is less than 5 within 10 years.

FRP roof tile passes 6,000h aging test by China National Test Center for Chemical Building Materials and its result less than 4.

Prominent performance for anti-impact and severe climate:
FRP roof tile is tested by falling sphere impact test,( a 1kg steel ball falls freely from 1.5 meters high on tiles ) which proves no crack. Tested by ten cycles of freeze and melting, it proves no swelling, frothiness, peeling-off or crack.

Prominent performance for heat insulation:

FRP roof tile, its heat conduction modulus is 0.325 W/m. K, which equal 1/3 with that of 10mm thickness clay tiles, 1/5 with that of 10mm thickness cement tiles, 1/2000 with that of 5mm thickness color steel tiles.

Prominent performance for anti-corrosion:
FRP roof tile, its surface layer (ASA resin) has great performance in anti-corrosion test, which will not decline by erosion of rain and snow. ASA resin is resistant to many chemicals such as acid, alkaline, salt, etc. Therefore, it is suitable for outdoor application in costal area with serious salt fog corrosion and heavy air pollution.

Self-cleaning:
The surface of roof tile is dense and smooth, which has the same effect as lotus leaves. It doesn't absorb dust and can be easily cleaned by rain.

Excellent capacity for heavy bearing:
Shuangyi synthetic resin roof tile has strong capacity for heavy bearing. The test, conducted by Shandong Municipal Building Material Component Quality Supervision and Test Station, proves that there is no crack in condition of 800mm supporting span and 150kg applied load.

Light Weight:

One standard piece of roof tile weighs 1.87-6.0kg per square meter.

Environment-friendly:
With China Certificate of Environmental Labeling, this product proves no radiation, volatilizable materials and pollution. What’s more, it can be completely recycled.
