Large Industrial Cooling Tower for water treatment
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Cooling Type: | Counter Flow | Material: | FRP |
Place of Origin: | Shandong, China | Brand Name: | Shuangyi,Fuyalide | Model Number: | All types |
Voltage: | 380V customized | Power(W): | 2.5kw | Dimension(L*W*H): | As your requirements |
Weight: | According to size | Certification: | ISO9001/ISO14001 | Warranty: | 12 months |
After-sales Service Provided: | Overseas service center available |
Product Description
Industrial Durable Cooling Tower
Introduction:
Cooling tower is the equipment that use of air contact (directly or indirectly) water to cooling water. It take water as circulation coolant, absorb heat from the system and emissions into the atmosphere, so as to reduce the temperature of the circulating water in the tower, and can recycled manufacturing cooling water
industrial cooling tower The main used area:
Cooling tower is mainly used in air conditioning cooling system, frozen series, injection molding, tanning, foaming, power generation, steam turbine, aluminum processing, air compressor, industrial water cooling, and other fields, used for air conditioning cooling, refrigeration, plastic chemical industry.
Specific division, is as follows:
A, air temperature adjusting categories: air conditioning, refrigerator, freezer, refrigeration, air
conditioning, etc.
B,Manufacturing and machining, the food industry, pharmaceutical industry, metal casting,
plastic industry,
rubber industry, textile industry, steel mills, chemical industry, petrochemical products, etc.;
C, cooling types: mechanical operation of the generator, steam turbine, air compressor,
hydraulic press, engine, etc.;
Main features:
Excellent performance
The comprehensive optimization design causes the YDFH cooling tower to allocate the water, the air flow field to be even, the overall performance achieves best.
Quality Excellence
Selects the high quality patented filler, the target type sprayer to allocate water, the cooling tower special-purpose use all seal up electrical motor, the width leaf blade special-purpose air blower and the optimization design belt transmission system; The shell uses the FRP compound materials, the color is bright, surface bright and clean, anti-aging, non-fading, causes the cooling tower service long time keep new.
Environmental protection and energy conservation
Used the pour water filler with water collector, will drift control water loss in 0.1 percent below, the distribute water sink with cover to prevent contamination of the water cycle; it select wide blades, low-speed fan, to reduce the outlet of the dynamic pressure Loss of energy conservation effectively and environmental protection.
Ultra low noise
The speed reducer uses imported bearing, the air blower with wide leaf blade, low wind speed, enables the air blower noise to be under the active control; Uses the noise elimination flow divider, the sprayer distribute water and the unique design filler, will reduce the noise of spray waterfall lowly.
Small size, light weight
After Solid Edge the CAD optimization design, the cooling tower maximum limit reduces the area; the tower body structure uses the hot dipping zinc steel skeleton and the FRP compound materials, reduced the tower body weight quantity.
No | Main parts | Description | Note | |
Character | Quantity | |||
1 | Fan | Diameter | 2438mm |
|
No of blade | 6pcs | |||
Blade Material: aluminum/FRP |
| |||
2 | Gear Box | Type of gears: spiral bevel | 1 |
|
3 | Drive Shaft | Shaft Material HDG |
|
|
4 | Motor | Enclosure TEFC weather proof (IP-55) | 1 |
|
5 | Tower support | HDG material support frame |
|
|
6 | Tower body/shell | FRP material |
|
|
7 | Louver | FRP material |
|
|
8 | water collector, | FRP material |
|
|
9 | water tank/pan, | FRP material |
|
|
10 | Air funnel | FRP material |
|
|
11 | Sprinkler system | ABS material Sprayer/nozzle | 30pcs |
|
12 | Ladder | HDG steel | 1 pc |
|
13 | Fillings | PVC material | 2.5m³ |
|
14 | Tower support frame | HDG Steel |
|
|
15 | Tower support leg | HDG Steel | 6 pcs |
|
16 | Inlet water pipe | HDG Steel | 1 |
|
Pictures show

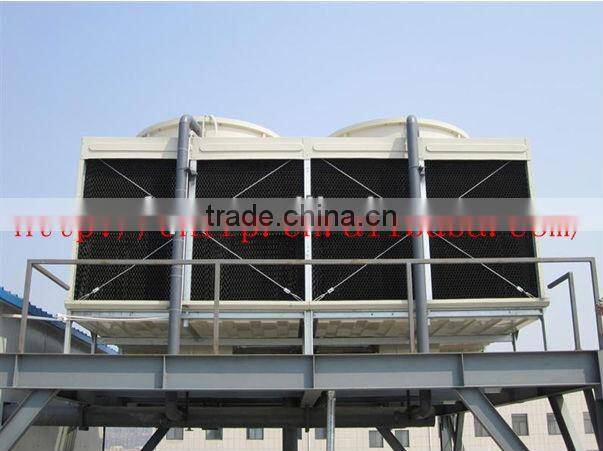

Standard cross flow cooling tower

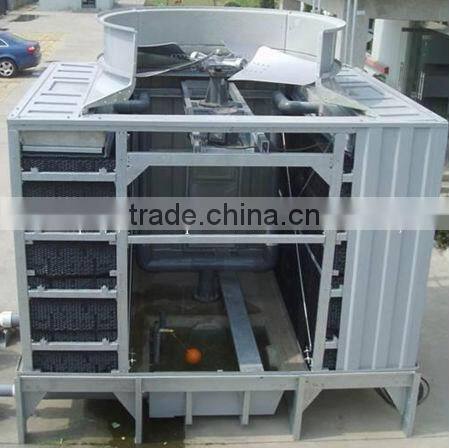

The view of the inside part of the cross flow cooling tower
The water tank after installing

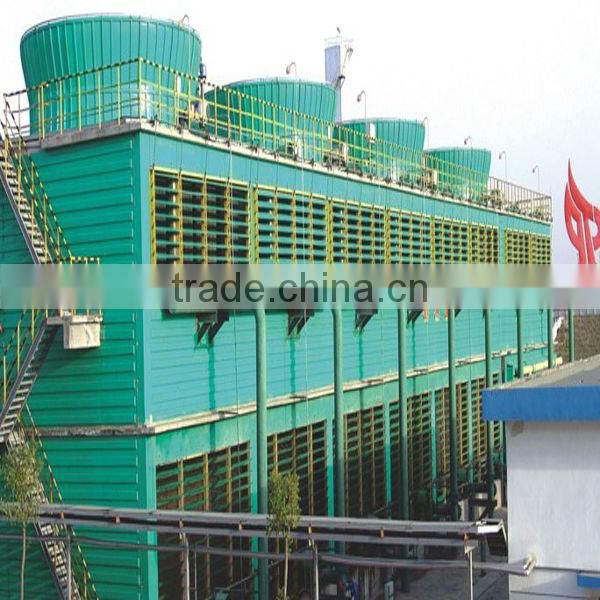

Concrete cooling tower

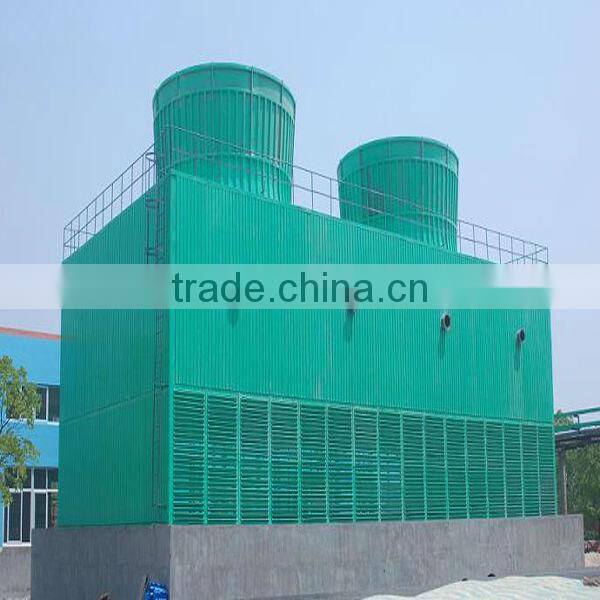

Steel frame counter flow cooling tower
Plant visiting
Certificate show
