Product Details
| Condition | New | Cooling Type | Counter Flow | |
| Material | Other, FRP, FRP | Place of Origin | Shandong, China | |
| Brand Name | Shuangyi Fuyalide | Model Number | YDFH | |
| Voltage | 110-480 V optional | Power(W) | depends on model | |
| Dimension(L*W*H) | depends on model | Weight | depends on model | |
| Certification | CE ISO9001 | Warranty | 12month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

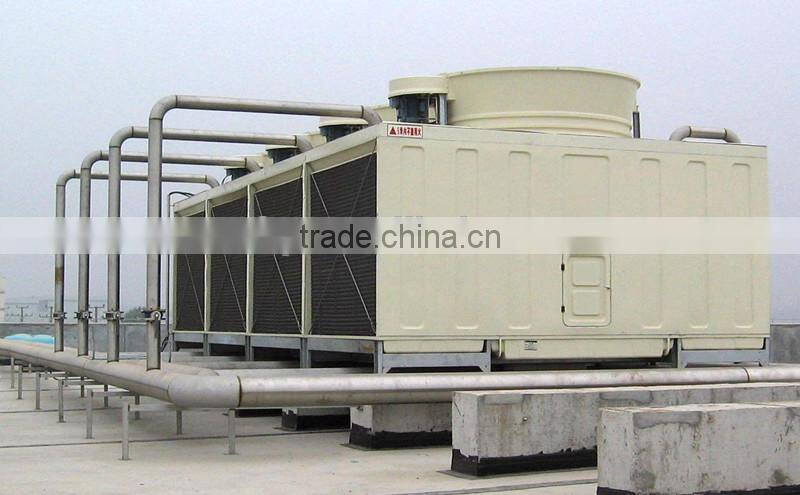

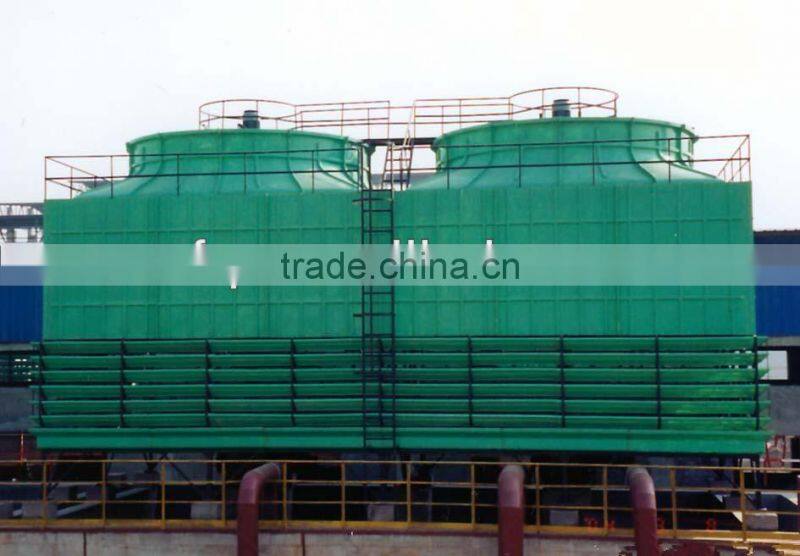

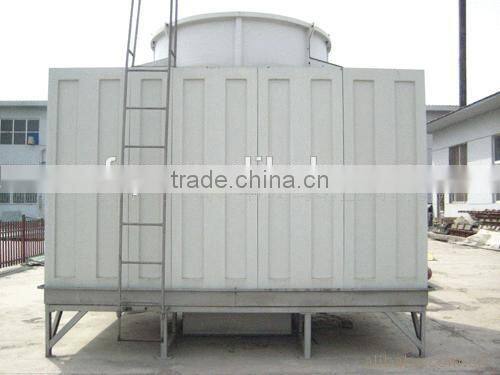

Water treatment industrial frp water cooler
(also called cooling tower,frp cooling tower,tower,counter flow cooling tower,cross flow cooling tower,FRP counter flow cooling tower,round shape or square shape cooling tower,steel frame cooling water,water cooling tower,Industrial cooling tower and so on)
Hot sale square cooling tower is designed to economic and save water,it is the huge advance in industry.We take Fibre-reinforced plastic as the materials of cooling tower.it is light,low noise and high quality.It is widely used in plastic,electronics,food,textile,chemicals,packing industrial and so on.
The standard cooling tower can afford the highest temperature is 60°C.If the temperature is higher than 60°C,we suggest you choose the High temperature cooling tower which can afford 100°C.

Hot sale square cooling tower - Quality Excellence
It selects high quality thermos filler with high temperature cooling tower special-purpose electrical motor. The three spray type to distribute water, great chord length wing shape cooling tower special-purpose air blower. The shell uses the FRP compound materials, the color is bright, surface bright and clean, anti-aging
causes the cooling tower still fresh even after long.
YDFN series cooling tower technology parameter list
Model (NCT) | Flow | Motor | D.W | W.W | Inlet outlet | Overflow drain | Flow valve | Height | Casing | Basin | Inlet outlet | Fan | Basin | Height | DIA. | Dia meter | Bolt center |
| m3/h | KW | KG | KG | WI/WO | DNW /DNO | FV | TH | CH | WH | IN/OH | ED | FD | FH | BC | WD | BD | |
| 10 | 7.81 | 0.18 | 46 | 190 | 40/40 | 25/25 | 15 | 1700 | 1025 | 335 | 180/270 | 600 | 560 | 250 | 480 | 945 | 9X3 |
| 20 | 15.62 | 0.55 | 67 | 300 | 50/50 | 25/25 | 15 | 1760 | 1070 | 350 | 190/280 | 730 | 740 | 250 | 690 | 1195 | 9X3 |
| 30 | 23.4 | 0.75 | 116 | 530 | 80/80 | 25/25 | 15 | 1885 | 1110 | 350 | 115/175 | 730 | 1120 | 300 | 830 | 1650 | 9X4 |
| 50 | 39.24 | 1.5 | 190 | 975 | 80/80 | 25/25 | 15 | 2035 | 1230 | 360 | 125/230 | 890 | 1380 | 300 | 1010 | 1830 | 9X4 |
| 60 | 46.8 | 1.5 | 240 | 1250 | 100/100 | 25/25 | 20 | 2225 | 1230 | 400 | 200/295 | 1150 | 1620 | 300 | 1180 | 2145 | 11X4 |
| 80 | 62.64 | 1.5 | 260 | 1280 | 100/100 | 25/25 | 20 | 2305 | 1310 | 400 | 200/295 | 1150 | 1620 | 300 | 1180 | 2145 | 11X4 |
| 100 | 78.12 | 2.25 | 500 | 1600 | 125/125 | 50/50 | 20 | 2690 | 1595 | 450 | 230/300 | 1450 | 2495 | 300 | 1230 | 2900 | 11X6 |
| 200 | 156.21 | 3.75 | 880 | 1980 | 150/150 | 50/50 | 25 | 3515 | 1965 | 850 | 245/850 | 1750 | 3400 | 300 | 2404 | 3310 | 16X8 |
| 300 | 234 | 7.5 | 1760 | 3930 | 200/200 | 80/80 | 40 | 4360 | 2160 | 900 | 280/900 | 2440 | 4920 | 300 | 2460 | 4730 | 16X12 |
| 500 | 329.4 | 11 | 2900 | 5800 | 250/250 | 100/100 | 50 | 4550 | 2180 | 900 | 280/900 | 2745 | 5760 | 400 | 2205 | 5600 | 16X24 |
| 600 | 468 | 15 | 3950 | 9350 | 250/250 | 100/100 | 50 | 5310 | 2430 | 1020 | 340/1020 | 3400 | 6760 | 400 | 2543 | 6600 | 25X32 |
| 700 | 547.2 | 18.5 | 4050 | 9450 | 250/250 | 100/100 | 50 | 5510 | 2630 | 1020 | 340/1020 | 3400 | 6760 | 400 | 2543 | 6600 | 25X32 |
| 800 | 626.4 | 22 | 4700 | 11900 | 300/300 | 100/100 | 80 | 5660 | 2680 | 1020 | 340/1020 | 3700 | 7500 | 400 | 2870 | 7600 | 25X32 |
