Home > Products > Greenhouse & Industry Ventilation Exhaust Fan > Extract Fan
Extract Fan
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Zhejiang, China | |
| Brand Name | Chengda | Model Number | HYF | |
| Voltage | 380v | Power | 1.5kw | |
| Air Volume | 55800 | Speed | 325 r/min | |
| Certification | CE |
Product Description
Specifications
1.exhaust dirty air, cooling2.44000 m3/h airflow
3.stainless steel fan blade
4.aut-open and close
extract fan
extract fan
Feature:
1.stainless steel fan blade
2.high-efficient motor,3C attestation is passed,
Prevention Grade:IP55,Insulation Grade:F
3. strict quality testing procedures:noise testing,vibration testing,fan blade speed testing
Tech parameter:
Model | Fan Blade (inch) | Fan Speed (RPM) | Motor Speed (RPM) | Capacity (m3/h) | Pressure (Pa) | Noise(db) | Power (w) | Voltage (v) | Size H*W*T(mm) |
HYF-900 | 30 | 630 | 1400 | 28000 | 65 | ≤65 | 370 | 380 | 900*900*400 |
HYF-1000 | 35 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000*1000*400 |
HYF-1100 | 40 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100*1100*400 |
HYF-1220 | 43 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220*1220*400 |
HYF-1380 | 50 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*400 |
HYF-1530 | 55 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530*1530*400 |

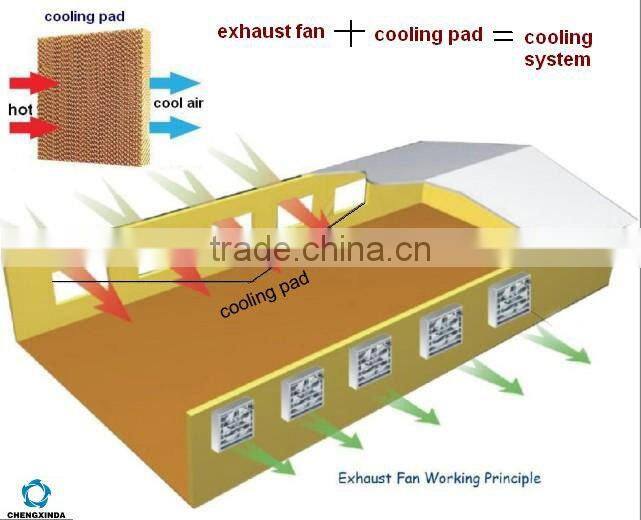

working principle:

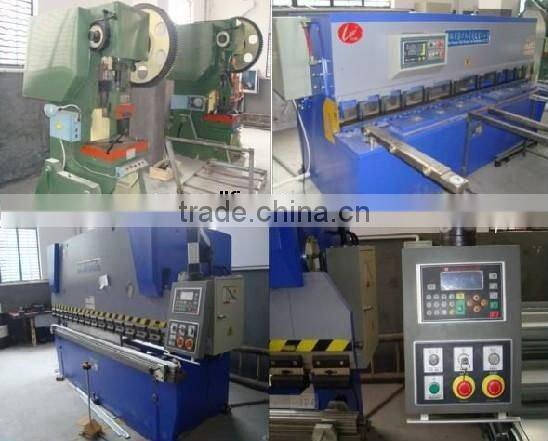

Machines :

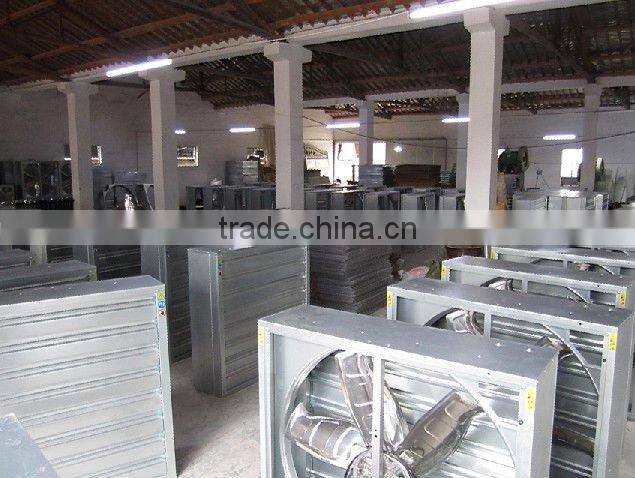

Warehouse:
