G411 Electric Wire Rope Thimble
- 500000 Piece / Pieces per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
- mould ,plastic mould. injection mould ,plastic injection
- plastic , plastic product, plastic injection, plastic accessory, plastic part.
- aluminium and zinc hardware sliding Windows lock for OEM
- zamak windows bolt Windows latch for OEM
- Zinc windows latch aluminium Window latch for OEM
- aluminium zamak Windows lock for OEM
Product Details
Place of Origin: | Shandong, China | Brand Name: | TY | Model Number: | G-411 |
Product Description

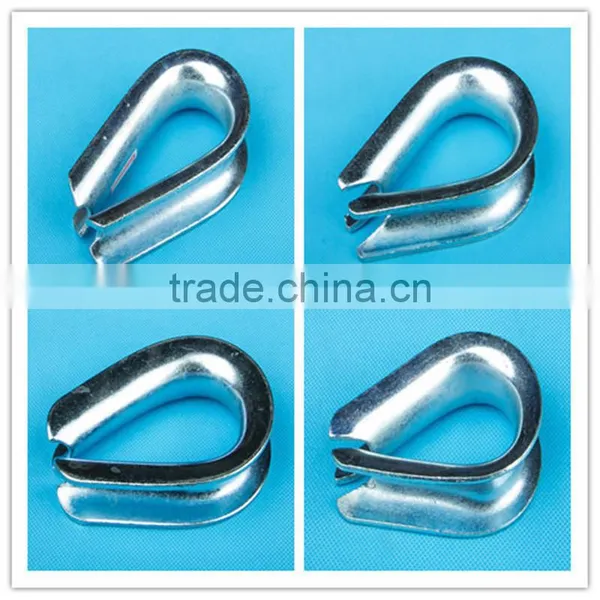

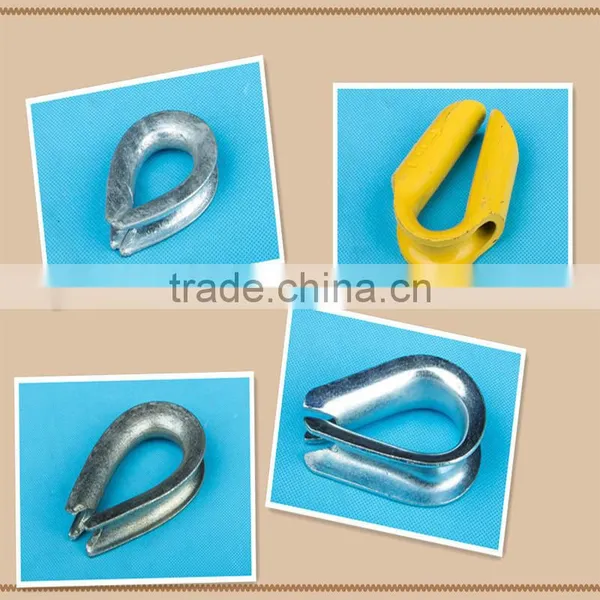

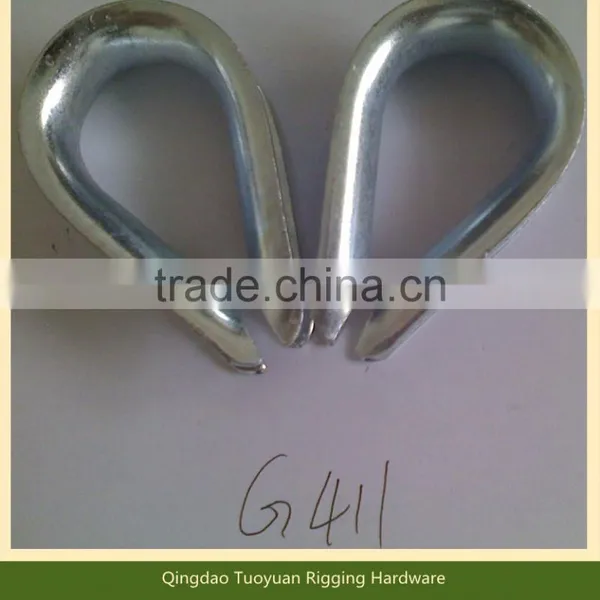

G411 Electric Wire Rope Thimble
• Material : mild steel
• Standard : generally to G411
• Finish : thimbles for rope diameters up to and including 6 mm are electro-galvanized, other diameters are hot dipped galvanized
• Certification : a works certificate can be supplied upon request
Weight per 100 (lbs.) | Dimensions (in.) | ||||||||
A | B | C | D | E | F | G | H | ||
1/8 | 2.50 | 1.94 | 1.31 | 1.06 | .69 | .25 | .16 | .05 | .13 |
3/16 | 2.50 | 1.94 | 1.31 | 1.06 | .69 | .31 | .22 | .05 | .13 |
1/4 | 3.75 | 1.94 | 1.31 | 1.06 | .69 | .38 | .28 | .05 | .13 |
5/16 | 3.75 | 2.13 | 1.50 | 1.25 | .81 | .44 | .34 | .05 | .13 |
3/8 | 6.25 | 2.38 | 1.63 | 1.47 | .94 | .53 | .41 | .06 | .16 |
1/2 | 12.50 | 2.75 | 1.88 | 1.75 | 1.13 | .69 | .53 | .08 | .19 |
5/8 | 25.00 | 3.50 | 2.25 | 2.38 | 1.38 | .91 | .66 | .13 | .34 |
3/4 | 50.00 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | .78 | .14 | .34 |
7/8 | 85.00 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | .94 | .16 | .44 |
1 | 100.00 | 6.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | .16 | .41 |
1 1/8-1 1/4 | 175.00 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | .22 | .50 |
Applications
Thimbles are used to protect steel wire rope, fibre rope or synthetic rope. They are available in various models and sizes. All indicated types of thimbles can be used in combination with the above mentioned types of ropes.
others you can choose
Gunny bags on pallets
Cartons on pallet s
As a manufacurer of rigging hardware , we can supply with competive price and high quality .
The most important : we can produce as what you want .
Qingdao Tuoyuan Rigging Hardware Co.,ltd. , is a professional manufacturer of rigging hardware ( shackle ,wire rope clips ,turnbuckle , hook ,eye bolt and nut , chain and etc ) , we have produced for 20 years . so choose us , we can supply the competive price and best quality and service . we always stand on the customer 's position .
1. Ask : Could you send the sample free ?
Answer : Yes , samples are free , but the first time freight cost are on the customer 's account .
2.Ask : Do you have any stock ?
Answer : Yes , usually we have some stock for the ordinary items .
Contact Us
- Qingdao Tuoyuan Rigging Hardware Co., Ltd.
- Contact nameguochao zhang
- Phone0086-0532-84531170
- AddressLingshan Town, Jimo Qingdao,Shandong
