commercial steel structure poultry house/chicken farm/broiler shed
(brand: U-Best)
steel structure poultry house/chicken farm/broiler shed consists of:
1.Main feed line system;
2.Automatic pan feeding system;
3.Automatic nipple drinking system;
4.Ventilation system (ventilation fans&air inlets);
5.Cooling pad system;
6.Environment control system;
7.Fogging system;
8.Heating system.
Specifics about our steel structure poultry house/chicken farm/broiler shed:
1.Main feed line system:
(1).Working principle:
By using this system, the feed can be conveyed from silo/manpower hopper into each feeding line hopper in
your chicken farms. There is one feed sensor at the end of main feed line, which controls on/off of the motor
automatically to achieve the aim of automatic feeding. The system can reduce labor intensity effectively,one
poultry house just need one breeder/worker.
(2).Two choice-silo or manpower hopper:

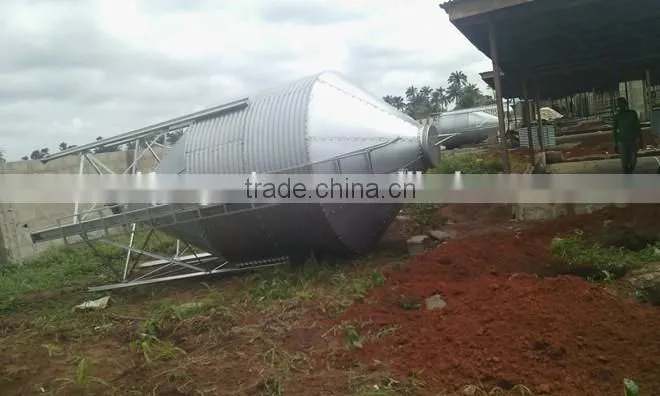

a.Silo:
The feed is stored in the silo, so as to save large amount of package, also to ensure the health of feed.
Different sizes of silos are alternative to choose according to the daily consumpltion.Material of silo consist of
galvanized sheet and glass fiber reinforced plastic.
b.Manpower hopper:
If you just build one or two chicken farm and your farm size is not too large, we suggest you to use manpower
hopper.
| Manpower hopper or silo | 600Kg/800Kg hopper, 3MT-20MT silo |
| Motor |
Taiwan brand Power: 0.75Kw/1.1Kw Voltage: 380V, three-phase/220V, single-phase/others |
| Main feed line |
Diameter of pipe: 75mm Material: PVC |
| Auger |
Origin: South Africa Feeding ability: 1400Kg/h |
| Sensor | Origin: Germany |

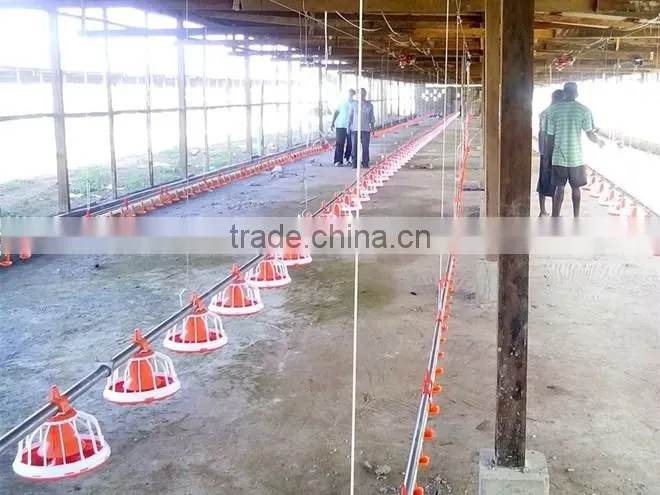

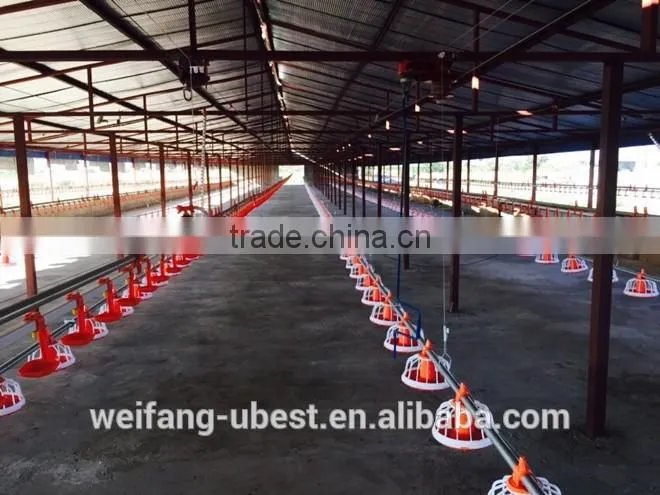

2.Automatic pan feeding system:
(1).Working principle:
There is a feed sensor installed inside one feed pan which is near to the motor end, the motor will start
working and convey feed when sensor doesn't touch feed and will stop wnrking when sensor touchs feed.

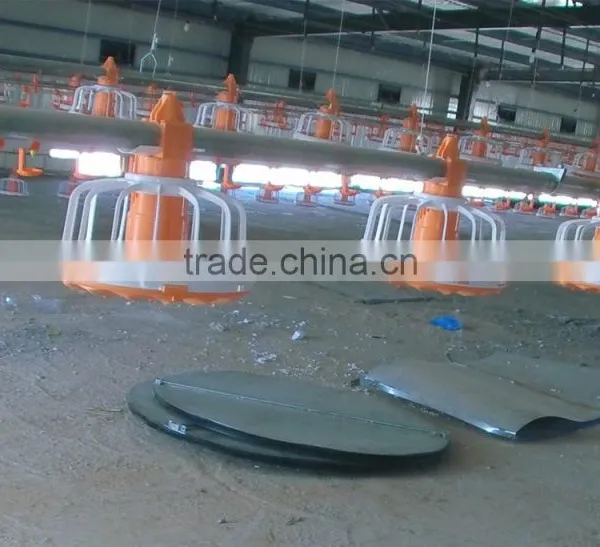

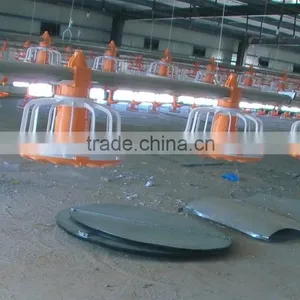

(2).Main component-feed pans:
Our conventional feed pan is with two ears to adjust the gears of feed amount, each one has 14 grilles,
diameter of pan bottom-330mm, made of high quality pure engineering plastic.
| Vice hopper |
Size: 70Kg/90Kg Material: hot-dip galvanized sheet |
| Motor |
Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw Voltage: 380V, three-phase/220V, single-phase/others |
| Delivery pipe |
Diameter of pipe: 45mm Material: hot-dip galvanized steel |
| Auger |
Origin: South Africa Feeding ability: 400Kg/h |
| Feed pan |
Pan distance: 4 pans/3m, 3 pans/3m Raising ability: 50-55 birds/pc Material: pure engineering plastic |
| Sensor | Origin: Germany |
| Suspension&lifting device | We can adjust the feeding line by winch. |
| Anti-perching device | It prevents birds staying on the feeding line for too long. |
3.Automatic nipple drinking system:
(1).Function:
The system provides fresh and clean water for each drinking line steadily, the water will be out when chickens
touch nipples. Our nipple's rod can be movable in 360 degrees, easy to drink.

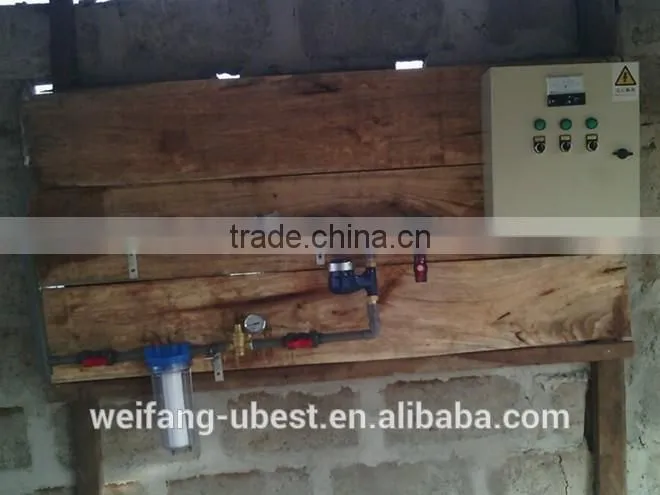

| Waterline front system |
filter pressure regulating valve water meter medicator(doser) |
| Water pipe with nipple drinker and drip cup $3B |
Nipple distance: 15 nipples/3m, 12 nipples/3m Raising ability: 8-12 birds/pc Nipple material: inside valve is made of stainless steel, shell is made of plastic Drip cup material: pure engineering plastic |
| Suspension lifting device | We can adjust the drinking line by winch. |
| Waterline end module | water display tube, etc |
4.Ventilation system:
(1).Function:
The system controls climate condition, which provides fresh air, proper humidity and temperature for birds,
ensuring your chickens provide maximum production.
(2).Main parts:

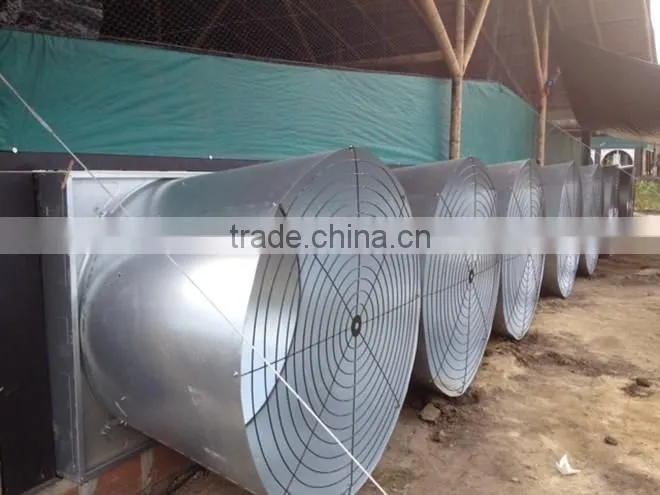

a.Ventilation fans:
| Specifications | 50'' butterfly cone fan | 50'' axial flow box fan | 36'' axial flow box fan |
| Flow amount(m3/h) | 51020 | 43170 | 20800 |
| Size(L*W*H)(mm) | 1380*1380*1360 | 1380*1380*450 | 1000*1000*450 |
| Noise level(db) | ≤65 | ≤65 | ≤64 |
| Power(Kw) | 1.1 | 1.1 | 0.4 |
| Voltage(V) | 380/220/others | 380/220/others | 380/220/others |
| Current(A) | 2.8 | 2.8 | 1.25 |
| Weight(Kg) | 100 | 89 | 54 |

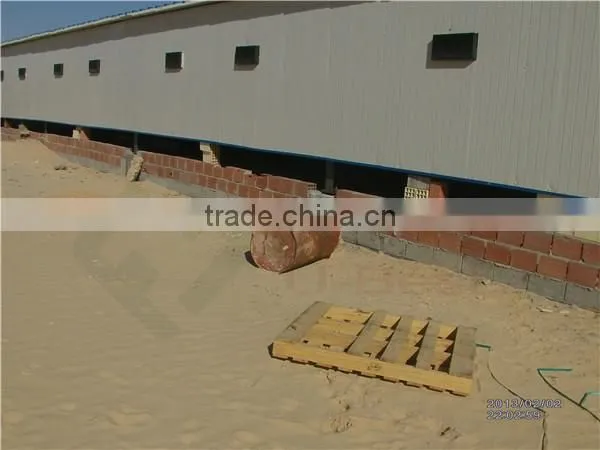

b.Air inlets:
*Manuel control: Operater will check the pressure of broiler shed, control the winches by hand until meet requirements;
*Automatic control: The T616 environment controller is connected to one static pressure sensor, air inlet windows will be
on/off automatically by pressure.

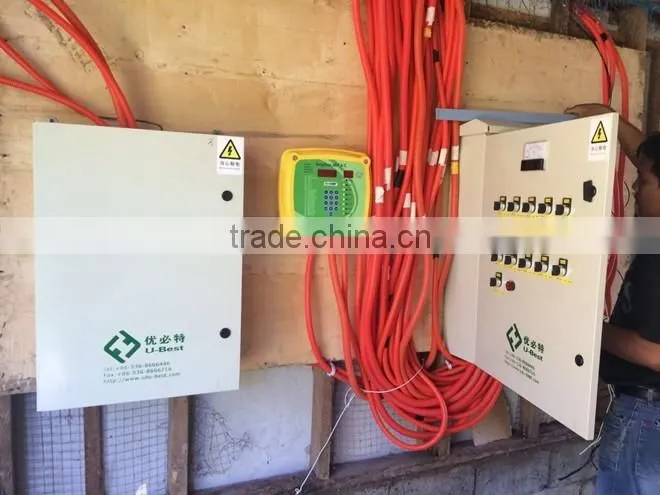

5.Environment control system:
Our environment controllers are imported from Israel, which can set suitable mode according to different
stage chickens raising requirelents, through control the on/off of ventilation fans, cooling pads, heaters
even air inlets to control poultry house environment automatically. We now have four series——T607/T610/
T616/Image II for your option, they can achieve minimum ventilation-transition ventilation-tunnel ventilation
easily; our control boxes use national standard box body and great brands (CHNT/SCHNEIDER/SIEMENS)
electronical components.

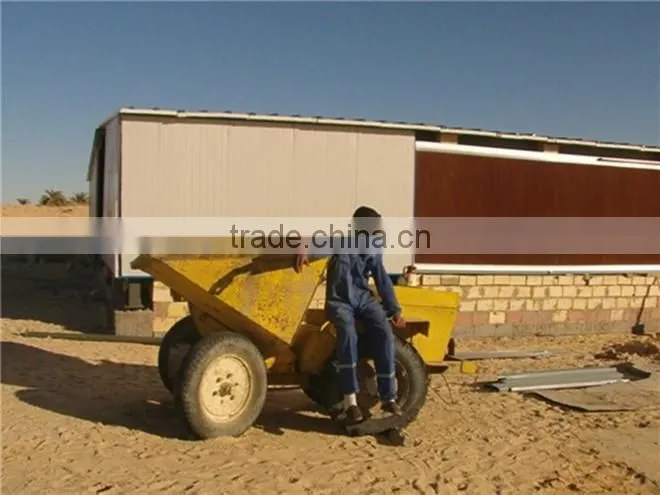

6.Cooling pad system:
(1).Function:
When the air goes through cooling pads, the heat will be taken down by the evaporation of water, so the air
will be cooled before going into your chicken farm. Our cooling pads have good corrosion resistance and long
service life, they have great features, good hygroscopicity, fast-dry, surface free of micro pores.
(2).Performance parameters:
Thickness:100mm;150mm
Width:300mm;600mm
Height(with frame):1660mm;1960mm;2160mm
Frame:Galvanized sheet frame or Aluminium alloy frame

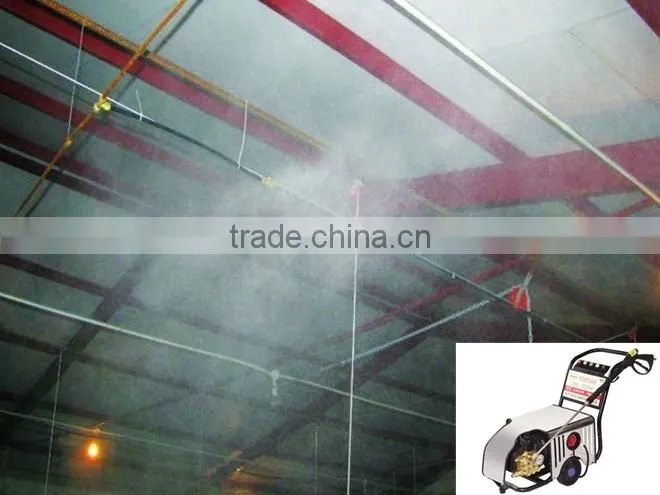

7.Fogging system:
(1).Function:
It's effective tool for reducing temperature, increasing humidity, cleaning your chicken farm and disinfecting.
(2).Working principle-atomization cooling:
The water will be purified through the filter, then conveyed into high-pressure nozzle after the pressurization
of high-pressure pump, which produces fog particles. The fog particles mix with ambient hot air to absorb a
large quantity of heat, and be evaporated to accelerate the air flow, thereby achieving the aim of temperature
reduction.
In summer, when the temperature inside your chicken farm is very high, the fogging system can reduce the
indoor temperature by 3-8 degrees centigrate within a few minutes.

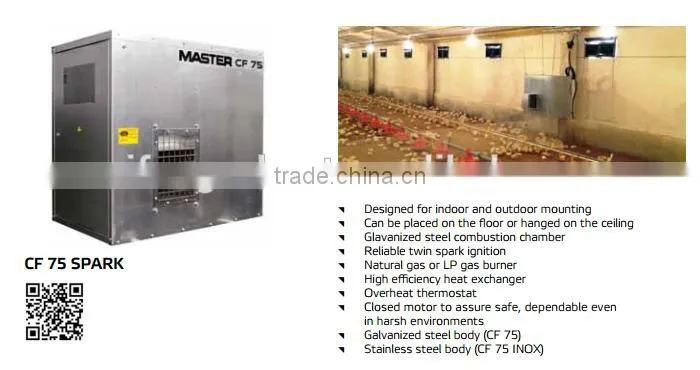

8.Heating system:
Proper temperature is critical to chickens, especially day-old chicks, we have different kinds heaters, they
fire coal, diesel, gas or use electricity, 4 kinds for your option.
Advantages of our steel structure poultry house/chicken farm/broiler shed:
a. Our poultry equipments have good quality, service life reach 10~15 years;
b. Easy to operate, easy to install and disassembly;
c. Save time and labor, one chicken farm just need one worker;
d. Save feed and water, raise survival rate;
e. Comopetitive prices, excellent service.
Weifang U-Best Husbandry Equipment Co.,Ltd is located in the beautiful World Kite Capital-Weifang City,
China, specialized in the collection of animal husbandry equipment research& development, manufacture,
sales, installment, overall design and after-sale maintenance in the integration of modern comprehensive import and export service.We're pursuing to be the most visible and valuable animal husbandry equipment
solution provider worldwide!
Our equipments have passed ISO9001:2008 Quality Management System Certification, SGS/SASO/
SONCAP Certificate.
We have our own production line so that we can control the quality very well.
Our equipment have been exported to Africa market (Sudan,Saudi Arabia,Algeria,Nigeria,Zimbabwe,South
Africa,Zambia,Mozambique...),Asia market(Uzbekistan,Pakistan,Philippines,Indonesia...),Middle East
market (UAE,Lebanon,Qatar,Palestin...),South America market (Columbia,Honduras,the Dominican
Republic,Costa Rico,Paraguay...), Oceania market(Austria,Fiji...) and have high market reputation by good
quality and excellent service.
We're devoted to provide good quality products, bert service with competitive price for every our
client and hope to develop tegother with you!

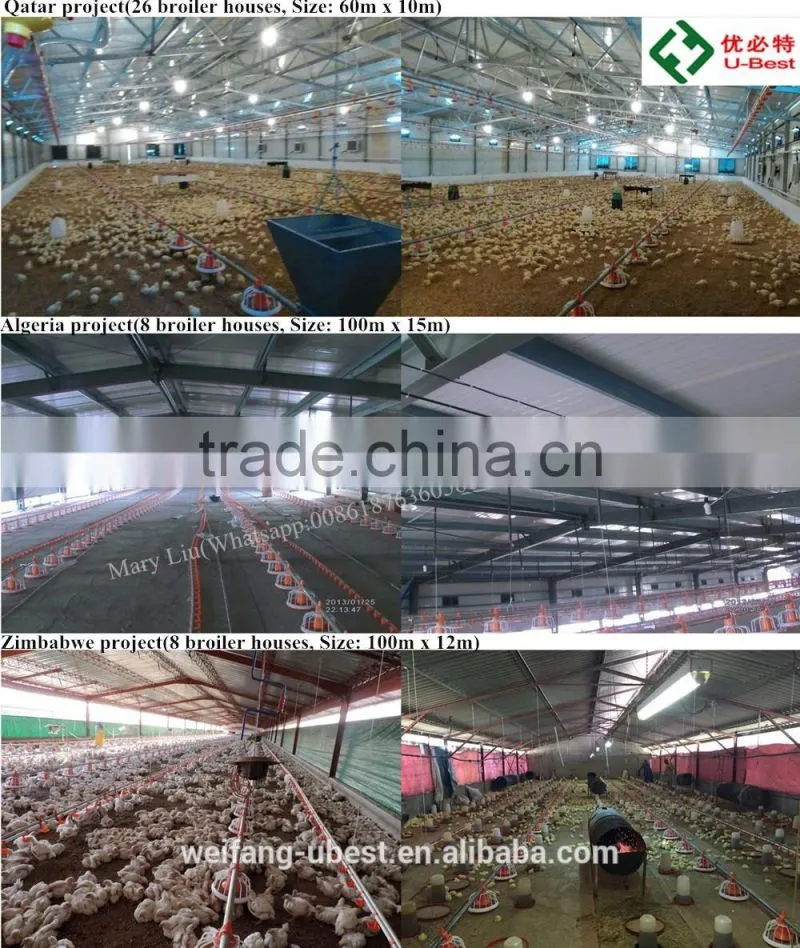

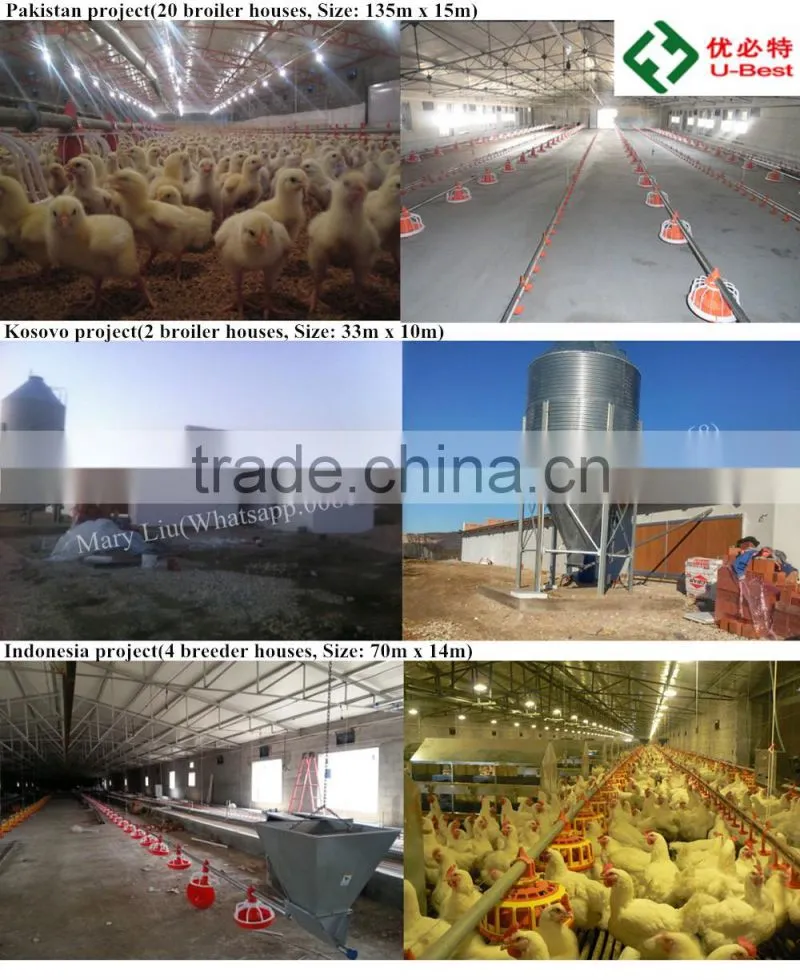

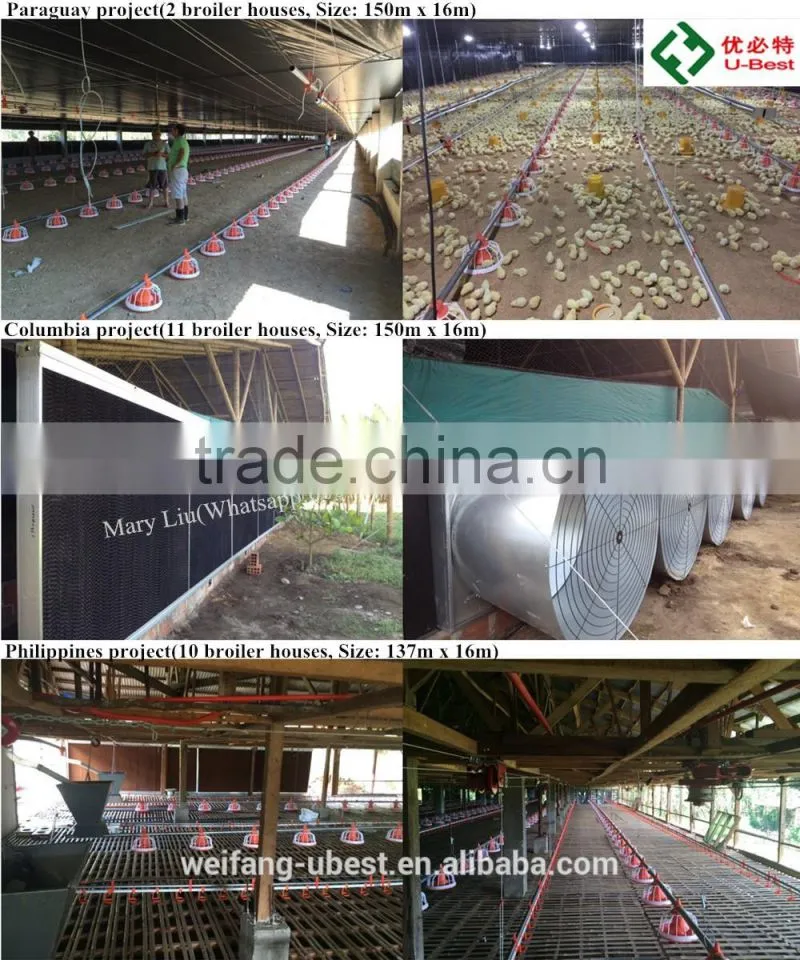

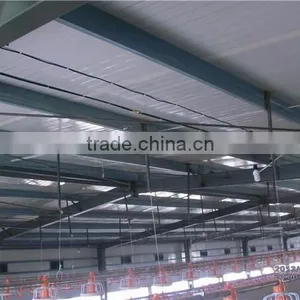

Application cases of our steel structure poultry house:
