Prefabricated chicken poultry broiler house and automatic equipment

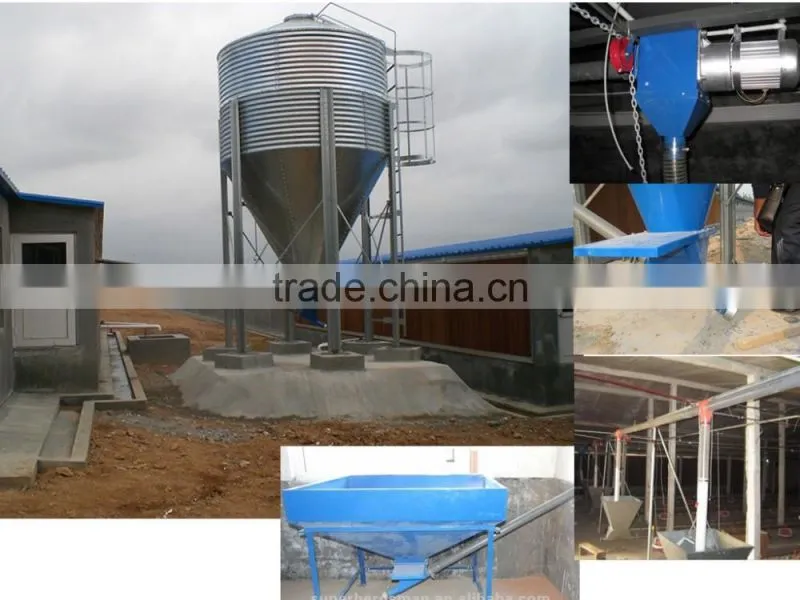

1.Main feed line system:
Main feed line system consists of a driving device ,a forage tower,a conveying pipe ,an auger and a material level sensor.the main stocking line system is mainly used to convey feed from the forage tower into the hopper of the feeding line and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of main stock line system.
1.high-quality special driving reduction
Power:0.75kw, voltage:380v,frequency:50hz,three-phase AC current.
2.feeding system
Diameter of conveying pipe:75*3.6mm,material:PVC
Helical spring auger from south Africa,feeding ability:1.400kg/h.maximum
Conveying length:60m
Radius of bending pipe:R 1500(inclination angle 30 degrees)
3.material level sensor from Israel.
Time delay range 0 to 2hours.

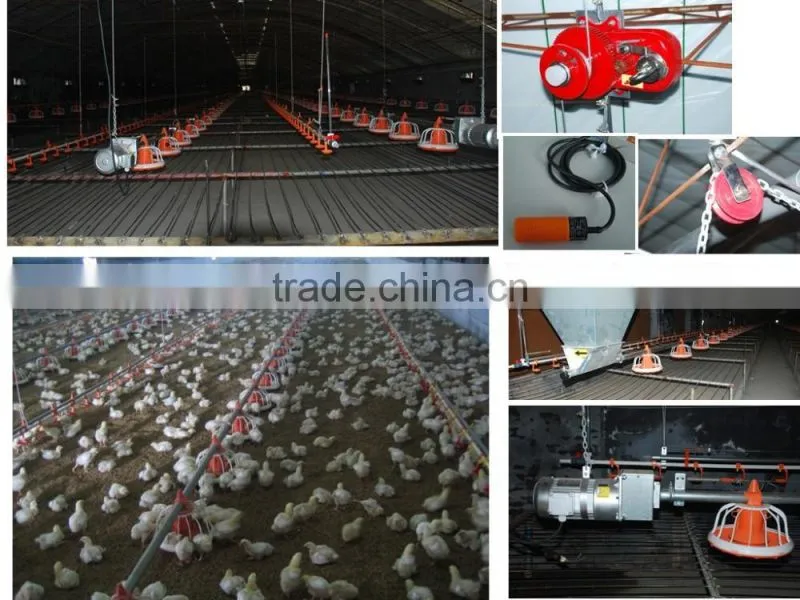

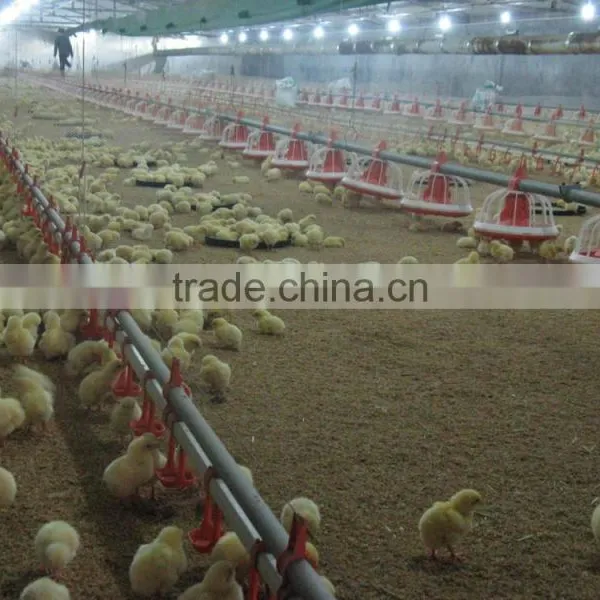

2.Pan feeding system:
Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.
The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of feeding line system.
1.high-quality special driving reduction motor
Power :0.75kw,voltage:380v,frequency:50hz,three-phase AC current
2.V-shaped Bin(with hopper)
Bin volume:115L,hopper volume:38L
Material:hot-dip galvanized sheet
3.feeding system
Diameter of conveying pipe:45mm
Material :hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity:450kg/h
4.Material level sensor from Israel:time delay range 0to 2 hours.

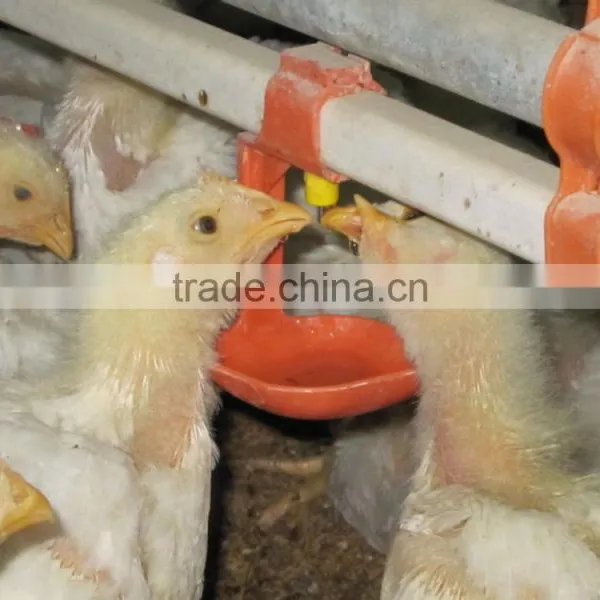

3.Nipple drinking system:
This main function is to deliver certain pressure water to drinking pipe,the water will flow out when automatically broilers touch the nipple,so as to meet the function of drinking water automatically.
Imported waterline:
1.waterline comes from European technics ,every nipple has to pass the tests before delivery,so it will never leak..
2.Nipple is easy to be dismounted and replaced.
3.It can meet the drinking requirement of chicken more appropriately.

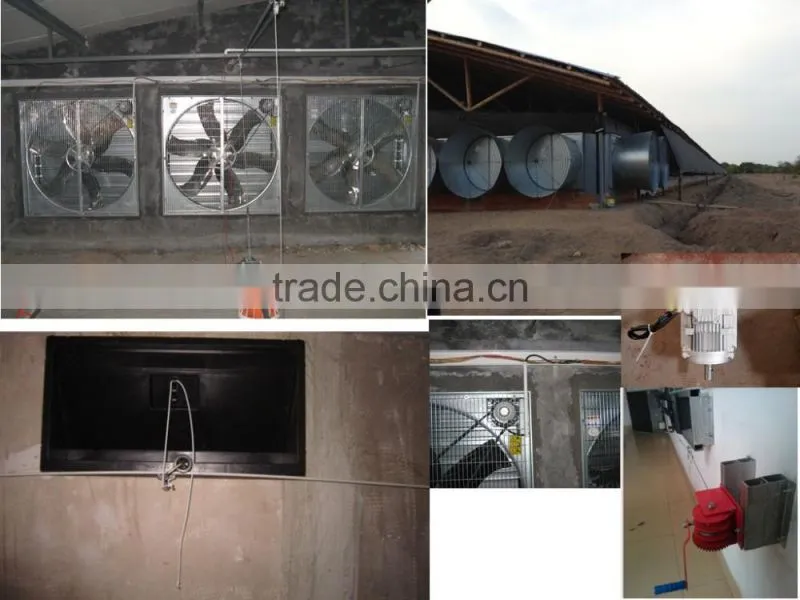

4.Ventilation system:
Include:50’’fan,36’’fan and air inlet.
Air inlet window component:
* With UV resistant additive,air inlet has stronger anti-aging ability,longer service life.
* The unique structure on window edge making it more closely and firmly.
* Wind deflector can prevent cold wind blowing down,make the fresh air blow in the center of chicken house,which ensures a better ventilation effect.
* Double spring ensures excelling sealing.
* Flexible opening with anti-bird nets.
*Manuel control:Operater will check the pressure of chicken house,control the winch by hand until meet the request.

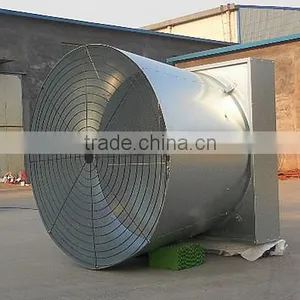

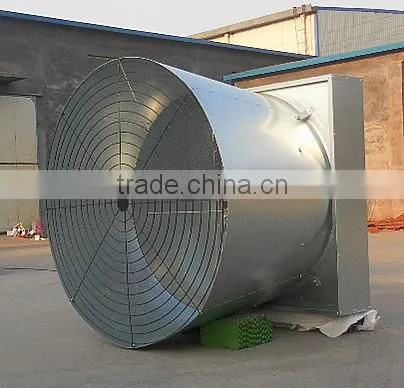

Butterfly Cone fan:
Features:
* Design of butterfly door makes a minimum wind resistance and opimum performance.
* Belt:automatic tensioning device improves transmission efficiency and prolongs service life.
* Frame:high quality hot-dip galvanized steel sheet.
* Motor:Three-phase motor with 3c certification,high efficiency and energy-saving,safe and reliable.
Axial flow fan:
Belt's automatic tensioning device improves transmission efficiency.
The phenomenons of belt elongation and skid during usage bring big harms to fan,such as a shorter belt's service life,a smaller transmission efficiency and air capacity,and loss of energy.

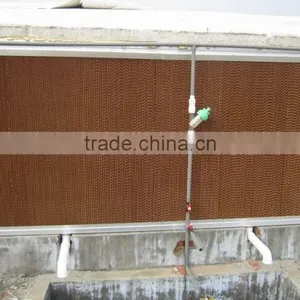

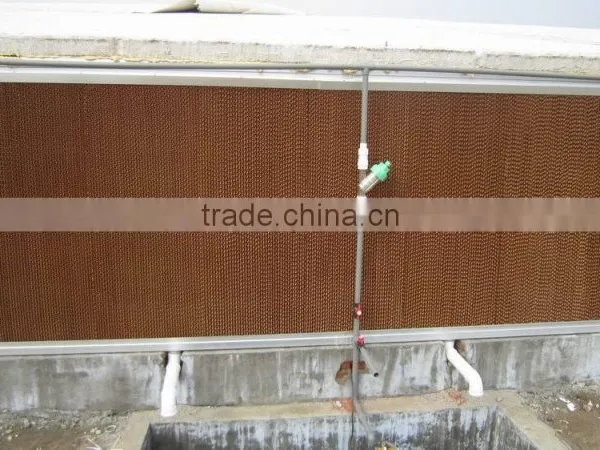

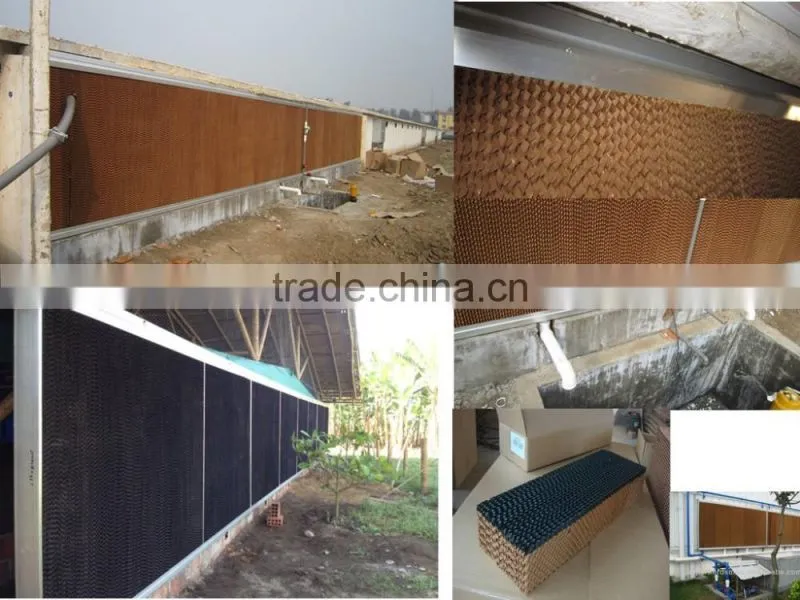

5.Cooling pad system:
Cooling pad -fan the longitudinal ventilation cooling combination is most economical and effective summer cooling combination of the hen house.
Cooling pad parameters:
Thickness specification:100mm/150mm
Width specification:300mm/1960mm/2160mm
Height specification:1660mm/1960mm/2160mm
Outer frame:galvanized sheet and aluminum alloy,rust prevention treatment.
Aluminum alloy frame:high strength,good corrosion resistance,even water distribution,compact structure beautiful and practical
Installation and layout of cooling pad and the fan are alway oppositely arranged,and the cooling pad is installed on the wall surface facing monsoon wind.

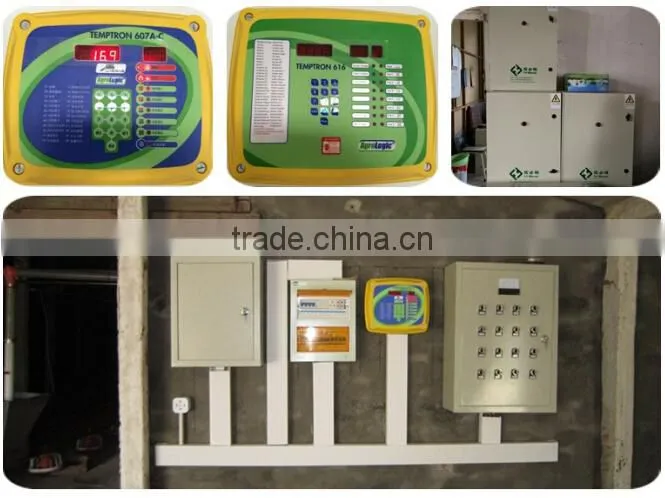

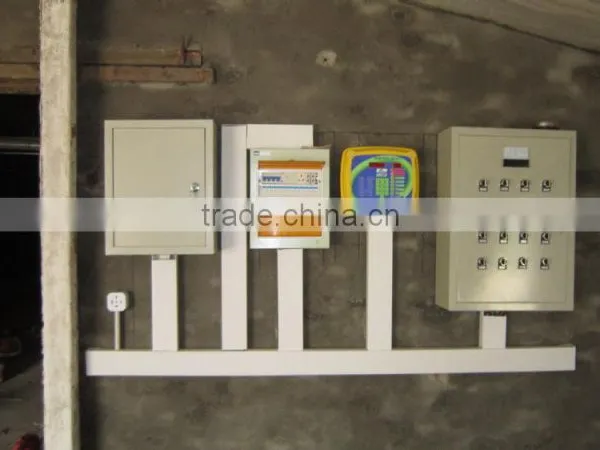

6.Automatic environment and power control system:
Have four sets:T607,T610,T616,MR6616 ,T series are imported from nology have advanced international level,on small environment control.
Environmental control system advantages:
1. Climate controllers reliable,user friendly micro controllers especially designed for broiler house
2.Has built 8 in relays for alarm output,heater,5 groups of fan,cooling equipment
3.LCD screen makes the computer and user communicate easily.User could input data to program the micro Computer
4. Several relays there.You could add relays to control more equipment
5. Available to control heating,ventilation,cooling,air inlet
7.Spraying and disinfecting system:
It effectively cools,humidifies,dedusts and disinfects the chicken house.
Characteristics:
1.has quick refrigeration and not damp.
2.Large flow,high pressure,good atomization,and corrosion resistance.increase the humidity to the preset range according to the requirements-60-70 percent of the maximum relative humidity
3.Effectively prevent the dust,and reduce respiratory diseases of livestock and poultry
4.Disinfect with chickens.

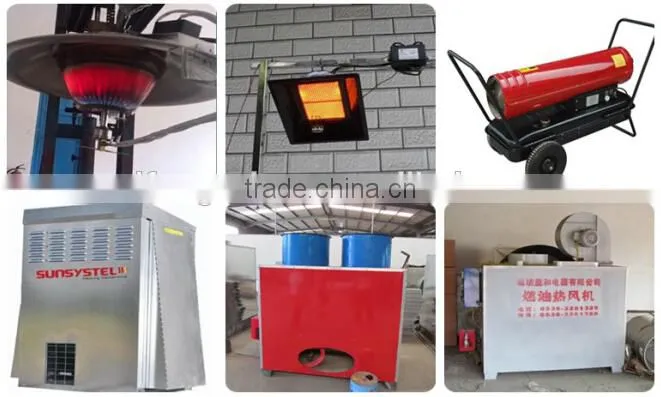

8.Poultry heating system:
Can improve temperature of poultry house quickly,ensure poultry house have a suitable temperature .
U-Best company service:
1. Quotation within 24hours after getting your reply!
2. Advise the most economic equipment -setting way for your chicken house!
3. All the production will be finished within 20days after getting order!
4. All the shipping documents will be expressed after shippment!
5. Always available to offer guide about installation or raising chickens!
For detailed information,please don't hesitate to contact us!We are always ready to provide our best service for you!The customer is always right!
