Automatic Broiler Chicken Farm Equipment For Poultry Shed
- 1000 Set / Sets per Month
- Qingdao Port China
- T/T D/P D/A
- High quality Plastic Pigeon Feeder with Best Price
- Flexile cattle sheep feeder trough automatic livestock feeders
- Aquaculture Equipment electric fish farm feeder fish feed throwing machine for aquaculture farms
- automatic chicken drinker automatic poultry drinker
- chicken feeder poultry feeder automatic poultry feeder
- Hot sale floating fish feed extruder machine fish feed making machine floating fishg feed mill pellet extruder machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | U-Best Broiler Chicken Farm Equipment | Model Number: | UBT-012 Broiler Chicken Farm Equipment |
Product Description
Broiler Chicken Farm Equipment For Poultry Shed Broiler Chicken Farm Equipment
Brand Brand Brand: U-Best
We are professional manufacturer and supplier of Broiler Chicken Farm Equipment in China. What we could do for you includes the following:
A. Produce and supply first-class poultry equipment;
B. Select location of poultry house;
C. Poultry house design and construction preparation Guidance;
D. Breeding workers training;
E. Poultry equipment installation;
F. After-sales service
What you need to provide for us to make a good offer for you:
1. How many broilers do you plan to feed?
2.Is the area of your poultry house confirmed, including the length,width and height?
3. what's your raising period and the final weight for sale in market?
4. where is your poultry farm located in, in which country? How about the climate there, temperature and humidity rate..?
Broiler Chicken Farm Equipment consists of:
1. Main stock line of silo/manpower hopper system
2. Automatic pan feeding system
3. Automatic nipple drinking system
4. Automatic ventilation system
5. Cooling pad system
6. Environmental and Power control system
7. Spraying and disinfecting system
8. Heater

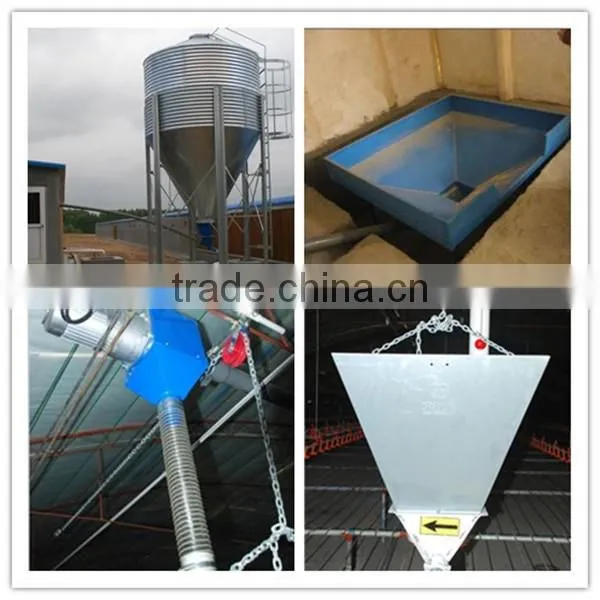

1.Main stock line of silo/manpower hopper system
Main feed line: silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
Silo
Model | Volume | Height(no foundation) | Diameter |
UB-4.0(1802) | 6.2M3 | 4.9M | 1.833M |
UB-7.3(2701) | 11.2M3 | 4.5M | 2.75M |
UB-10.6(2702) | 16.4M3 | 5.68M | 2.75M |
UB-14.0(2703) | 21.6M3 | 6.8M | 2.75M |
UB-20.8(3602) | 32M3 | 6.9M | 3.667M |
UB-27.3(3603) | 42M3 | 7.9M | 3.667M |

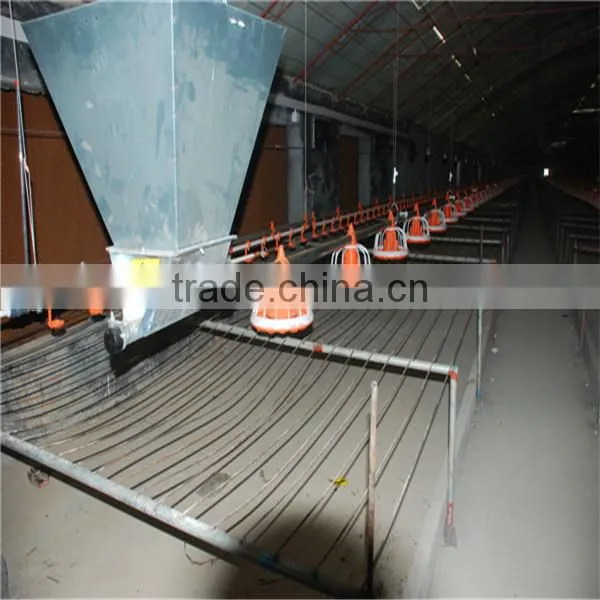

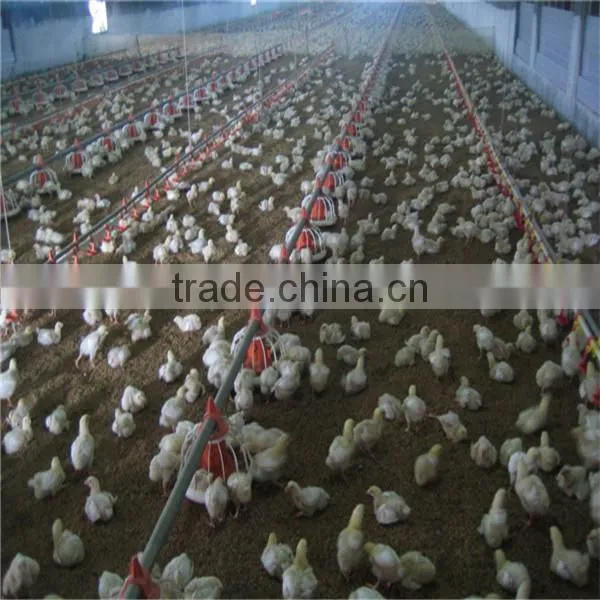

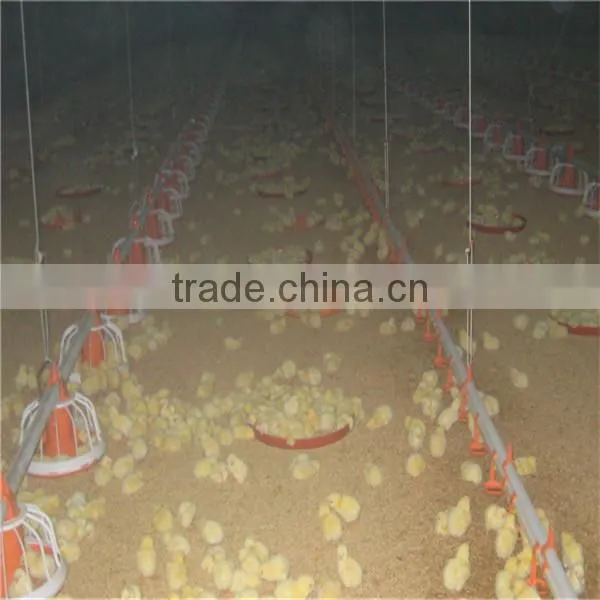

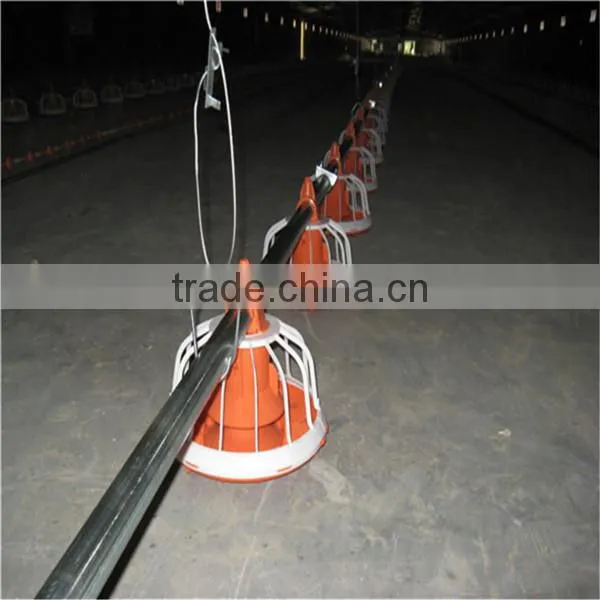

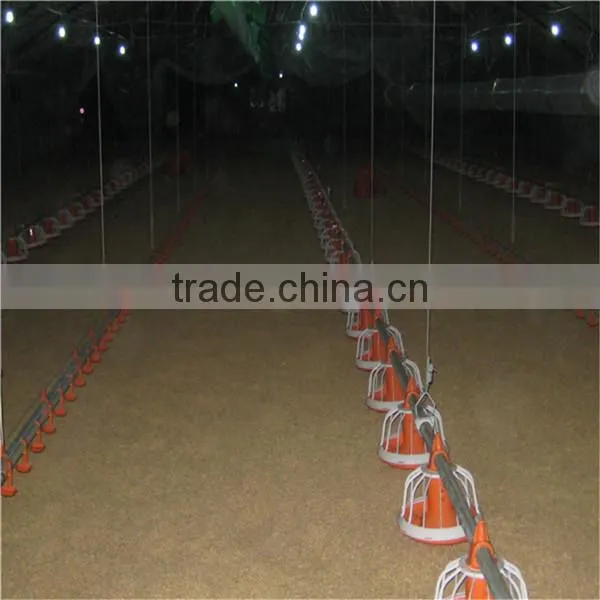

2.Automatic pan feeding system
Automatic pan feeding system consists of a driving motor, a hopper, a conveying pipe, an auger, feed pan, a suspension lifting device, an anti-perching device and a feed sensor.
Performance Parameters:
1.Driving Motor:high-quality special driving reduction motor,China Taiwan motor and European motor for your choice |
Power:0.75KW/1.1KW/1.5KW; Voltage:220V,380V,others; Frequency:50HZ,60HZ; Phase:1-phase,3-phase. |
2.V-shaped bin with hopper |
Bin Volume:115L, Hopper volume:38L Material:hot-dip galvanized sheet |
3.Conveying Pipe |
Diameter:Φ45mm; Material:hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2 |
Auger Helical spring auger imported from South Africa, Feeding ability:450kg/h Maximum conveying length:140m |
4.Feed Pan |
Pan distance: 4 pans/3 meters ,3 pans/3 meters. Material:PP Diameter:360mm×360mm |
5.Feed Sensor |
Imported from Germany; time delay range 0 to 2 hours. |
6.Hanging System |
7.Anti-roost System |
3.Automatic nipple drinking system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Poultry Nipple Drinking System consists of:
(1) Front Part of Drinking System
(2)Water Pipe Installed With Nipple Drinkers
(3) Pressure Regulator
(4) Water Display Level Pipe
(5) Lifting and Suspension System

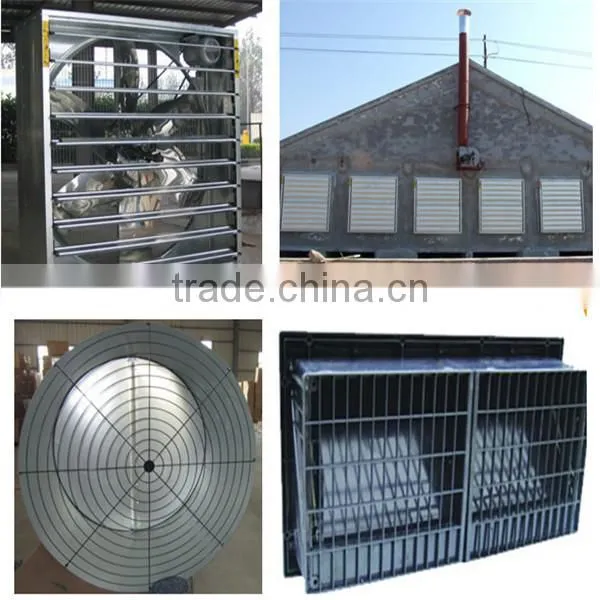

4.Automatic ventilation system
This system controls climate conditions,fresh air,humidity and temperature in poultry shed.It is vital for growing birds,including air inlets,axial flow fan and butterfly cone fan for your choice
36” Box Fan | |
Air capacity | 20800m3/Hr |
Size | 1000×1000×450mm |
Noise | ≤64DB |
Power | 0.4KW |
Voltage | 220V/380V/others |
Electric Current | 1.6A |
Weight | 66KG |
| |
50” Box Fan | |
Air capacity | 43070m3/H |
Size | 1380×1380×450mm |
Noise | ≤65DB |
Power | 1.1KW |
Voltage | 220V/380V/others |
Electric Current | 2.8A |
Weight | 88KG |
| |
50” Butterfly Cone Fan | |
Design of butterfly door makes a minimum wind resistance and optimum performance | |
0.75KW 3 fan blades | Air capacity: 41525m3/h Fan blade made of Krupp stainless steel from Germany, high stability |
1.1KW 6 fan blades | Air capacity: 49452m3/h Fan blade made of Krupp stainless steel from Germany, high stability |

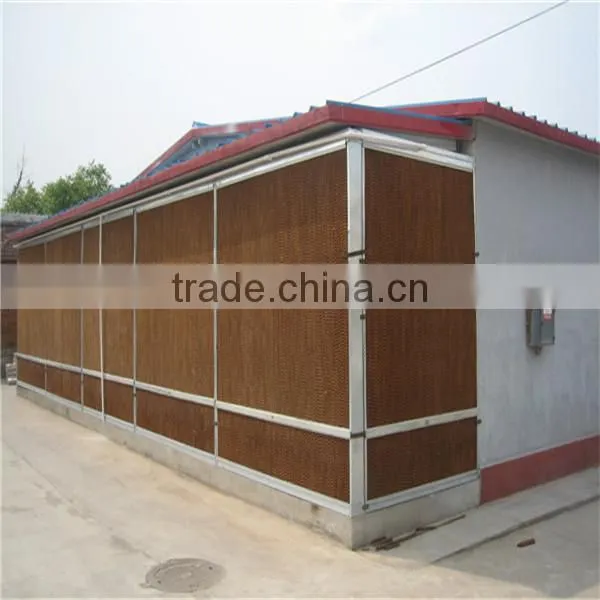

5. Cooling pad system
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Parameters:
Color: black, yellow
Thickness specification: 100mm, 150mm
Width specification: 300mm, 600mm
Height specification: 1660mm, 1960mm, 2160mm
Outer frame: aluminum alloy, high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.

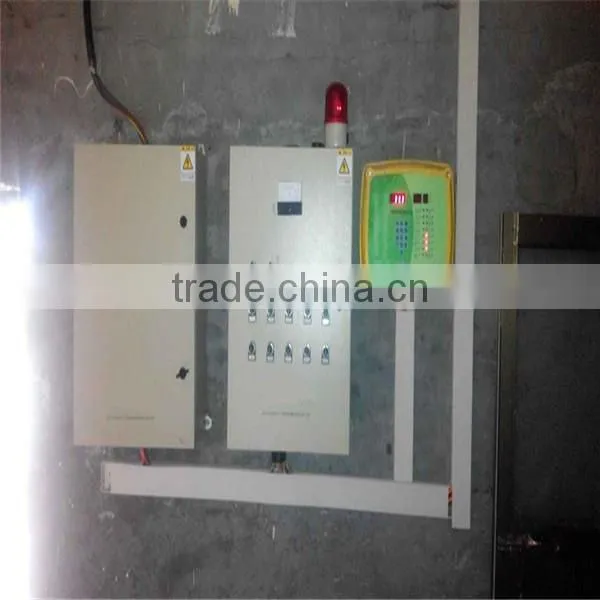

6. Environmental control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens.It is imported from Israel which can set an optimum working mode according to the local climate and raising environment.

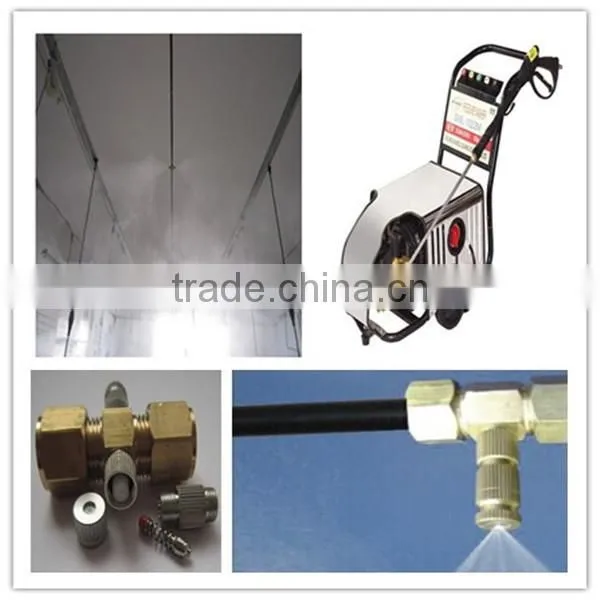

7. Spraying and disinfecting system
This system effectively cools, humidifies, remove dusts and disinfects poultry house(temperature could be quickly reduced by 3-8 degrees centigrade within a few minutes)
A. humidification: increase the humidity to the preset range according to the requirements - 60~70% of the maximum relative humidity.
B. cooling: cooling poultry house by 3~8 centigrade within few minutes.
C. disinfection: add disinfectant into water source of spraying and fogging system, then fogging system could disinfect the chicken house.
D. washing: the Spraying Machine could also do wash for chicken house.

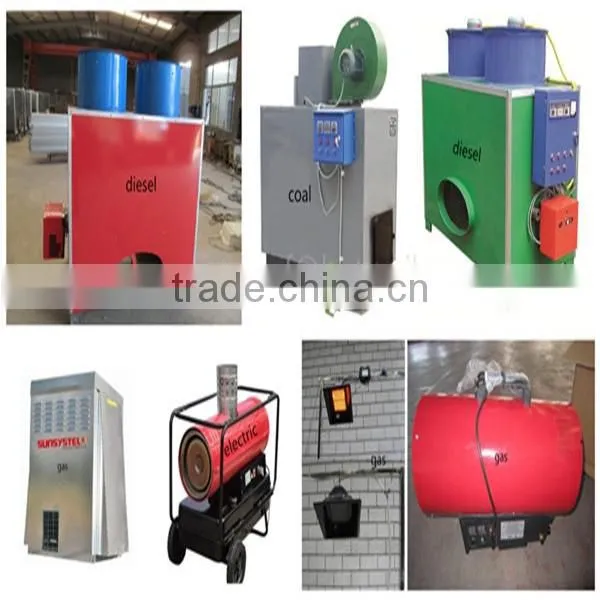

8. Heater
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Hot-blast heater of coal and diesel, poultry gas heater, infrared gas brooder and fan-heater of gas/diesel, 4 different kind at your option.

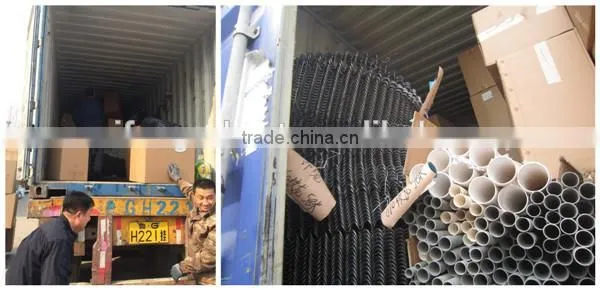

Packaging and Shipping
Standard export package of broiler chicken farm equipment for export is in container. Shipment in 15 days after the order confirmation.
1. silo: disassembled, spare parts in carton box, galvanized sheet in bunch and in bulk;
2. feeder: feeder pan in carton box, feed pipe in bunch in bulk;
hopper in bulk;
3. water: PVC pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;
4. fans: disassembled way or assembled way;
5. air inlet: carton box;
6. cooling pad: assembled with aluminium frame, or disassembled;
7. heater: in carton box;
8. fogging system: spraying engine in carton box;
9. enviroment control: In carton box.
Company Introduction:
Weifang U-Best Husbandry Equipment Co.,Ltd
We are professional manufacturer and supplier of broiler chicken farm equipment in China!
Our equipment has passed ISO9001:2008 Quality Management System Certification!
We have our own production line so we can control the quality very well! Our poultry equipment has been exported to more than 40 countries and have good market reputation!
We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.
Welcome to contact Ms. COCO in U-Best company!
