chicken house broiler rearing equipment
Main System for broiler rearing equipment: | |
Name |
Main Function |
1.Main feeding system |
Convery feed from silo or main feed hopper into feedling line hopper automatically |
2.Vice feeding system |
Convery feed into feeder pan automatically |
3.Nipple drinking system |
Supply clean water to each nipple steady, chicken can drink water from 360 degree freely |
4.Ventilation system |
Make chicken shed keep suitable temperature for different stage chicken |
5.Environment control system |
Setting suitable climate situation according to different stage chicken requirement, through control ventilation fans, airlet and cooling pad's on /off to control the chicken climate automatically. |
6.Cooling system |
Make chicken house tempeture come down quickly |
7.Spraying system |
Clean chicken house, chicken house disinfetion |
8.Heating system |
Warm chicken house |

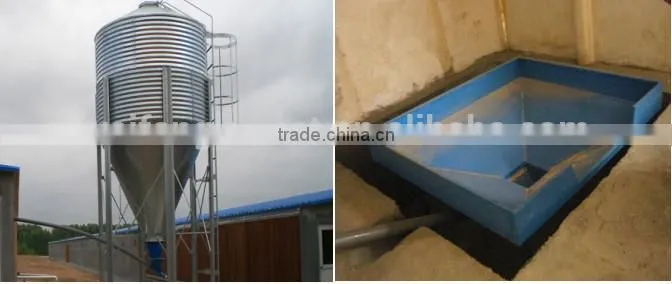

1.Main feed line system:
Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line
which controls motor on and off to achieve automatic feed delivery.
Silo Parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
--- |
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
--- |
--- |
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |

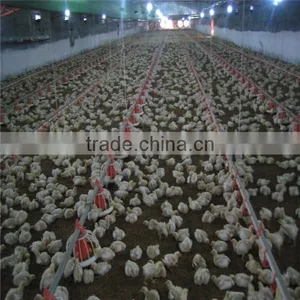

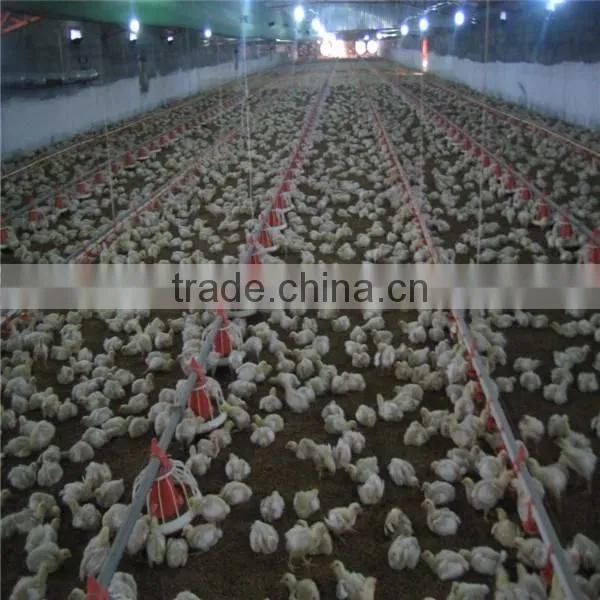

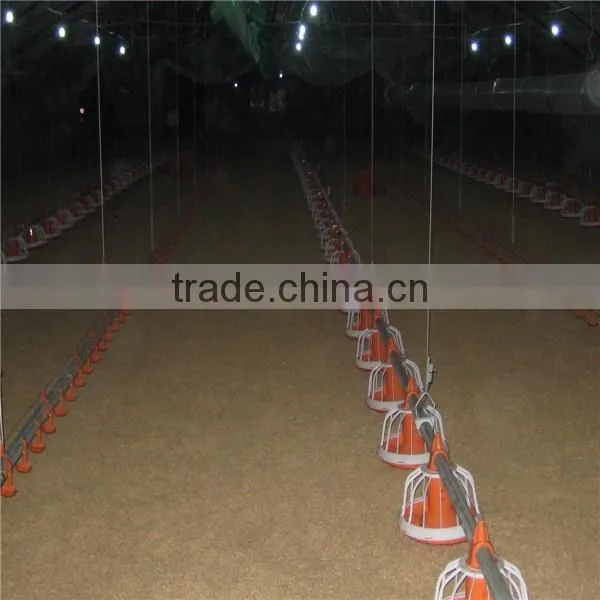

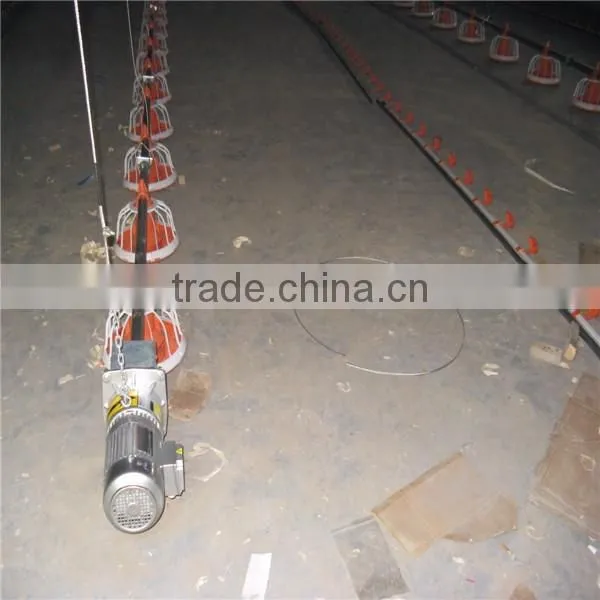

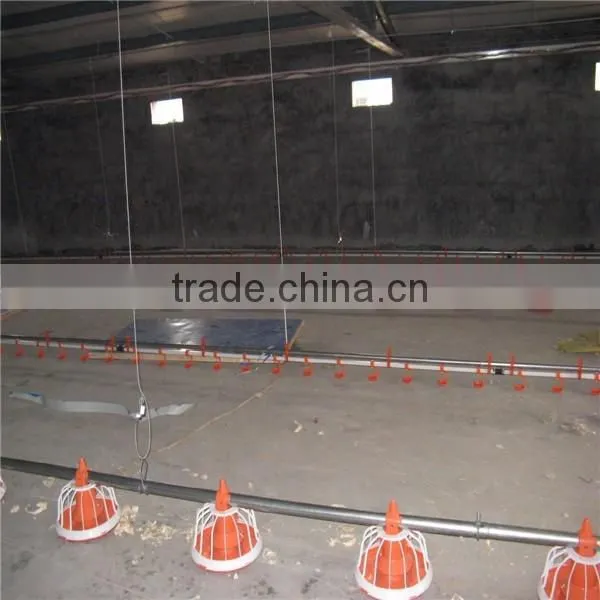

2.Automatic Pan Feeding line system:
Main components |
Fartures&Function |
Vice hopper |
hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional). |
Feed bolts |
Interface diameter is 45mm, including galvanized grid |
Feed pipe |
double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option) |
Helical auger |
Imported from South Africa |
Feed pan |
16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. |
Control pan |
Including imported feed sensor, High sensitivity |
Suspension system |
Consist of steel wire rope, nylon rope, clips,winch,pulley,etc. |
Driving motor |
Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V, Frequency:50hz/60hz, three phase/single phase |

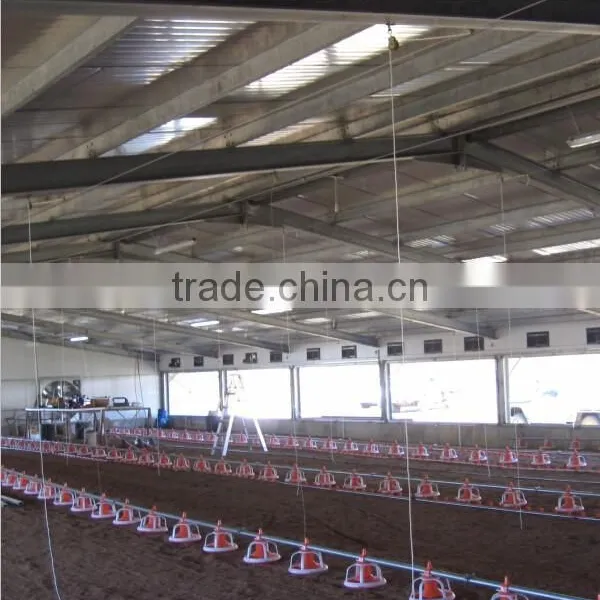

3.Automatic nipple drinking line system:
Main components |
Fartures&Function |
Front part of watering system |
Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |
Nipples with drip cup |
3m/12nipples ,3m/15nipples are optional |
Lifting and suspension system |
Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
Water display level tube |
Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
Pressure regulator (Double barreled with large flow capacity) |
Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
Doser (French Dosatoran) |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |

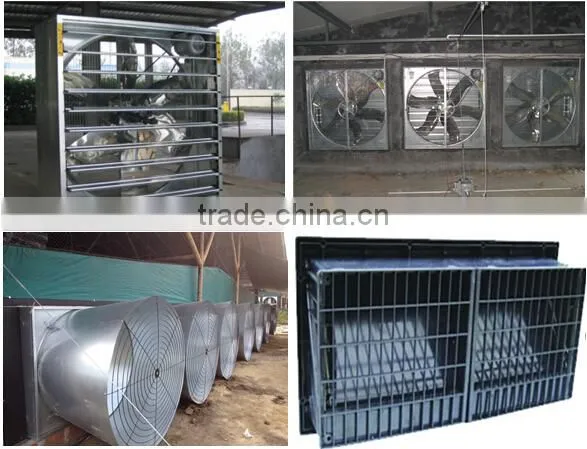

4.Automatic ventilation system:
This system controls climate conditions,fresh air,humidity and temperature in poultry shed. It is vital for growing
birds,including air inlets,exhusat fans for your choice.

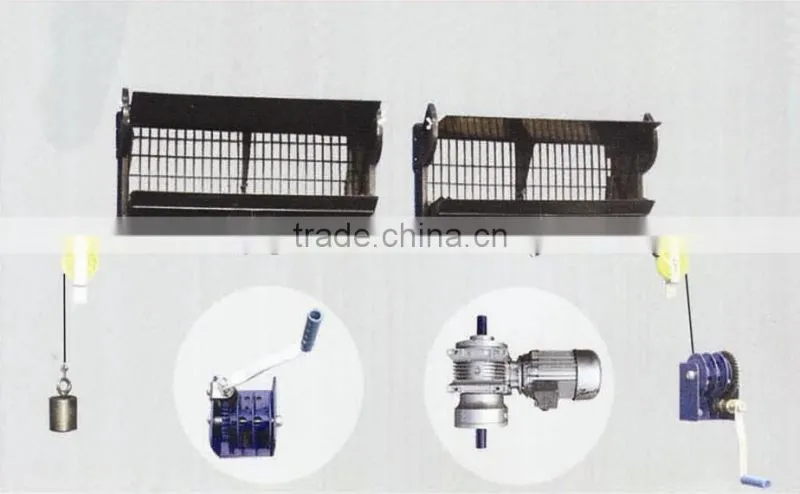

Airinlet window parameters:
1).The wall of installed windows must keep the same level.
2).Within 15cm below the window must be soild wall which could be fixed with eapansion bolt, hollow
brick not available.
3).To prevent water flow backward, the window hole of inside is higher than outside.
4).Pre-embedded wood frame is same level with inside wall of chicken house.
5.Cooling pad system:
The longitudonal way of cooling-fan ventiliation is the most economical and effective way to reduce temperature
of chicken house in summer.
Advantages: Hygroscopicity, Dry solution, Non-porous surfaces.
6.Spray & disinfecting system:
Function:It is effectively tools for cooling, damping, dedutsing, disinfecting the house.
7.Environment control system:
1).Environment controller: Israel T607, T616, Image II/China brand UBT-2000 are optional.
For example of T607, it has 8 outputs for fans,heaters, cooling pad alarm,2 outputs for regulating fans
speed and lighting system, 2 output for alarm of feed and water, minimum ventilation curve and temperature
reduction curve are built inside T607 for reference.
2).Power distribution box: UPS power outage alarm is including,the alarm function is that, for example,
the motor for feed line get trouble. it will trip, responsible for that part of the motor feed line gate will jump,
does not effect other part's running.
3).Main power box: receive the signal from T607 (or other controller) and sends signal to vice power control
box, the vice power control box will executive action.
8.Heating system /Heaters:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.
Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.
To give you a reliable price, please let us know:
1).Chicken shed Size: (length×width × height) or chicken quantity you plan to raise?
2).Your voltage, frequency, single phase or three phase?
3).Weight of chicken when you sale to the market?
4).Types of chicken: broiler, breeder or layer?
5).Types of breeding: in cages or on the floor?
Advantages about broiler rearing equipment:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chicken living rate.
3).High quality to ensure non stopping running of your houses.
4).Comparitively cheap price.
5).automatic poultry farming equipment.
Good services of broiler rearing equipment:
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.

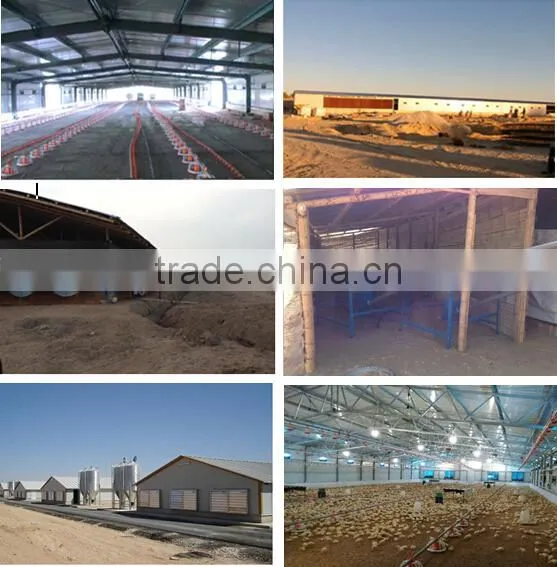

We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1, we
are the best and the most reliable supplier in this area, our company also have exported to Sudan, Saudi Arabia,
Algeria, Nigeria, Zimbabwe, Mozambique, South Africa,Tanzania, Zambia,
Taiwan,Philippines,Indonesia,Pakistan,Uzbekistan,UAE, Lebanon, Qatar, Palestine, Kosovo, Peru, Columbia,
Honduras, Dominica Republic,Paraguay, Costa Rica, Australia, Fiji…All get good feedback.In addition, our company
is recruiting global agents, welcome you to join us with our utmost and warm expectation.If you need more specific
information, please contact us , we will provide you professional and detailed solving plans.
U-BEST Husbandry Equipment Co,.Ltd is located in the cultural World kite capital, Weifang, China, where
enjoys convenient access to major transportation networks. Our company specializes in the collection of animal
husbandry equipment research& development, manufacture, sales, installment, overall design and after-sale
maintance in the integration of modern comprehensive import and export service.
We are pursuing to be the most visible animal husbandry equipment and solution provider worldwide.
Please feel free to contact us more details about broiler rearing equipment!
