Breeder poultry house equipment/chain feeding system
(Brand: U-Best)
The parent breeders are the birds that produce the fertile eggs that will become the broiler chickens that
are harvested for meat.
The three main steps and stages in the whole broiler production process are:
- Rearing and managing broiler breeders (the birds that produce eggs for hatching into broiler chicks);
- Fattening of broiler chicks ;
- Marketing and processing of finished broiler birds.
Breeder equipment:
Advantages of our breeder equipment:
1. Save time and labor, one person is enough for one chicken house;
2. Increasing chicken survival rate;
3. Automatically control your chicken house environment;
4. High quantiy to ensure nonstopping running of your houses;
5. Competitive price.
6. 15-year service life.
Details for poultry chain feeding system:
| Parts&accessories | Specification |
| Driving motor | use cycloidal-pin wheel reduce device, more stable and reliable convey feed equality, reduce noice than toothed wheel |
| Feed trough bracket and connection | They are liftable. We can adjust their height according different breeding stages. Bracket surface use hot galvanized process, anti-corrosion, more suitable for poultry house environment. |
| 90 degree corner wheel | The wheel is after special hardening process, alloy bearing don't need oiling, have good wear resistance and long service life. |
| Feed trough with chain inside |
Trough: made of wear-risistant and anti-rust material, have 44mm wide limited food grill, which can separate the hens and roosters apart effectively, the limited food grill distance can also be customized. Chain: imported from South Africa, have strong feed delivery speed, can reach 36m/minute. |
| Hopper | We have 260Kg main hopper and 100Kg vice hopper, they are made of high quality galvanized sheet, there is cover plate between hopper and trough interface, which is easy to adjust the height of feed level and to prevent feed spill. |
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦

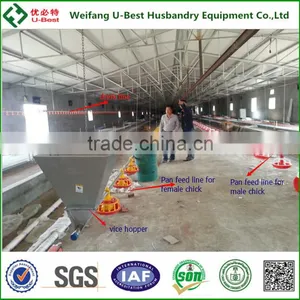

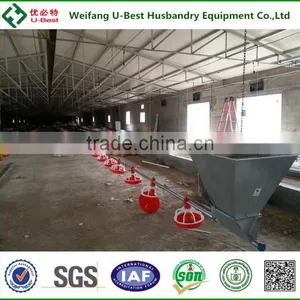

Details for Pan Feeding System:
| Parts&accessories | Specification |
| Driving motor |
Power: 0.75Kw/1.1Kw Voltage: 380V/220V/others, Three-phase, Single-phase Frequency: 50Hz/60Hz |
| Vice hopper |
Size: 70Kg, 90Kg Material: hot-dip galvanized sheet, thickness: 1mm |
| Feed pipe with auger inside |
Feed pipe: Material: hot-dip galvanized steel pipe with zinc coating of amount—more than 275g/m2 Diameter: 45mm Auger: Origin: South Africa Feeding ability: 400Kg/h |

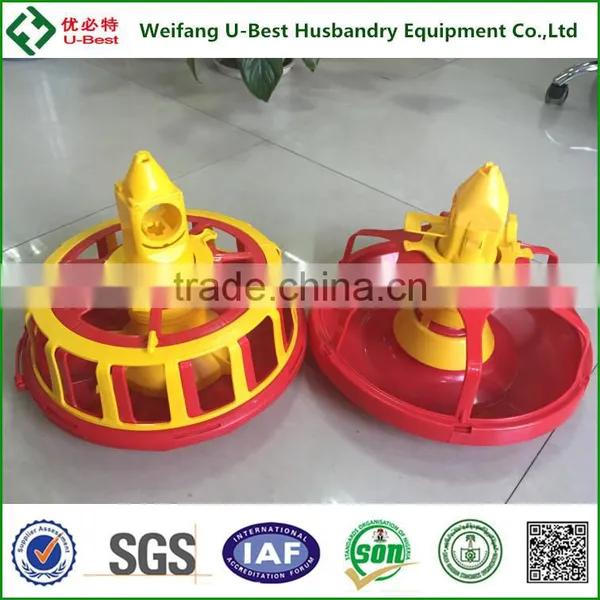

| Feed pan for females/males |
Feed pan for females: 1). 4 pans/3 metres or 3 pans/3 metres; 2). Feed pan diameter: 360mm; 3). Material:pp---Polypropylene; 4). Feeding capacity: 12.5 birds/pan; 5). 16 grills width of 40-52mm divide into 11 files, suitable for all stages breeders (including day-old birds) feeding needs; 6). Feed hole height of 70mm,80mm,90mm three files. when feed hole width is 52mm, height is 80mm, chicks can in&out freely; 7). Feed pan capaicty: 16 grades(gears), which can meet different stages chickens eating demands; 8). Pull switch design, easy to switch each pan; 9). Bottom of the pan can be hanged, easy to take down, convenient to install and wash. Feed pan for males: 1). 4 pans/3 metres or 3 pans/3 metres; 2). Feed pan diameter: 360mm; 3). Material: high quality pure engineering plastic. 4). Feeding capacity: 8-9 birds/pan; 5). With 9 grilles design, there are still intake hole after supplementing male breeders. 6). The fixation clamp can prevent feed pan swinging, so as to keep feed at the center of feed pan. 7). The adjusting ring at the top of feed pan can adjust the feed gears to the optumum position to reduce the waste of feed. |
| Feed sensor | When sensor doesn't touch feed, the motor will start working and convey feed, when sensor doesn't touch feed, the motor will stop working. |
| Suspension&lifting device | We can adjust the height of feeding lines by winch. |
| Anti-perching device | This device prevent breeders from staying on the feed pipe for two long. |
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Details for nipple drinking system:
| Parts&accessories | Specifications |
| Waterline front system |
Front part is controller of water, which is usually installed in control room. *Pressure regulating valve: to make sure to supply stable water to drinking lines. *Filter: clean water and avoid blocking nipples. *Water meter: to measure water usage volume. *Doser/Medicator: add medicine to drinking system automatically to prevent disease. |
| Pressure regulator |
Regulating stability; High switching performance; Water supply is sufficient&equality; Recoil cleaning with good cleaning result,save time and water; Good quality movable valve, easy to change. |
| Nipple drink lines |
Nipple: The outside shell is made of high quality plastic, the inner rod is made of high quality stainless steel. a. All nipples are anti-corrosion, service life over 10 years. b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house. c. The nipple's rod can be movable in 360 degrees, easy to drink. d. Meeting drinking demand of different-period chickens. Drip cup: Single-arm design is more suitable for modern chicken raising idea. PVC square water pipe&galvanized supporting tube Drinking line specification: 15 nipples/3m, 12 nipples/3m Nipple drinker capacity: 8-10 breeders/drinker |
| Water display level tube | Use high transparency&impact resistant material, it's sturdy and durable, convenient to water water level. |
| Lifting&suspension system | Correct driking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken groiwth, also wast water. It's very easy to adjust the height by winch. |
Click to learn other systems for breeder poultry house:
| a. Ventilation system |
| b. Cooling pad system |
| c. Environment control system |
| d. Fogging system |
| e. Heating system |
| f. Curtain system |
| g. Slat system |
| h. Laying nests |
Please tell us:
1. Breeder poultry house size: Length×Width×Height of side wall;
2. Quantity of birds: female breeders and male breeders(seperately);
3. Poultry house location and local climatic condition like temperature.
4. Other information you think helpful.
