Female and male chick automatic breeder poultry house for floor breeding
Advantages for breeder poultry house for floor breeding:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chicken living rate.
3).High quality to ensure non stopping running of your houses.
4).Comparitively cheap price.
5).automatic poultry farming equipment.
Good services of breeder poultry house for floor breeding:
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
Before show you competitive price, please offer the following information:
1).Size: (length×width × height) or tell us the quantity of female and male chick you will raise.
2).Your local voltage, frequency, single phase or three phase.
3).Weight of chicken when you sale to the market (the rearing period, From - weeks)
4).Types of chicken: laying hens or broiler chickens
5).Types of breeding: in cages or on the ground
6).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.
1.Main feed line system(Silo or Manpower hopper):
Function: Main stock line deliver system is to transmit the feed outside shed to the hopper of
feeding system inside,control system indicates delivery system to work automatically.
Main parts of main feed line system:
1).Silo:Feed of chicken farm is stored in the silo, so as to save large amount of package,
and also to ensure the health of feed.

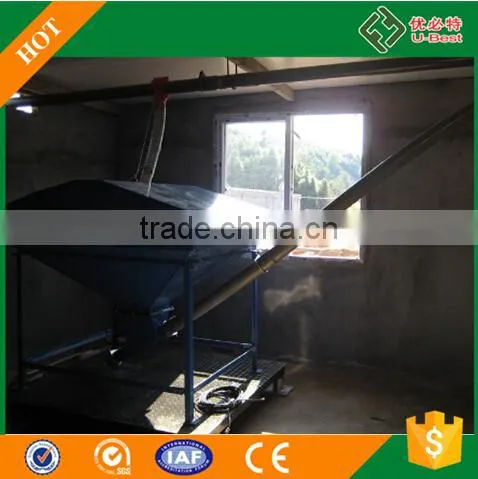

2).Manpower hopper:If you don't use silo, you can use manpower hopper.Usually,if you just
build one or two farm,we suggest you use hopper instead of silo.
3).Driving motor: Power:0.75kw,Voltage:380V/220V, or as your local request.Frequecny: 50hz/60hz.
4).Feed conveying: Diameter of feed tube:75*3.6mm, Material:PVC,
Spring auger from South Africa. Feeding ability: 1400kg/h.
5).Feed sensor: Germany IFM feed level sensor.

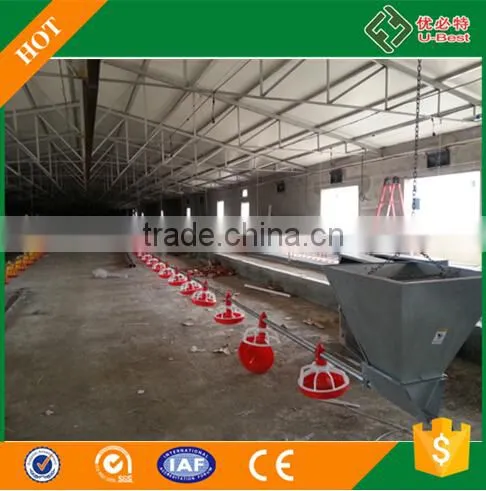

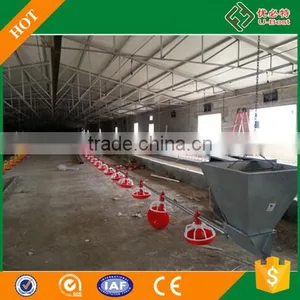

2.Breeder Pan Feeding line system:
Function:There is a feed sensor at the end of each feeding line which controls motor on and off to achieve
automatic feed delivery.
Main parts of automatic feeding pan system:
1).Feed hopper: Hot-dip douuble layer ga;vanized sheet, Capacity:70kg,90kg,120kg,150kg are option.
2).Feed pipe: double sided galvanized layer , diameter 45mm, 3m /pc ( 3-hole; 4-hole option).
3).Feed pan: female feed pan and male feed pan.
4).Spring auger: imported from South Africa.
5). Anti-perching system: prevent chicken to stand in the feed line.
5).Driving motor: Power:0.75kw,1.1kw, 1.5kw, according to your chicken shed length.Voltage:380V/220V,
or as your local request. Frequecny: 50hz/60hz, single phase/three phase
6).Suspension system: it consists of winch, pulley, fixing plate, steel wire rope and clamp.It's conventinent
to clean the chicken house and for chicken's in and out through adjusting feeding line height.
7).Feed level sensor: imported from Germany.
Female feed pan:
Male feed pan:

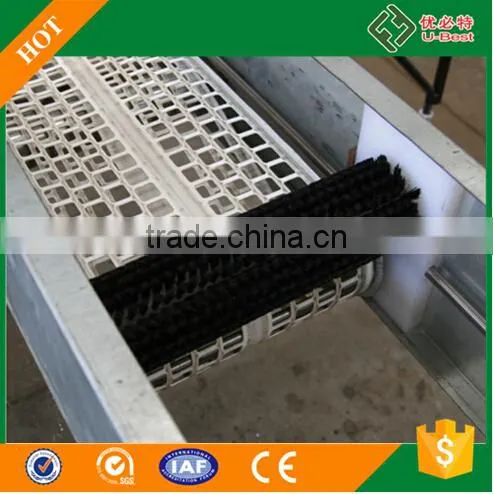

3.Breeder chain feeding system:
| Driving system | Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with mechanical reduction gear.Delivery speed reach up to 36m/min. |
| Feed through | Feed trough is made of anti-rust material, and grill with 44mm distance can effectively separate the male and female birds. Can also be customized according to customer specifications with different grill distance. |
| Hopper | Big hopper and vice hopper |
| Corner |
90 degree corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection.Compared |
| Feed cover |
In the interface position of feed box and feed trough, there is a feed cover plate to avoid feed overflow effectively . |
| Other accessories | chain, grid,bracket, connections,etc |

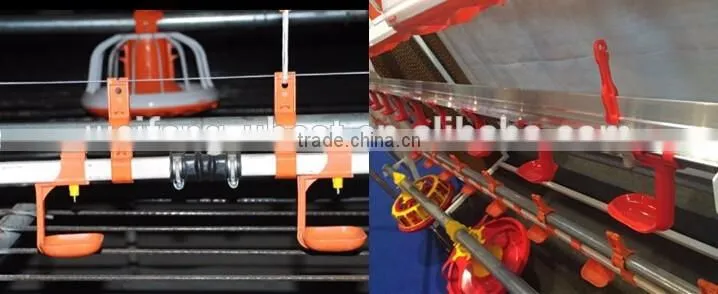

4.Breeder nipple drinking line system:
Function:Supply clean water to each nipple steady, chicken can drink water from 360 degree freely.
Main parts of breeder nipple drinking line system:
1).Front part of watering system: Adjust water supplying pressure and stabilizing drinking volume, this part
is usually installed in control system.
2).Water square pipe with nipples and drip cup:3m/12nipples,3m/15 nipples are optional.
3).Anti-perching system: prevent chickens stand on the water pipe.
4).Lifting and suspension system: Correct height for drinking system is very important for chicken(both higher
and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water
wasting), it’s very easy to adjust drinking system’s height if use this system.
5).Water dislay level tube: Use high transparency & impact resistant material, it’s sturdy and durable, and
convenient to watch water level. This device with advanced design, it’s very easy to take down and clean.
6).Pressure regulator: Regulating stability, high switching performance, water supply is sufficient& equality,
recoil cleaning with good cleaning result and can save time and water.
7).Medicator (French Dostran):
Can add medicine into drinking system automatically.
Don’t use power, it’s economic and reliable.
Accurate, after setting, it can adjust medicine volume according to water pressure change.
Its easy to control and maintain with good corrosion resistance.

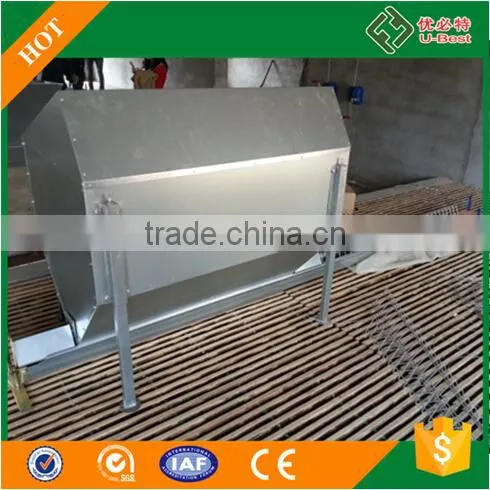

5.Breeder 12hole or 24 hole egg nest:
Function:
1). To adapt to any installtion of shed.
2).Disinfected thoroughly easy to avoid the spread of disease.

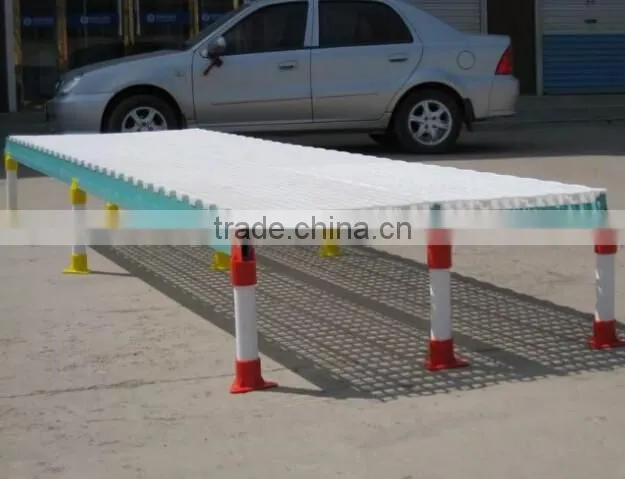

6.Breeder farm slat floor:
Advantage:
1).High manure leaking rate, to ensure the floor surface clean and dry.
2).provide a comfortable and clean space for chickens, reducing the chance of infection in chickens’ claw.
3).Reduce the chance of bacterial infection, improve hatchability.
4).Open architecture, installation and removal, simple and quick.
5).Anti-aging material, long life.
7.Breeder automatic ventilation system:
Function: Make chicken shed keep suitable temperature for different stage chicken.
Ventilation fan:
Specifications |
36" box fan |
50" box fan |
50" butterfly cone fan |
Flow amount |
20800 m³/h |
43070 m³/h |
49452 m³/h |
Size(L*W*H)(mm) |
1000*1000*450mm |
1380*1380*450mm |
1380*1380*1360mm |
Noise level |
≤64DB |
≤65DB |
≤65DB |
Power |
0.4kw |
1.1kw |
1.1kw |
Voltage |
380V |
380V |
380V |
Current |
1.6A |
2.8A |
2.8A |
Weight |
66kg |
88kg |
100KG |
8.Breeder cooling pad system:
Function: Make chicken house tempeture come down quickly.
Cooling pad parameters:
Thickness |
100mm;150mm |
Width |
300mm;600mm |
Height |
1660mm;1960mm;2160mm |
Frame |
Galvanized sheet and Aluminium alloy are optional |
Aluminium alloy frame |
High strength, good corrsion resistance, water distribution uniformity,beautiful and practical. |
9.Breeder spray & disinfecting system:
Function:Cooling, damping, dedusting, disinfecting the chicken shed.
Main components:
1).Spraying and disinfection engine:3.7kw main engine system with high pressure soft pipe and filter.
2).Spraying accessories:cooper tube,nylon pipe,spray bracket with two holes,ball valve, copper connector, etc.
10.Breeder environment controller:
Function:Setting suitable climate situation according to different stage chicken requirement,through
control ventilation fans, airlet and cooling pad's on /off to control the chicken climate automatically.
Main components:
1).Environment controller: Israel T607, T616, Image II/China brand UBT-2000 are optional.
For example of T607, it has 8 outputs for fans,heaters, cooling pad alarm,2 outputs for regulating fans
speed and lighting system, 2 output for alarm of feed and water, minimum ventilation curve and temperature
reduction curve are built inside T607 for reference.
2).Power distribution box: UPS power outage alarm is including,the alarm function is that, for example,
the motor for feed line get trouble. it will trip, responsible for that part of the motor feed line gate will jump,
does not effect other part's running.
3).Main and deputy power box: main power box will receive the signal from T607 (or other controller) and
sends signal to vice power control box, the vice power control box will executive action.
4).Lighting system

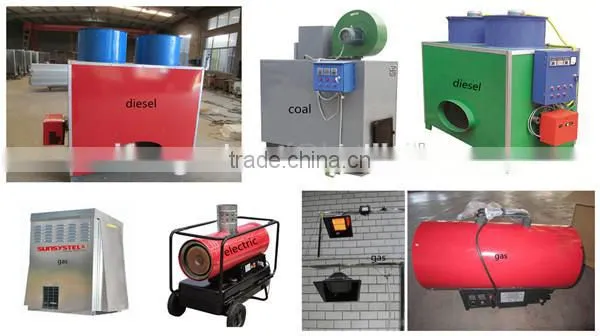

11.Breeder heating system /Heaters:
Function:Warm poultry shed to satisfy the temperature demand of baby chicks or whole chicken house.
Optional heaters:
1).Hot blast heater of coal or diesel: heat the whole chicken house,
2).Gas brooder: heat the day old chick.
3). Gas heater: heat whole chicken house, quantity needed are based on chicken shed area.
Company projects for breeder poultry house for floor breeding:
We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1, we are the best
and the most reliable supplier in this area, our company also have exported to Sudan, Saudi Arabia, Algeria, Nigeria,
Zimbabwe, Mozambique, South Africa,Tanzania, Zambia, Taiwan,Philippines, Indonesia,Pakistan,Uzbekistan,UAE,
Lebanon, Qatar, Palestine, Kosovo, Peru, Columbia, Honduras, Dominica Republic,Paraguay, Costa Rica, Australia, Fiji…
All get good feedback.In addition, our company is recruiting global agents, welcome you to join us with our utmost and
warm expectation.If you need more specific information, please contact us , we will provide you professional and detailed
solving plans.
Factory information for breeder poultry house for floor breeding:
Please feel free to contact us for more details about breeder poultry house for floor breeding.
