Breeder automatic feeding system
(Brand:U-BEST)
Good services--breeder automatic feeding system :
1).Free design for your poultry farm--provide the best guide and service for your broiler house buliding.
2).Equipment installation--we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
Advantages--breeder automatic feeding system:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing broiler living rate.
3).High quality to ensure non stopping running of your broiler house.
4).Comparitively cheap price.
5).Automatic poultry farming equipment.
Common RFQ before we send you detailed quotation sheet:
1).Size: (length×width × height).
2).Quantity:(discount based on order).
3).Weight of chicken when you sale to the market (the rearing period, From - weeks).
4).Types of chicken: laying hens or broiler chickens.
5).Types of breeding: in cages or on the ground.
6).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

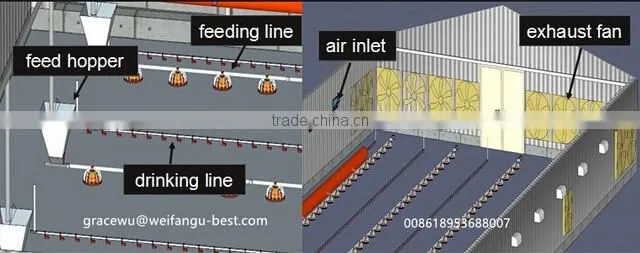

Breeder automatic feeding system consists of 9 systems:
Name |
Main Function |
1.Main feeding system |
Convery feed from silo or main feed hopper into feedling line hopper automatically |
2.Pan feeding system |
Convery feed into feeder pan automatically |
3.Nipple drinking system |
Supply clean water to each nipple steady, chicken can drink water from 360 degree freely |
4.Ventilation system |
Make chicken shed keep suitable temperature for different stage chicken |
5.Environment control system |
Setting suitable climate situation according to different stage chicken requirement, through control ventilation fans, airlet and cooling pad's on /off to control the chicken climate automatically. |
6.Cooling system |
Make chicken house temperature come down quickly |
7.Spraying system |
Clean chicken house, chicken house disinfection |
8.Heater system |
Warm chicken house |
9.Egg nest |
Help to collect eggs in breeder chicken house. |
1.Silo/Manpower hopper main feed line system:
1).Function: Main stock line deliver system is to transmit the feed outside shed to the hopper of
feeding system inside,control system indicates delivery system to work automatically.
2).Silo:Feed of poultry raising farm is stored in the silo, so as to save large amount of package,
and also to ensure the health of feed.
Silo parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
|
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
|
|
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |

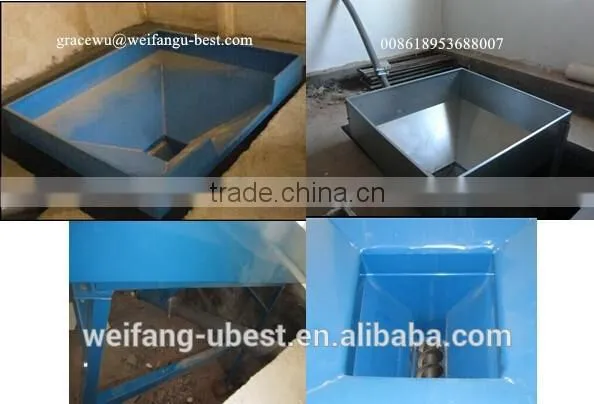

3).Manpower hopper:If you don't use silo, you can use manpower hopper.Usually,if you just
build one or two farm,we suggest you use hopper instead of silo.

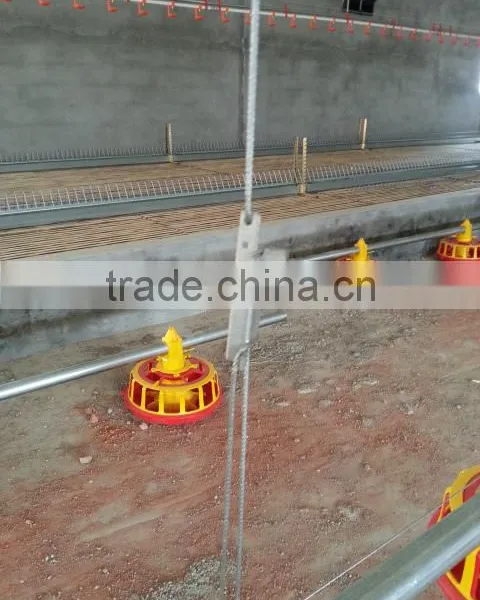

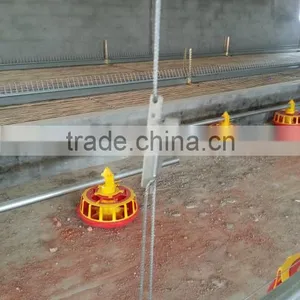

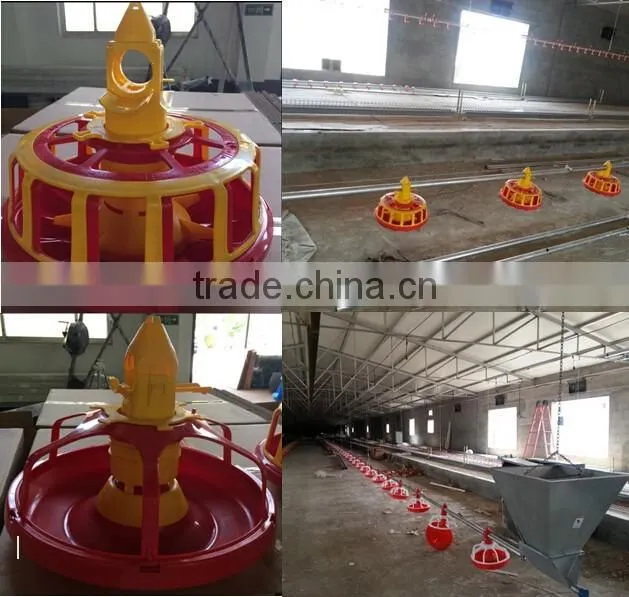

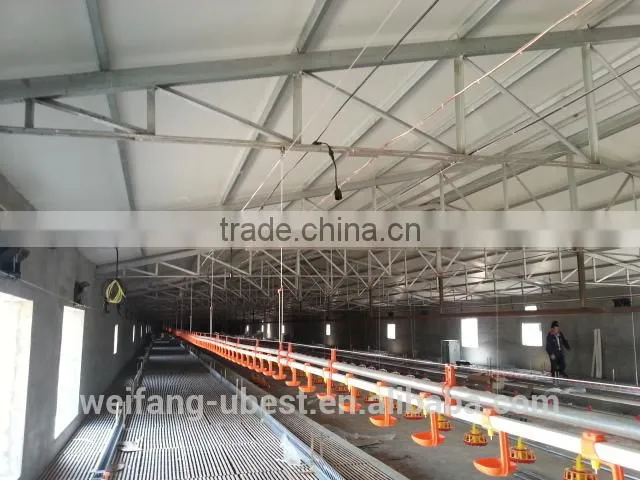

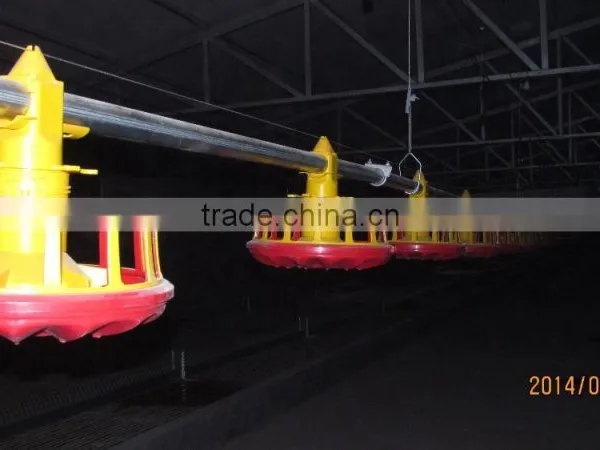

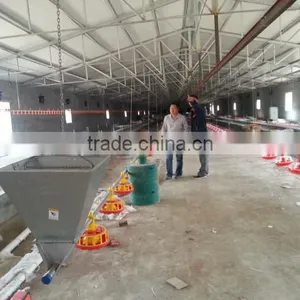

2.Automatic Pan Feeding line system:
Main components |
Fartures&Function |
Vice hopper |
hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional). |
Feed bolts |
Interface diameter is 45mm, including galvanized grid |
Feeder tube |
double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole; 4-hole option) |
Helical auger |
Imported from South Africa |

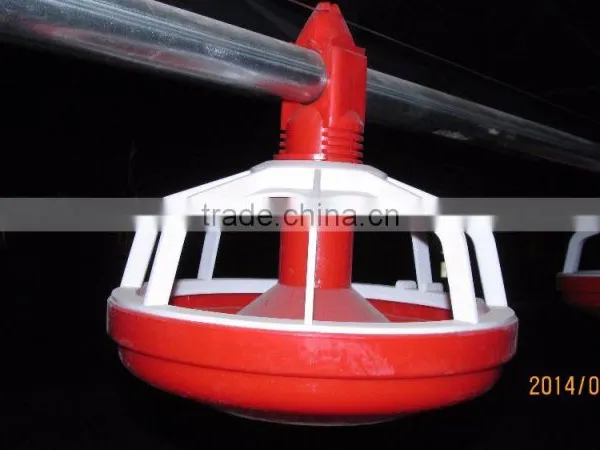

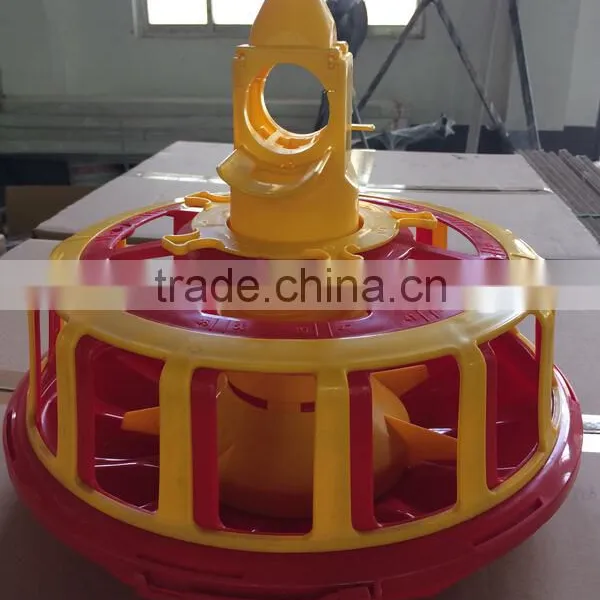

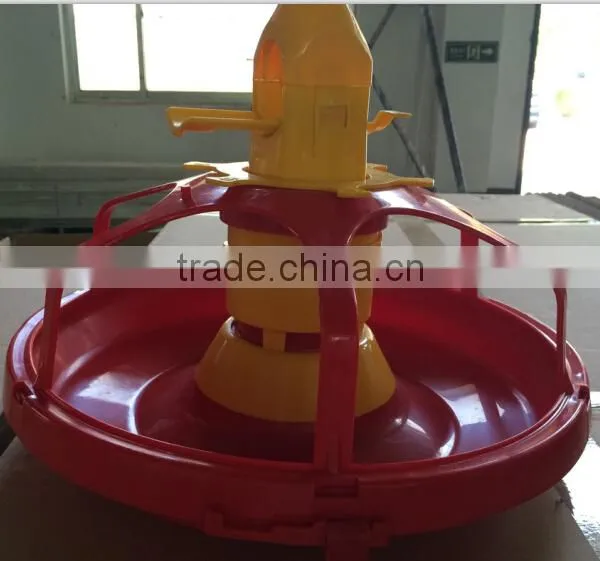

Female Feed pan |
14 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. |
Male feed pan |
6 grill feed pan,enough eating space with more cock. 6-8 male birds per pan. |
Control pan |
Including imported feed sensor, High sensitivity |
Suspension system |
Consist of steel wire rope, nylon rope, clips,winch,pulley,etc. |
Driving motor |
Power:0.75kw/1.1kw/1.5kw, Voltage:380V or 220V, Frequency:50hz/60hz, three phase/single phase |

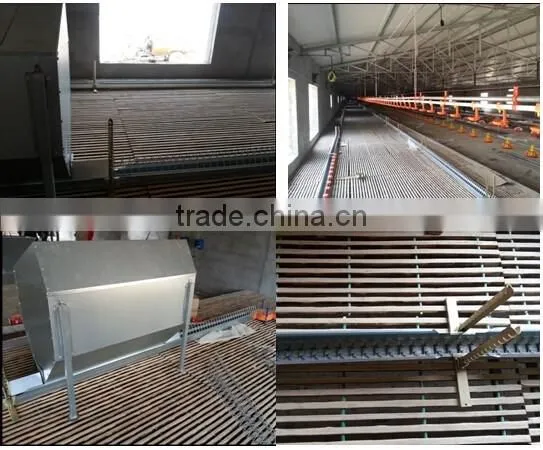

Breeder chain feeding system:
3.Automatic nipple drinking line system:
Main components |
Fartures&Function |
Front part of watering system |
Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |
Nipples with drip cup |
3m/12nipples ,3m/15 nipples are optional 10 breeders per nipple. |
Lifting and suspension system |
Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
Water display level tube |
Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
Pressure regulator |
Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
Doser |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |

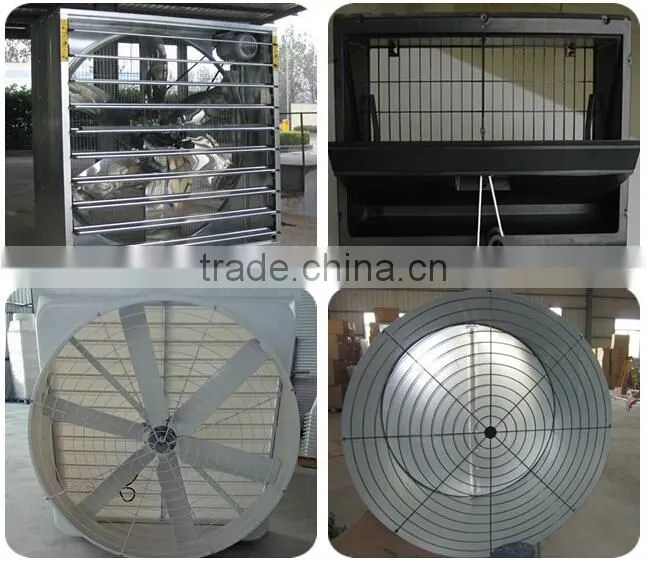

4.Automatic ventilation system:
The main parts of ventilation system is the big fan and small fan. They are controlled by the control
system. The NO. of the fans to run was decided by the temperature of the poultry house.
Some clients choose butterly fly cone fan (tunnel ventilated fans) base on local climate.
Ventilation fan parameters:(FRP: Fiber glass cone fan)
Detailed parameters |
50"box fan |
50" tunnel fan(Galvanized) |
50"FRP |
36”fan |
Air capacity |
43070m3/h |
49453m3/h |
46252m3/h |
20800m3/h |
Size(mm) |
1380x1380x450 |
1460x1460x460 |
1460x1460x460 |
1000x1000x450 |
Noise |
65db |
65db |
64db |
64db |
Power |
1.1KW |
1.1KW |
1.1kw |
0.4kw |
Voltage |
380 or 220V, or as client's requirement |
|||
Current |
2.8A |
2.8A |
2.8A |
1.6A |
Weight |
88KG |
88KG |
60KG |
66KG |

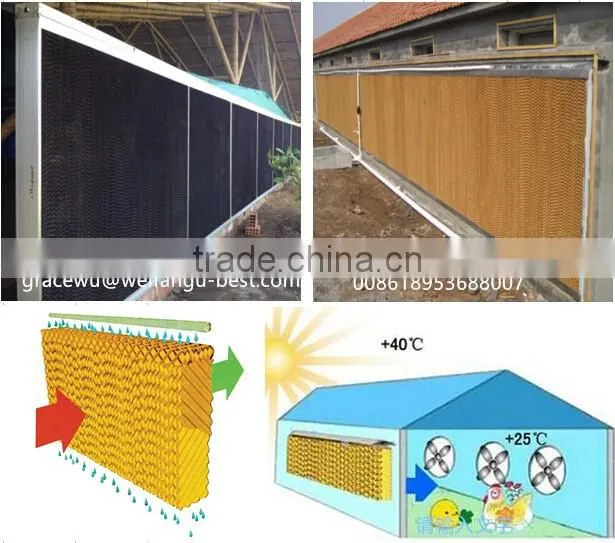

5.Cooling pad system:
Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is
installed on one side of the wall, fan installed other side. When air flow through cooling pads,
the water evaporation absorbs a lot amount of heat.
Cooling pad paramaters:
Thickness |
100mm;150mm |
Width |
300mm;600mm |
Height |
1660mm;1960mm;2160mm |
Frame |
Galvanized sheet and Aluminium alloy(Common use) |
Aluminium alloy frame |
High strength, good corrsion resistance, water distribution uniformity,beautiful and practical. |

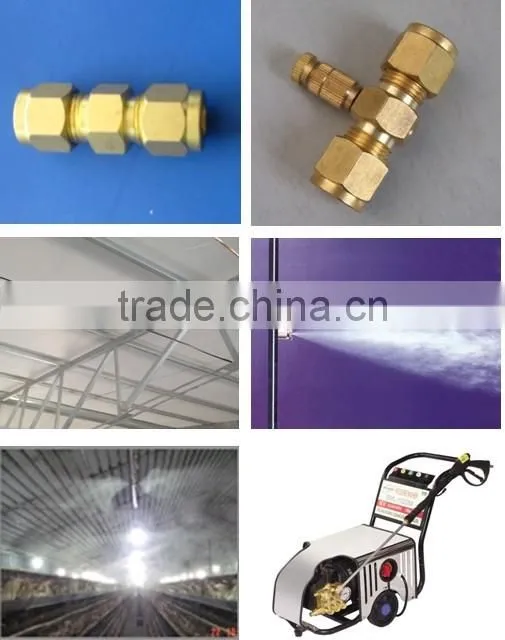

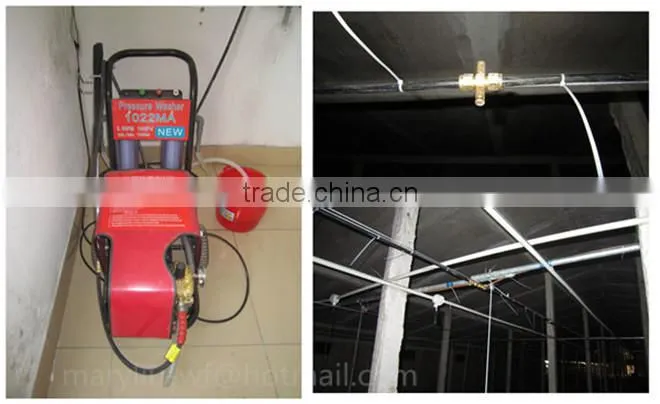

6.Spray & disinfecting system(Fogging system):
Function:It is effectively tools for cooling, damping, dedusting, disinfecting the house.
Installtion layout for fogging system:
1) There are three foggy lines in standard house,and each nozzle with two spraying hole every 3m to
ensure spray into every corner
2) Side pipe is anti-high pressure PE pipe and able to endure high pressure of 100kg,anti-corrosive
3) Main pipe is made of anti high pressure copper tube,from which two ways are divided,to ensure
homogeneou atomizing granule everywhere under identical spraying pressure.

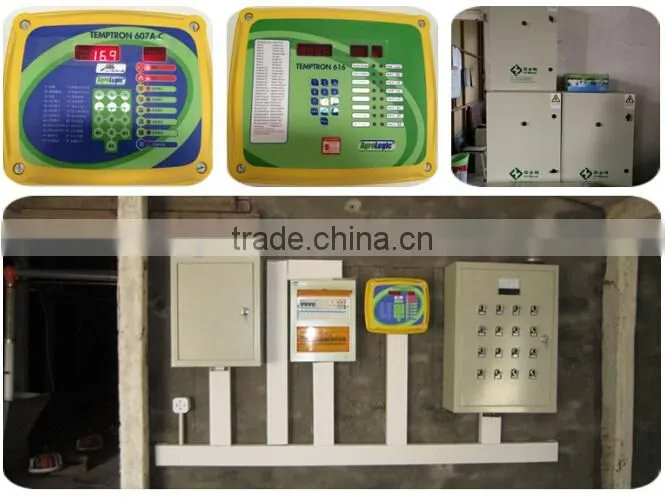

7. Environment control system for breeder house:
Imported from Israel T607, T616, Image II/China brand UBT-2000 can set an optimum working mode
according to the local climate and raising environment. This system saves the labor and the resources
under the condition of assuring the optimum growth.
Environment controller, power distribution box, main&deputy control box are included in this system.
8.Breeder house heating system(Heater):
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different
growth stage. Hot blast heater of coal or diesel can heat the whole chicken house, gas brooder will
heat the day old chick. Please kindly confirm us which type you will use.

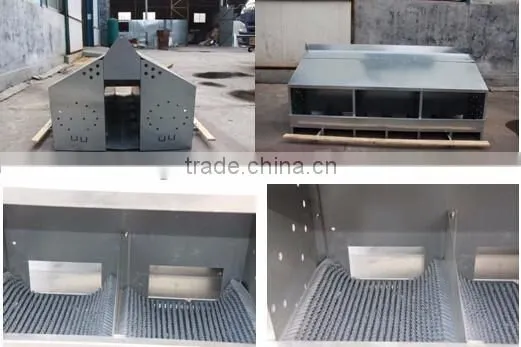

9.Egg nest (12 hole automatic egg nest/24 hole manual egg nest/ egg nest plastic pad):
1) To adapt to any installation of sheds
2) Disinfected thoroughly easy to avoid the spread of the disease

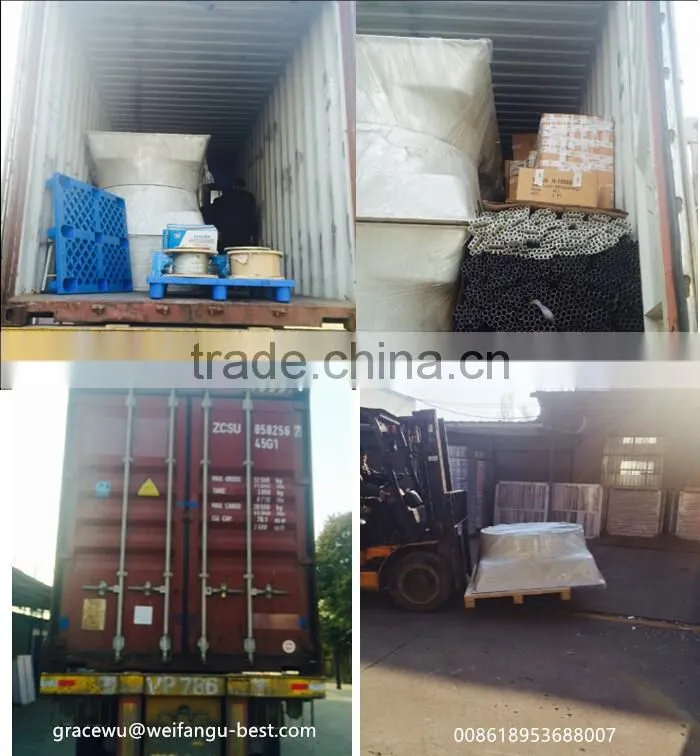

Packaging&Shipping--breeder automatic feeding system
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.

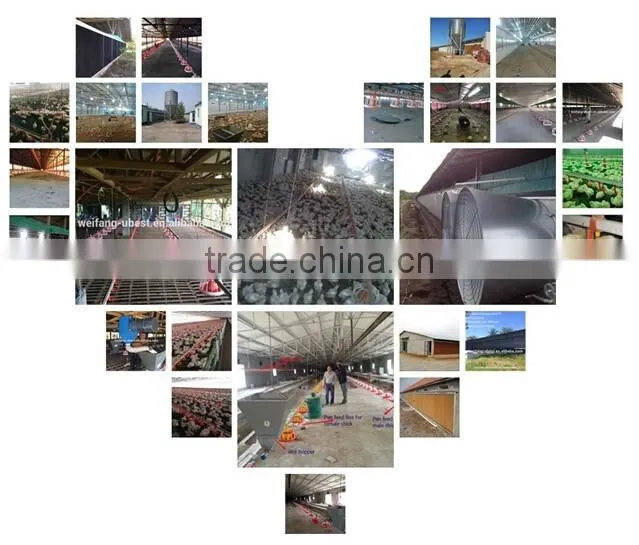

Successful chicken farm projects--breeder automatic feeding system:
Our company have exported to Sudan, Saudi Arabia, Algeria, Nigeria, Zimbabwe, Mozambique, South
Africa,Tanzania, Zambia, Taiwan,Philippines,Indonesia,Pakistan,Uzbekistan,UAE, Lebanon, Qatar,
Palestine, Kosovo, Peru, Columbia, Honduras, Dominica Republic,Paraguay, Costa Rica, Australia, Fiji…
All get good feedback.In addition, our company is recruiting global agents, welcome you to join us with our
utmost and warm expectation.If you need more specific information, please contact us , we will provide
you professional and detailed solving plans.
Company inforamtion--breeder automatic feeding system:
Please feel free to cotnact us for more details about breeder automatic feeding system.
Here is our contact information:
Grace Wu
Email:gracewu(at)
Cell:008618953688007(WhatsApp)
Website:
QQ:1024314389
Add:South of Minzhu Street,North of Youyi Road
Weifang Economic Development Zone,Weifang, China
