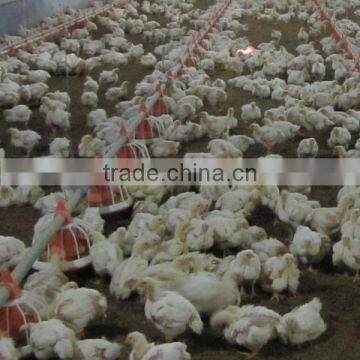

Automatic Feeding Pan System for Poultry Farm Equipment

automatic feeding pan system for poultry farm equipment

Main function of automatic feeding pan system:

Convey feed into feed pan automaticly.

Main components of automatic feeding pan system:

Broiler feed pan:

1).Outside adjustment feed pan as 6 gears of feed amount, and the other kinds has 13 gears.

2).Feed pan slide switch could adjust feed flow until it is filled.

3).Outside adjustment feed pan is more convient, accurate and quick to adjust feed flow.

4).Pan bottom can be disassembled on the ground, working for day-old chickens.

5).V-pan plate design can be reduce feed storage on bottom, so birds can always eat fresh feed. The design

can also prevent birds from staying too long on the plate.

6).The edge of pan plate tilt towards the craw of birds from hurting and make sure safety and comfort feeding.

7).Feed pan installtion has fixed type or swing type.

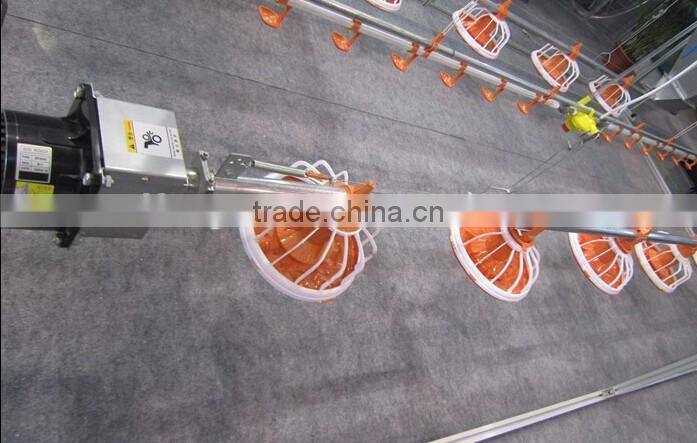

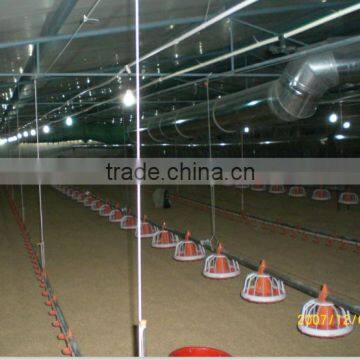

Automatic pan feeding system:

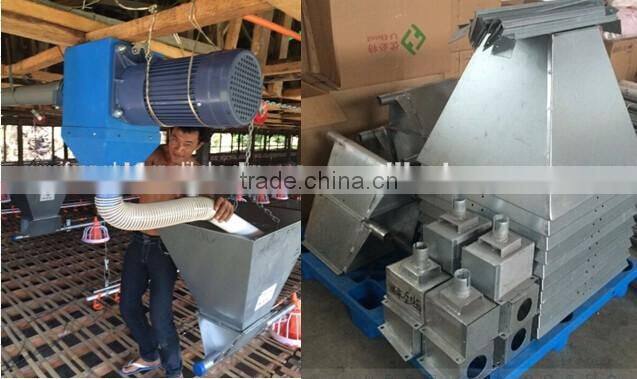

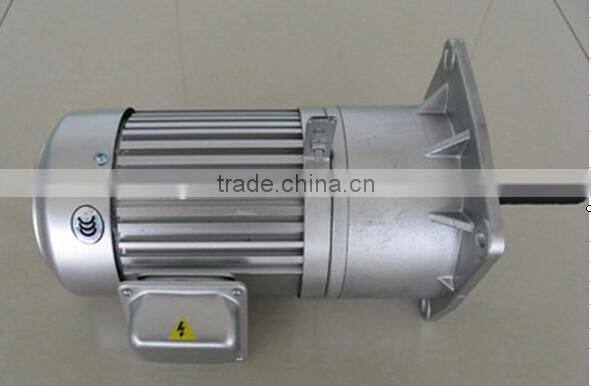

Driving motor:

Feed hopper:

Bin volume:115L,200L, etc

Material:hot-dip galvanized sheet

Material Thickness:1mm

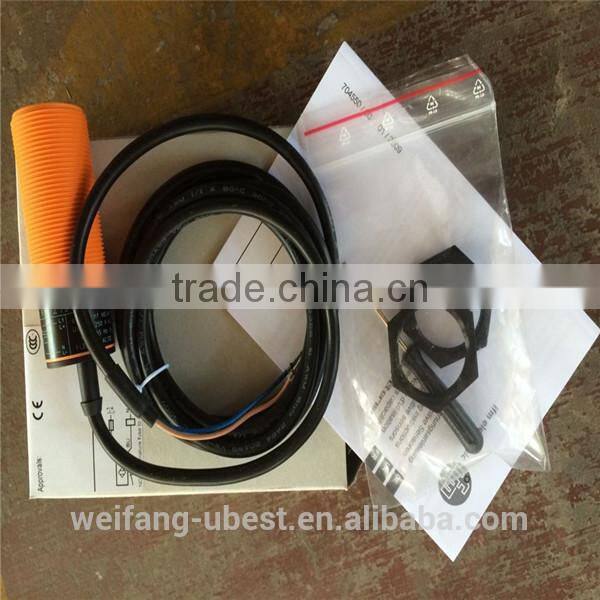

Feed sensor(imported from Germany):

When feed sensor is installed inside the feed pan(connect to open), driving motor starts work to convey

feed, when feed sensor does not touch feed, and it stops conveying feed, when feed sensor touches feed

(for main feed line and pan feeding line use).

When feed sensor is installed at the bottom of feed bin (connect to close), the function is opposite to the

above situation.

Also our factory can provide:

1.Main stock line system:Convery feed from silo or main feed hopper into feedling line hopper automatically.

2.Automatic nipple drink line system:automaticly supple clean water to each nipple steady.

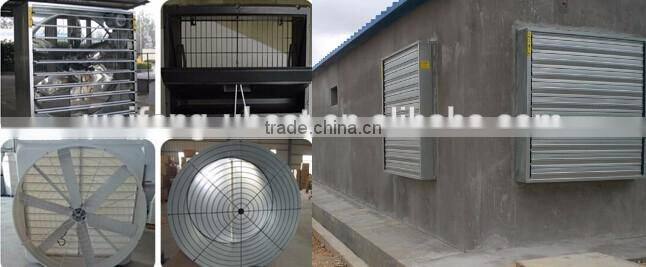

3.Ventilation system: Make chicken shed keep suitable temperature for different stage chicken.

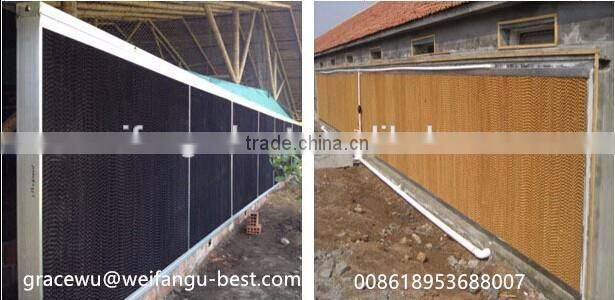

4.Cooling pad system: Setting suitable climate situation according to different stage chicken requirement,

through control ventilation fans, airlet and cooling pad's on /off to control  the chicken climate automatically.

5.Spraying system: Cooling, damping, dedusting and disinfection the chicken house.

6.Heater system:Warm chicken house.
