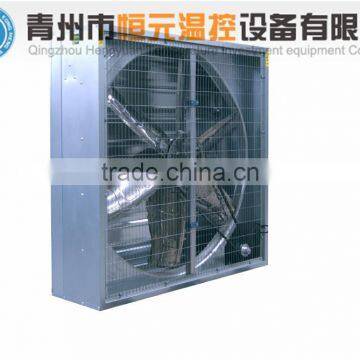

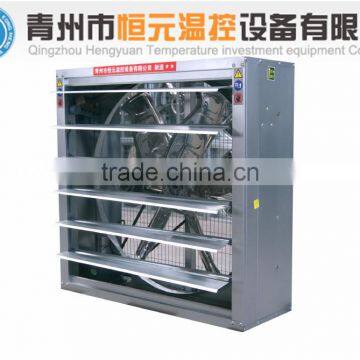

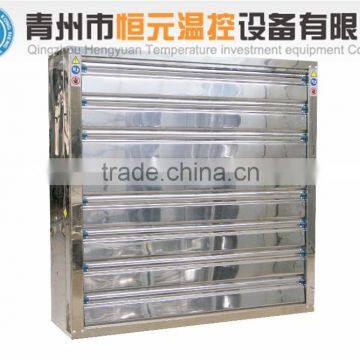

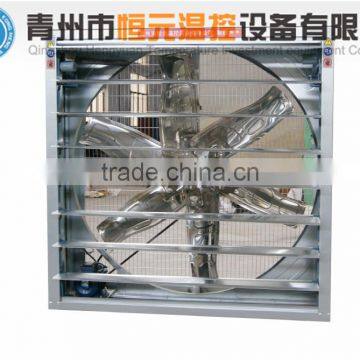

HY Air Cooling Fan for Poultry House and Greenhouse

HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-1
HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-2
HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-3
HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-4
HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-5
HY Air Cooling Fan for Poultry House and Greenhouse thumbnail-6
HY Air Cooling Fan for Poultry House and Greenhouse photo-1
HY Air Cooling Fan for Poultry House and Greenhouse photo-2
HY Air Cooling Fan for Poultry House and Greenhouse photo-3
HY Air Cooling Fan for Poultry House and Greenhouse photo-4
HY Air Cooling Fan for Poultry House and Greenhouse photo-5
HY Air Cooling Fan for Poultry House and Greenhouse photo-6
US$ 300 - 450 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Wall Fan
Contact Supplier Request Quote Chat Now
Qingzhou Hengyuan Temperature-Controlled Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Stainless Steel
Mounting Wall Fan
Place of Origin Shandong, China
Brand Name hengyuan
Voltage 380v
Certification CE

hengyuan cooling fan

Detailed description



  • shutter:high-quality galvanized steel sheet, ensuring the shutter open and close automatically, and can reach the purpose of dust-proof, water-proof.
  • Motor: high-efficiency, energy-saving, with Protection grade IP55 and insulation class:F
  • Belt: automatic tensioner is adopted to prevent the belt loosing and frop off.
  • Balance-running machine keeps the balance of entire fan and ensuring operation-steady,low-noise and long-service life.
technical parameters:

Mo del specifications

Diameter blades(mm)

Blades rotational speed (rpm)

Motor rotational speed (rpm)

Air flow (m3/h)

Total pressure (pa)

Noise decibels

(Db)

Import power

(kw)

Rated voltage(v)



Outer size (mm)

high×width×thick

HYA-800

710(29in)

660

≥1400

22000

60

≤60

370

380

800×800×400

HYA-900

750(30in)

630

≥1400

28000

65

≤65

550

380

900×900×400

HYA-1000

900(36in)

610

≥1400

30000

70

≤70

550

380

1000×1000×400

HYA-1100

1000(40in)

600

≥1400

32500

70

≤70

750

380

1100×1100×400

HYA-1220

1100(44in)

460

≥1400

38000

73

≤70

1100

380

1220×1220×400

HYA-1380

1250(50in)

439

≥1400

44000

56

≤70

1100

380

1380×1380×400

HYA-1530

1400(56in)

325

≥1400

55800

60

≤70

1500

380

1530×1530×400

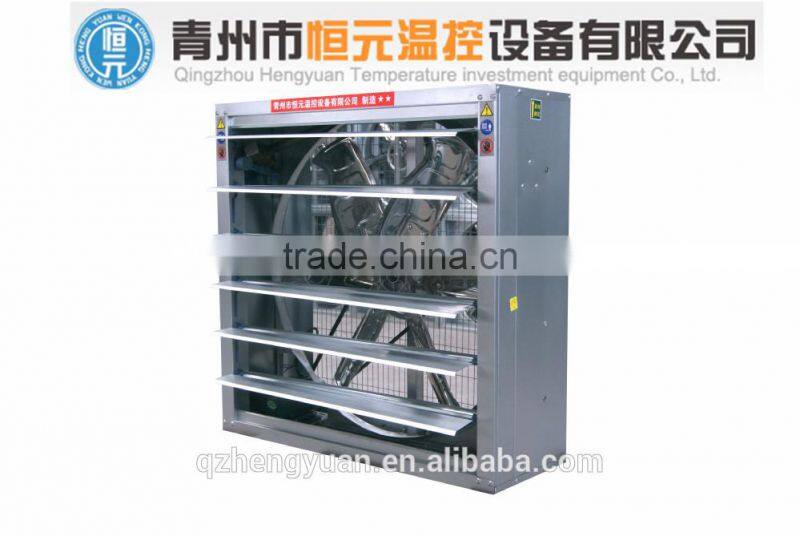

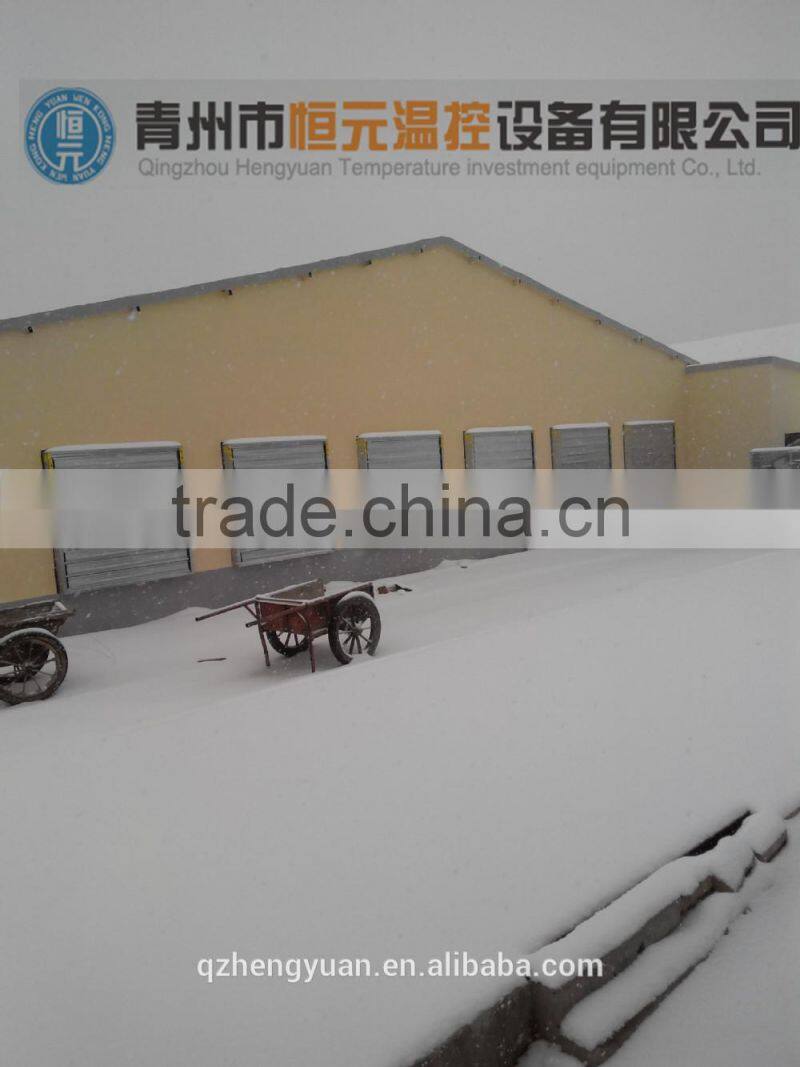

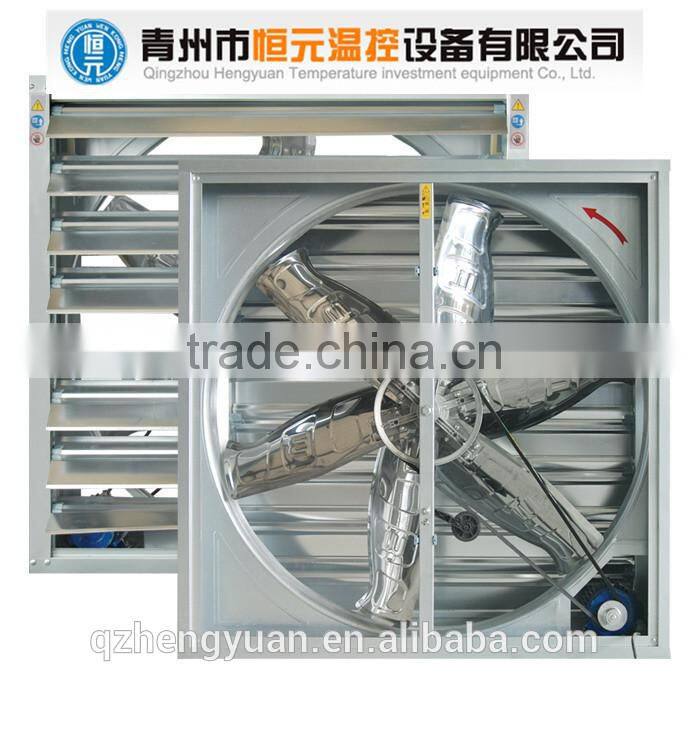

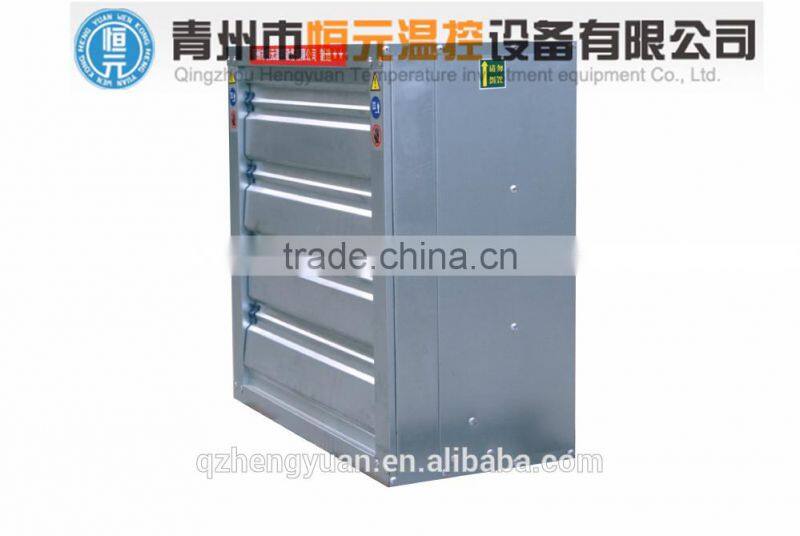

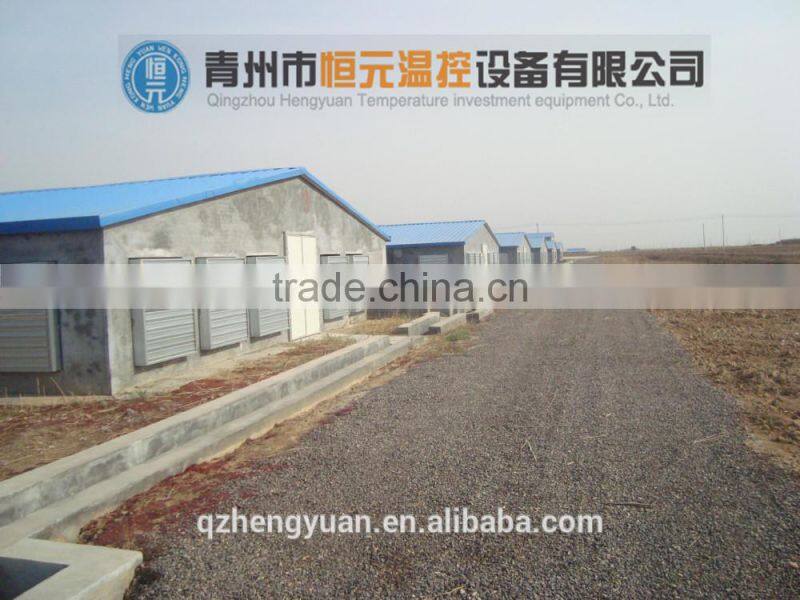

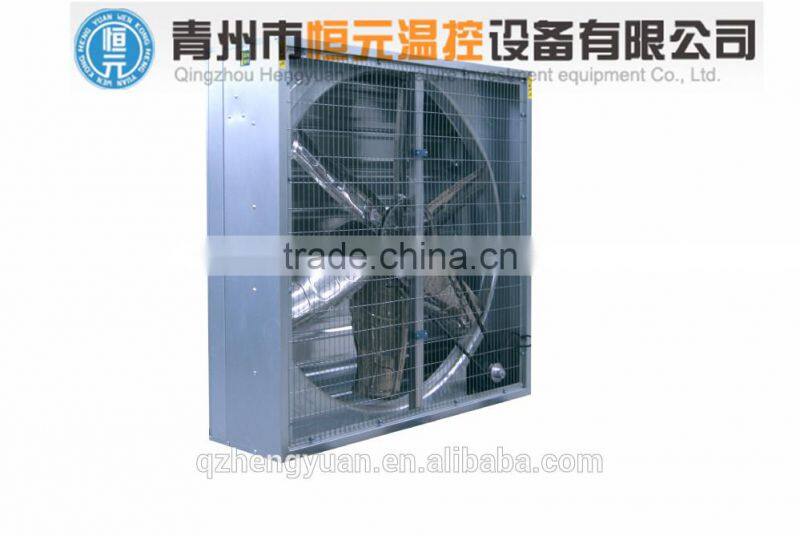

fans pics and installation samples:

HY air cooling fan for poultry house and greenhouseHY air cooling fan for poultry house and greenhouseHY air cooling fan for poultry house and greenhouseHY air cooling fan for poultry house and greenhouseHY air cooling fan for poultry house and greenhouse

HY air cooling fan for poultry house and greenhouseHY air cooling fan for poultry house and greenhouse



About us:

Qingzhou Hengyuan Company has strong production and research and development ability,Our main products include:Ventilation cooling system,such as large—scale poultry fan,large scale fan for greenhouse and factory buildings,negative pressure fan,circulation fan,unpowered roof fan:Cooling humidification system,such as cooling pad;heating system such as automaticcoal(fuel,electric,gas)heater,induced draft fan.Manure cleaning system consist of manure cleaning machine.

Now our products sell well in more than 20 provinces and cities,autonomous region and exports to Europe,Asia and other countries.

 Good quality, better price, best service

Services:

1.About sample:offer the samples to customers only need to be paied the cost price and the fee for this product.

2.About the customized service:can make the customized service according to the requirement of customers. For big order,we can pay the cost of customized service in our balance.For small order,we can do it on the base of paying the cost of custmized service by customers.

3.About after-sales service:for customers who install the equipments in China,we can offer one year after-sales service by free,only need customers to pay the cost of products which be changed.for customers who need them overseas,we can offer guide service for one year by free.



FAQ:



1.Trade Terms:EXW,FOB,CFR and CIF



2.Payment Terms:T/T,L/C



3.Payment Condition:30% deposit in advance,70% balance before delivery



4.Delivery Time:15 days after paied in full



5.Packing:by carton



6.Shipping:by sea/air/express delivery
