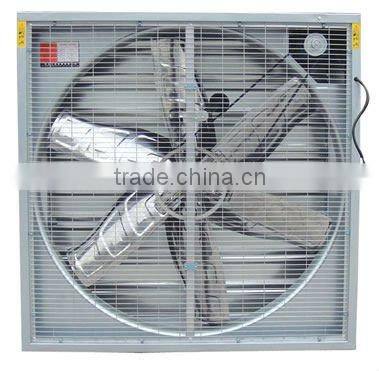

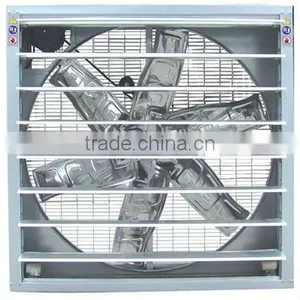

Weight balance type Exhaust fan with CE certificate for poultry and green house
- 500 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Electric Current Type: | AC | Mounting: | Wall Fan | Blade Material: | Stainless Steel |
Place of Origin: | Shandong, China | Brand Name: | JLF | Model Number: | JLF-1100/1220/1380 |
Voltage: | 380V | Power: | 50HZ | Air Volume: | 32500/38000/44000 m3/h |
Certification: | CE |
Product Description
JLF series weight balance type fan Description
Material: stainless steel for option model: JLF-1100/1220/1380
Type: Axial Flow Fan mounting: shop window / wall fan
Voltage: 380V Power: 1.1KW Frequency: 50HZ
Products Features:
1) Fan Frame: made from highly galvanized steel sheets in order to assure highest strength and strong resistance to corrosion.
2) Blade: 6 pieces stainless steel blades and the fan has all passed the experiment of homeostasis with big air volume, without deformation n, no breaking, attractive and durable.
3) Belt Pulley: The V type belt pulley is aluminum magnesium alloy injection moulded, light weight, high-strength.
4) Bearing: France imported bearing, high intensity, low noise, long service life.
1.OUTLINE BORDER
The outline border was one time punch by advanced automatic process, thicker zinc coat make it corrosive resistance. There are water holes on the bottom of the frame.
2.HUB The hub was made of aviation aluminum magnesium alloy, hot casting molding, light weight, high strength, and good tensile.
3.BLADE Six new design stainless steel blades were made in one time punch. No distortion,no fracture, attractive and durable. The figure’s angle is reasonable, so small noise and big wind capacity, the safety is very good.

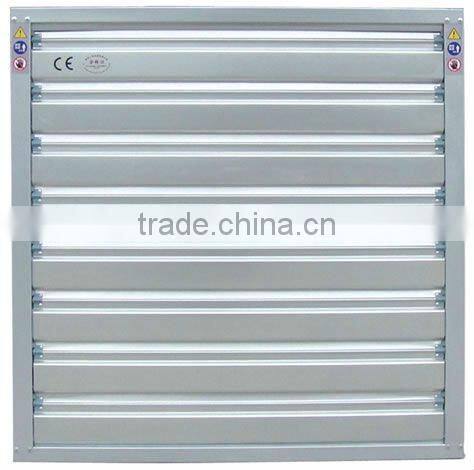

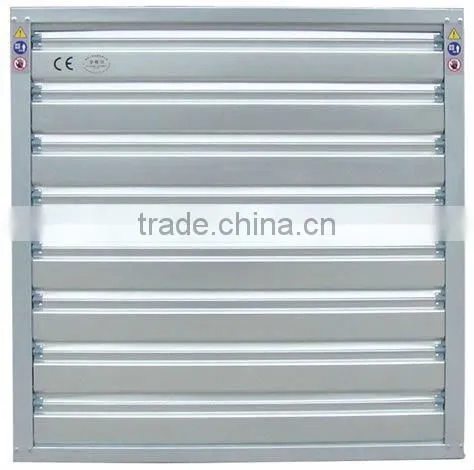

4. Shutter made of high strength hot dip galvanized sheet, the special shutter automatically open device (special push-pull device), ensure to open and close completely, so the shutter can open 90°at any times and windproof, rainproof and dust proof. 5. MOTOR Double bracing (E style) belt transporter. High performance national standard fan motor with CCC certificate, the voltage is 380v. Protection class: IP54. Insulation Class: F 6. BELT Imported belt type B, no distortion and long work time, no need of maintain during whole life time.
Model | Diameter Blades (mm) | Air Volume (m3/h) | Power (kw) | Outer Siz(mm) (H*W*T) | Voltage |
JLF-620(24") | 500 | 5700 | 0.25 | 620*620*400 | 380V |
JLF-780(30") | 710 | 23000 | 0.75 | 780*780*420 | 380V |
JLF-830(32") | 720 | 20000 | 0.55 | 830*830*400 | 380V |
JLF-900(35") | 750 | 22000 | 0.37 | 900*900*400 | 380V |
JLF-1000(39") | 900 | 25000 | 0.75 | 1000*1000*400 | 380V |
JLF-1100(43") | 1000 | 32500 | 0.75 | 1100*1100*400 | 380V |
JLF-1220(48") | 1100 | 38000 | 0.75 | 1220*1220*400 | 380V |
