50inch Swung Hammer Exhaust Fan with CE

FOB Price

USD $100 - $300 / Piece

10 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Wall Fan
Blade Material	Stainless Steel	Place of Origin	Shandong, China
Brand Name	JL	Model Number	JLF(c)
Voltage	380v/220v	Power	1.1kw
Air Volume	44000m3/h	Speed	439rpm
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

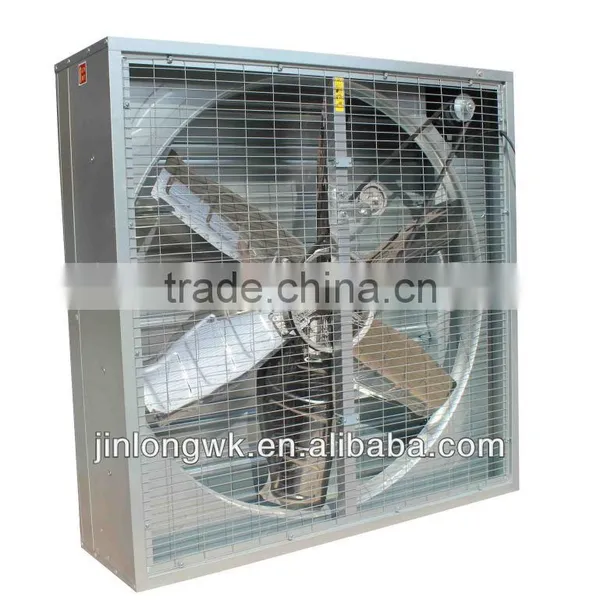

JLF heavy hammer exhaust fan with CE

Heavy Hammer Exhaust Fan Products Features:

	Application: this kind of exhaust fan is widely used in poultry house, greenhouse, workshop, warehouse, plant, factory, basement, garage and so on in the fields of Livestock Breeding, Agriculture, Flowers and Plants, Textile Industry, Mining, Chemical Industry, Pharmaceuticals Industry, Lumbering and so on.

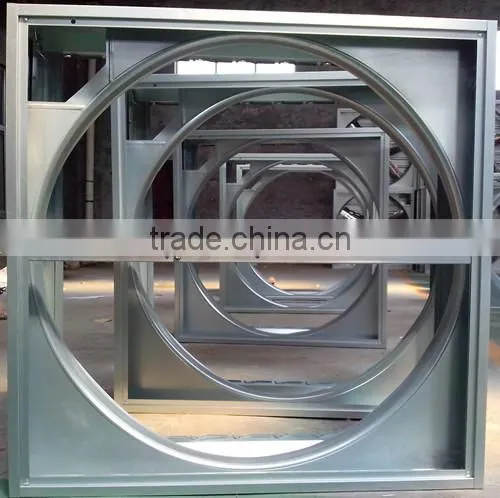

	Frame: galvanized steel sheet, anti-corrosive, durable. 1.0mm for the top and 0.8mm for the other sides

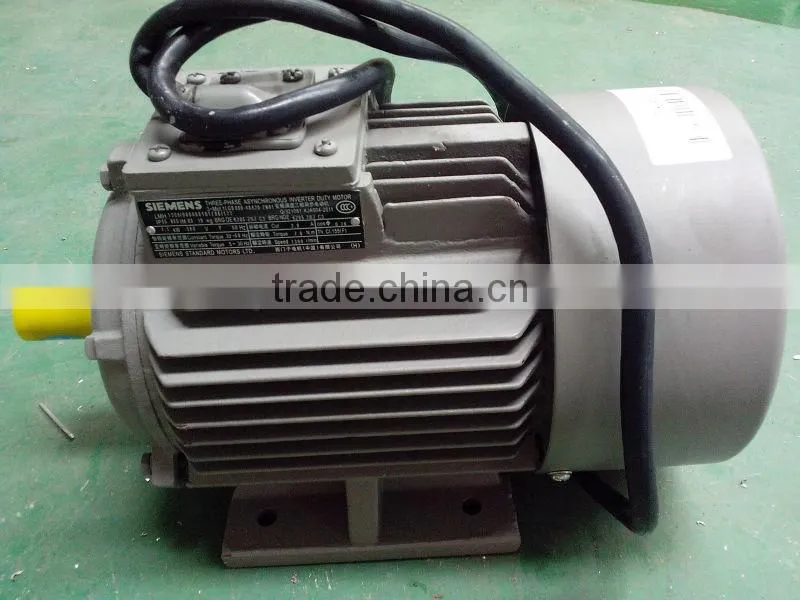

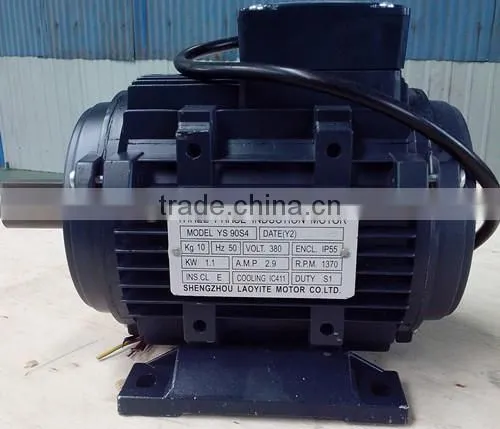

	Motor: Siemens motor and Chinese motor are available, high efficient and energy-saving with CCC certificate. Protection class: IP55. Insulation class: F. The voltage, frequency, power and phase can be customized. Motor RPM: 1400r/min Motor base: both 1.5 HP and 1 HP motor can be installed Motor hole: installation hole of motor and nut are all six angles instead of the roundness

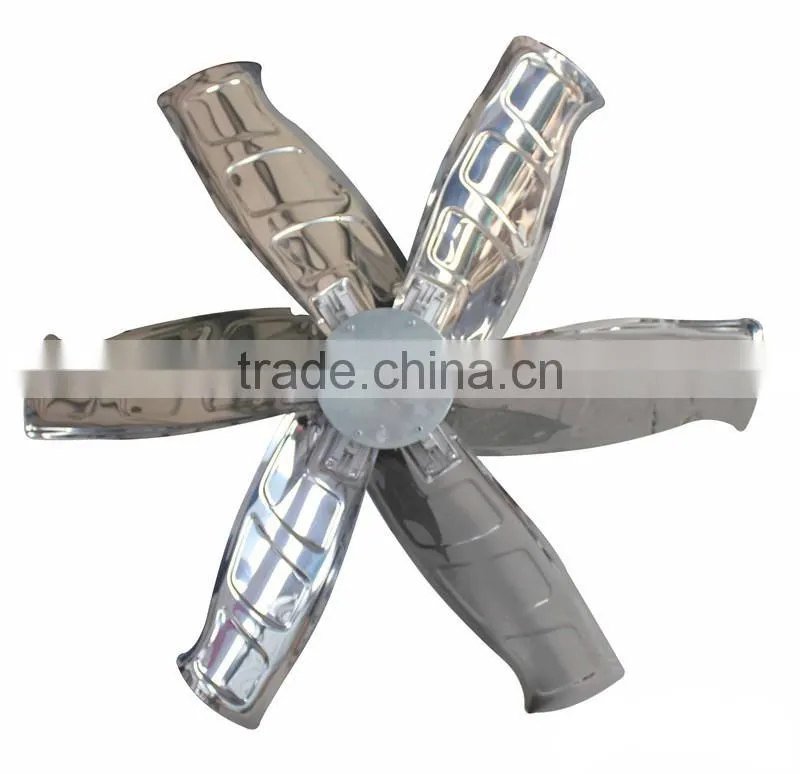

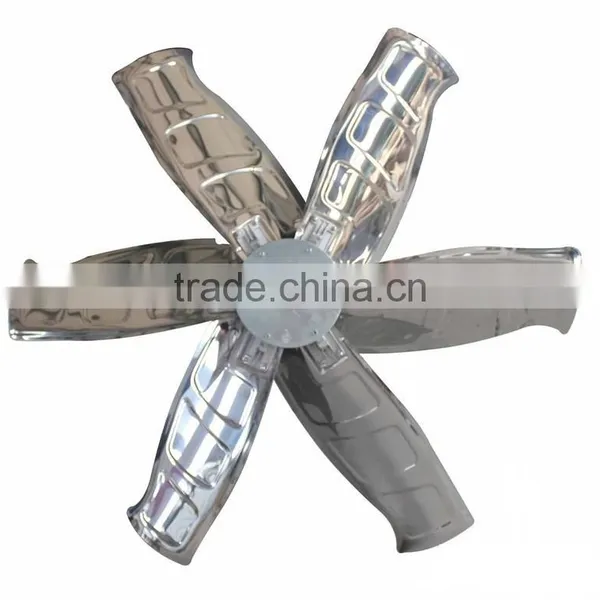

	Blades: 6 pcs of BA 430 stainless steel. Thickness: 1.2mm Blade instruction: weight difference between blades is less that 0.5g, blades will go through balance test after assembled which can assure steady running and even airflow

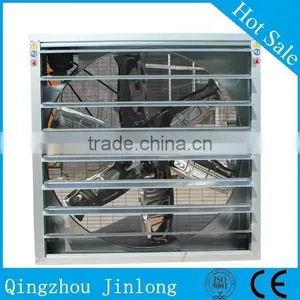

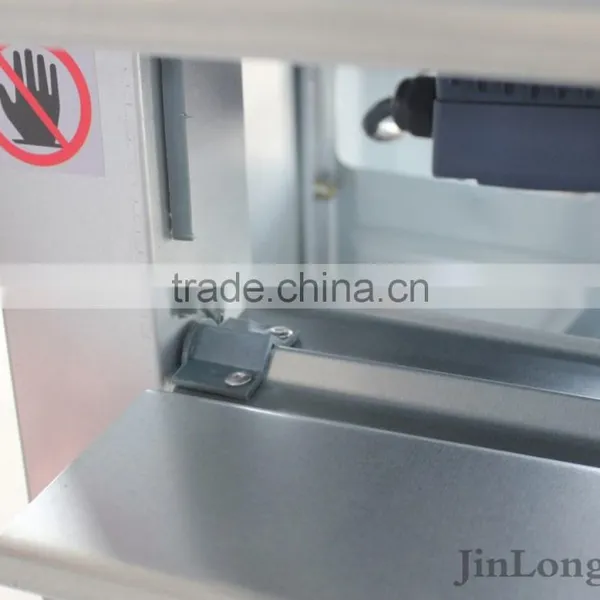

	Shutter: made of high strength hot-galvanized steel sheet, dustproof and waterproof Shutter thickness: 0.45mm. Shutter linkage: aluminum.

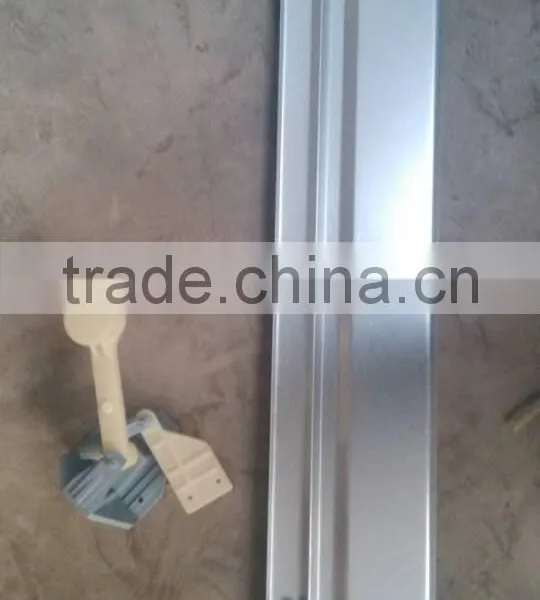

	Swung drop hammer: made of high quality nylon, stable performance, guaranteeing the shutters open and close flexibly

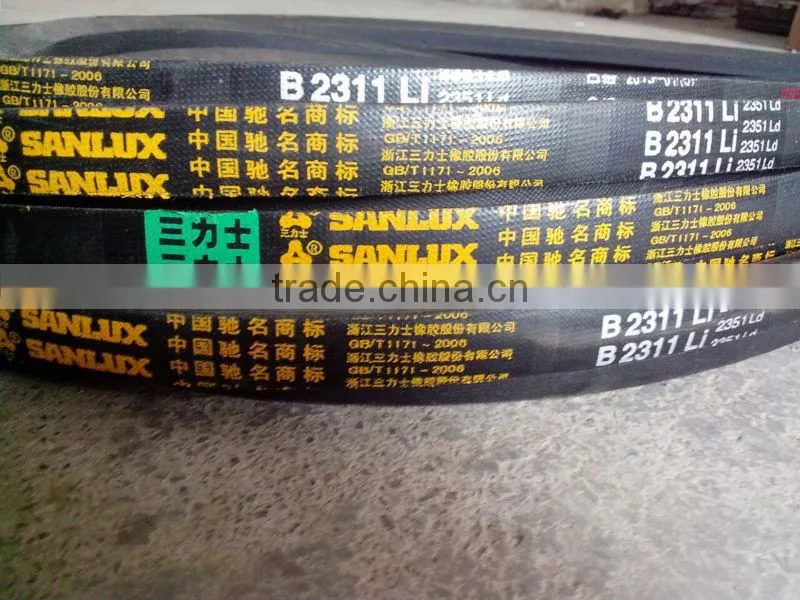

	Belt: China famous brand Sanlux belt, Japan Mitsubishi belt, Korea Dongil belt

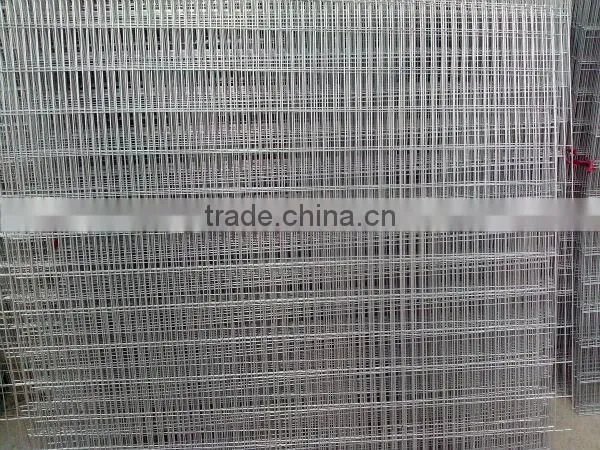

	Net guard: made of hard-drawn wire, designed as door-type, which is convenient for maintaining
	Small belt pulley: cast iron Big belt pulley: made of aluminum magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength

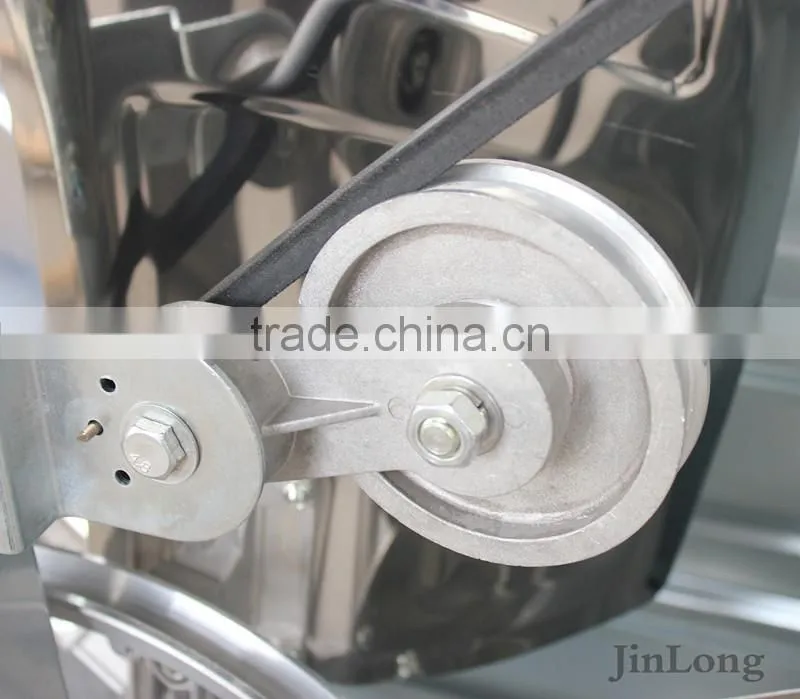

	Belt tensioner: made of high quality aluminum magnesium alloy, avoiding belt loosening or dropping off, extending service life and avoiding distortion

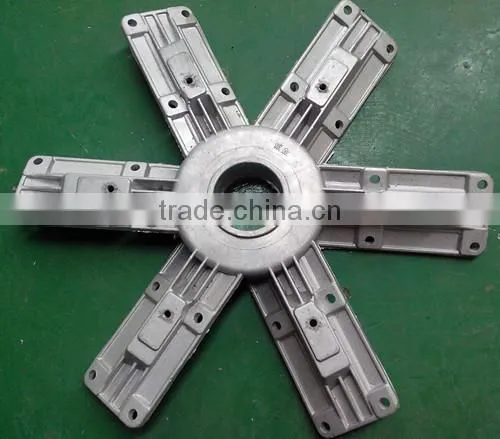

	Belt impeller: made of aluminum magnesium alloy by injection moulded, adopting more stiffening rib, processed by sandblasting,, eliminating the internal stress, high intensity, low noise, long service life
	Bearing: imported double-row bearing, super mute, high intension and durable, adopting special waterproof design, high intension, low noise, maintenance-free and long service liife
Guarantee period	1 year, easy broken parts are offered free of charge during this period
Packing	singular packing, corrugated carton

Heavy Hammer Exhaust Fan Technical Parameters:

ddModeldd	Diameter blades(mm)	Blades rotational speed (rpm)	Motor rotational speed(rpm)	Air flow (m³/h)	Total pressure(Pa)	Noise	Import power(W)	Rated voltage(V)	High (mm)	Width (mm)	Thick (mm)
JLF(c)-620	500	1400	1400	5700	55	≤70	250	380	620	620	400
JLF(c)-780	710	960	1400	18000	75	≤70	370	380	780	780	400
JLF(c)-800	720	660	1400	20000	60	≤60	550	380	800	800	400
JLF(c)-900	750	630	1400	22000	65	≤65	370	380	900	900	400
JLF(c)-1000	900	610	1400	30000	70	≤70	750	380	1000	1000	400
JLF(c)-1100	1000	600	1400	32500	70	≤70	750	380	1100	1100	400
JLF(c)-1220	1100	460	1400	38000	73	≤70	750	380	1220	1220	400
JLF(c)-1380	1250	439	1400	40000	56	≤70	1100	380	1380	1380	400
JLF(c)-1530	1400	325	1400	55800	60	≤70	1500	380	1530	1530	400

About our company:

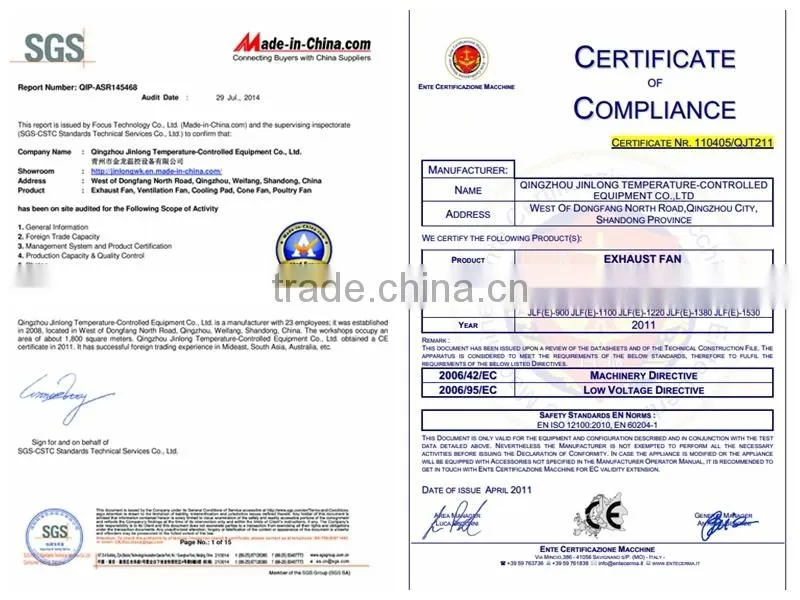

Qingzhou Jinlong Temperature-controlled Equipment Co.,Ltd is a professional manufacturer of exhaust fan, evaporative cooling pad, light trap, air inlet and heater. We use good materials to produce high quality products .Our company have passed ISO9001 Quality certifcate .And our products passed CE certificate.

We have full production equipments for produce exhaust fan and other products. Which make sure we have 100% control of the products. With the sustained business conception of " credit is the basis, quality is the first", we gain the high trust from customers

Welcome to contact us for coopertion.

FAQ :

Q: What voltages you can do , if you can make special voltages ?

A: Normal standard is 380V for 3phase, 220V for singple.The voltage and herz can be customized as your requirement.For example,400V,240V,60Hz.

Q: Hong long is the warranty?

A: One year. Brokens parts can be provided free of charge during this period.We use good materials and motors,the fans are hardly broken.

Q: What is the MOQ , can I order a sample for test?

A: MOQ is 10sets, it's for convienence to arrange products. If you need sample for test ,then order large quantity, 1 set for sample is ok,too.

Q: Are you real manufacturer or ..?

A: Yes, we are 100% original manufactuer of exhaust fan.Our factory located at Qingzhou city,Shandong province.Welcome to visit us.As a manufacturer, we have strict control of the material purchase and productions quality. Make sure the goods delivery to you are unwounded and perfect.

Q: How can I pay?

A: We accept TT(Telegraphic transfer) and L/C(Sight letter of credit).30% deposit is needed for TT payment.Balance against the copy of B/L(bill of lading)

Q: I want to use our own brand , is it ok?

A: Of course it's OK , we can make OEM products and also can provide our own brand products , it's all by your request .
