Help Center50" Poultry Cone Type Exhaust Fan With Stainless Steel Blades
Related Products
-
1380mm Butterfly Type Ventilation Fan/industrial Fan/exhaust FanUS$ 160 - 249MOQ: 10 Pieces -
FRP Frame Cone Tpye Exhaust FanUS$ 220 - 290MOQ: 10 Sets
-
Common Cone Type Shutter Exhaust FanUS$ 150 - 260MOQ: 10 Pieces
-
Agricultural Butterfly Type Cone Exhaust Fan/CE CertificateUS$ 190 - 300MOQ: 20 Cartons
-
JLF Cone Type Exhaust Fan/CEUS$ 150 - 240MOQ: 10 Pieces
New design, high efficiency, low wastage of energy, light weight, low noise, long duration and beautiful appearance.

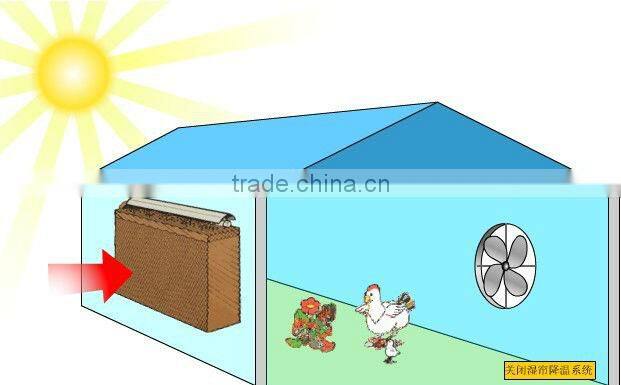

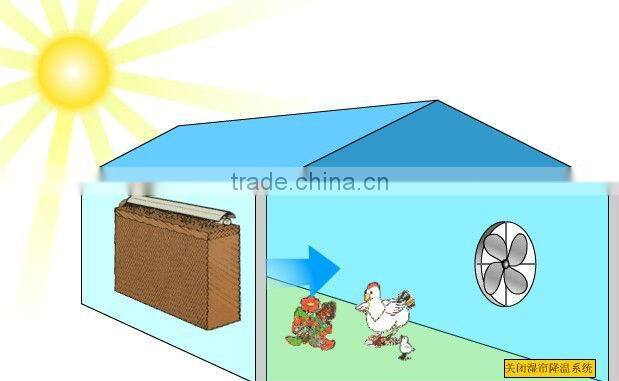

1. Application: poultry house, greenhouse, workshop and so on in the fields of Livestock Breeding, Agriculture, Flowers and Plants, Textile Industry, Mining, Chemical Industry, Pharmaceuticals Industry, Lumbering and so on.
2. Material of components:
Cone part: adopt new design, plug type connection, not need many bolts and nuts for tightening as before, reducing intensity of labor and improving aesthetic result of fan. Reasonable cone designing can get more airflow and less noise.
Blade: 6 pieces of mirror finished stainless steel blades, attractive and durable with big air volume, passing the homeostasis test to ensure the air volume keeping the same as the very beginning during the operational life span, low noise, no distortion, no broken. Thickness: 1.2mm
Motor: Siemens motor or Chinese motor, high efficient and energy-saving with CCC certificate. Protection class: IP55. Insulation class: F. The voltage, power, HZ and phase can be customized.
Shutter door: made of high strength galvanized steel sheet, antoxidant, light weight and no distortions. When the two semicircle shutter doors close, the rubber sealing ring makes good air tightness. It is impossible for the outside hot air to enter the room when the fan stops.
Frame: galvanized steel sheet, anti-corrosive and durable.Thichness: 1.0mm for the top, and 0.8mm for the other sides
Linkage part: aluminium instead of tradiitional plastic which can keep its shape forever in hot weather
Belt pulley: made of aluminium-magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength.
Belt: China famous brand belt, or Mistubishi belt
Bearing: imported double-row bearing, super mute, high intension and durable using-term.
