Chicken Drinking Nipple

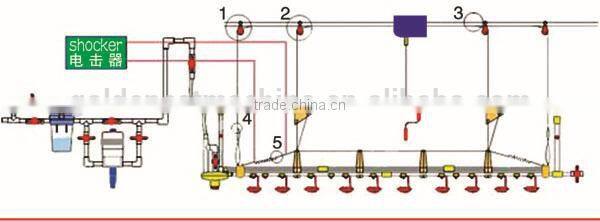

    Front part is the controlling part of drinking system, it controls the water pressure and also metering water quantity.

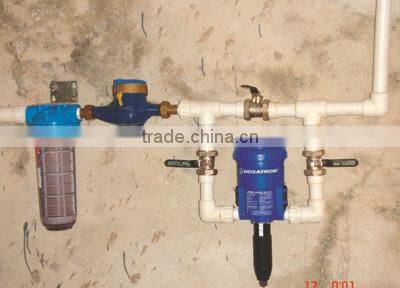

    Water egulator:

    ensure the balance of water pressure when in high or low water pressure, the recoil device is used to

discharge the impurity in the water.

    Filter: ensure the cleaness of water.

    Water metering: convenient to meter the quantity of water.

B. Dinking system of ground chicken raising

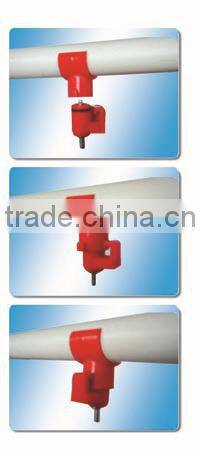

Nipple drinker detail:

High quality raw material coat outside

Water resisting stainless steel automatic ball valve

360 degree interface, stainless steel contact pin

Three layers stainless steel sealing seat

' O ' style seal ring

' J ' style valve

Easy to install, more reliable than the usual connecting method without cracking and leakage.

Easy to clean, removable parts.

Seal structure can effectively avoid wasting and humidity

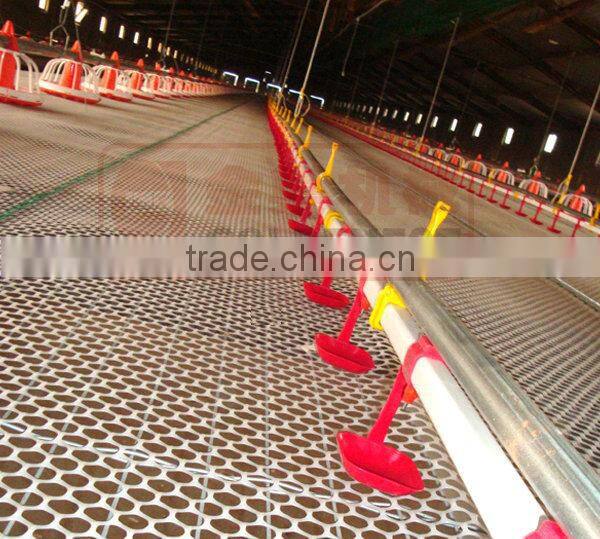

Proper height is very important for healthy growth of bird

The height and level of drinking lines can be regulated freely by winch hanging pieces together with the adjusting rope.

Figures of nipple drinker:

360 degree triggered,fits for all ages of birds as well as the chickes which born only one day.

304 stainless steel parts,ensure high quality.

New style of flow controlling parts solved the corrosion and wet dung such kind of problems.

Every nipple drinker can sufficiently supply 15 broilers, 12 breeders or 10 ducks.

Easy to use: Designed according to birds' drinking habit, dispense a drip of water whenever they are pecked.

Drinker fixed on the drinking line by a connect part without using screw.

All drinkers are inspected seriously before they can selling, ensure 100% high quality.

Drinkers can be self clean.

C. Figure for ending parts of drinking line:

The reading tube which is at the end of drinking line are made of transparent jaffaite, can be read easily.

Levels of drinking line:
