Evaporative Cooling Pad/Air Curtain for Plantation with CE
- 3000 Cubic Meter / Cubic Meters per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- 50L liquid nitrogen tank pressure relief valve/stainless steel self-pressuring dewar for storage and dispensing liquid nitrogen
- Belize-liquid nitrogen dry shippers KGSQ-sperm collection container
- Benin-semen collection container KGSQ-liquid nitrogen transport container
- Bangladesh-semen storage KGSQ-nitrogen sperm tank
- Malaysia-nitrogen canisters KGSQ-liquid nitrogen containers
- 3L cattle and sheep semen container Yds-3 liquid nitrogen tank price
Product Details
Place of Origin: | Shandong, China | Brand Name: | Runde, Runde | Model Number: | RD-5090 |
Product Description
Product specification of RD-5090 cooling pad
Adopt advanced equipments and technology, made of special high polymer materials.
2.Not contain substances that are harmful to the environment, poisonless, tasteless, energy saving, environment protection, easy installation and removel.
3.Corrugated paper, subjected to special treatment, features high intensity structure, corrosion resistant, prolonged service life.
4.Fine penetrability and water absorptivity ensure water evenly wet the complete cooling pad wall.
5.Water film can be formed on the surface of the corrugated fiber paper, by which the cooling pad can self-cleaned by being washed with water.
6.Particular spatial structure provides the largest evaporation surface area for heat exchange of water and air.
7.Fine filtration can protect efficiently against the particulates in the air.
8.Various colors for your selection :yellow ,black, etc
9.The frame can be made of aluminum alloy, galvanized sheet or plastic-steel, and the dimensions can be customized according to customer’s requirements.
10.Can be combined with fans to form stereoscopic ventilating and cooling system, which is the most inexpensive and effective cooling equipment in sweltering fields.
11.The cooling pads we produce are widely adopted as the medium of humidification and cooling ,and also widely used in industrial fields, civil fields & agricultural fields,such as mines, textile workshops, warehouses, stores, supermarkets, large farms,livestock farms,gardening and flower/vegetable greenhouses. Our products enjoy high reputation at home & abroad and sell well in China, Southeastern Asia, Africa, Mid East, Europe and USA, etc.
Cooling pad parameters table
Model | Height mm | Width mm | Thickness mm | Corrugation height mm | Corrugation angle |
HS-5090 | 1000~2000 | 600 | 100,150,200 | 7 | 45 º ×45 º |
Note: Other dimensions can be customized according to customer’s requirements. The above mentioned parameters are for reference only.
Paper pad performance
Paper pad thickness | Air speed m/s | 0.60 | 0.80 | 1.00 | 1.20 | 1.40 | 1.60 | 1.80 | 2.00 |
100mm | Pressure drop Pa | 7.0 | 8.0 | 11.0 | 16.0 | 20.0 | 24.0 | 28.0 | 35.0 |
Efficiency % | 82.0 | 80.0 | 78.3 | 76.5 | 74.9 | 73.3 | 72.0 | 70.8 | |
150mm | Pressure drop Pa | 10.0 | 13.0 | 18.0 | 23.0 | 30.0 | 38.0 | 45.0 | 54.4 |
Efficiency % | 92.5 | 91.3 | 90.0 | 88.7 | 87.5 | 86.5 | 85.4 | 84.5 |
Furthermore, we also manufacture and sell another kind of product that can match with the cooling pad: ventilation fan .We share the benefits with you and we are willing to develop with you together. Should you be interested in any of our products and have any question, please don’t hesitate to contact me.

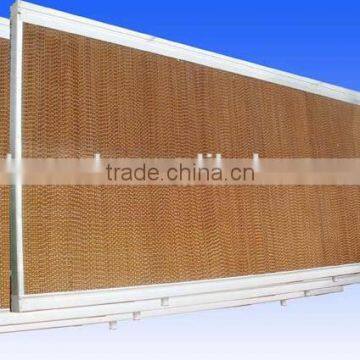

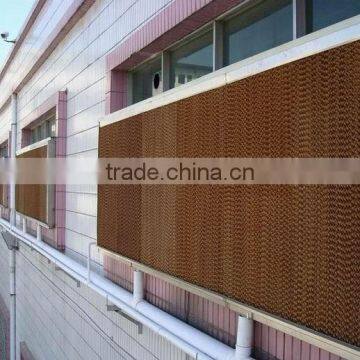

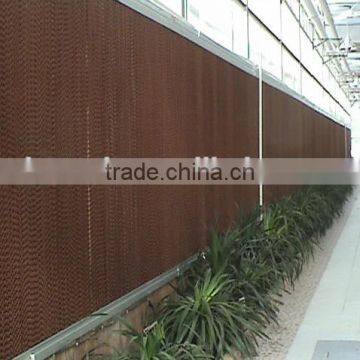

pictures of our cooling pad
Feedback: All products are gone through strict test before shipment. All photos displayed are 100% real and for reference only. Please allow possible slight difference due to technical improvement and variance. Your order on ali is recognized as you are with full acknowledgement of product specs and respective policies. We care about every customer and will do our best to deal with any problem in a good business manner. Aiming to create a pleasant shopping experience.
If you are a reseller or you would like to buy large quantity, please leave message in Trade Manager or email us. We will give you the best price! All messages and emails will be answered as soon as possible.
Thank you for your business and attention! Please add our store to your list of favorite sellers and come back as often as possible. There will always be unexpected surprises!
IF THERE ARE ANY QUESTIONS OR SOMETING UNCLEAR, PLS KINDLY NOTIFY US, WE'LL BE VERY PLEASED TO BE ON SERVICE OF YOU.THANKS
