Home > Products > New Products > Evaporative Air Cooler Wet Curtain for Poultry House
Evaporative Air Cooler Wet Curtain for Poultry House
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Air Curtain | |
| Place of Origin | Shandong, China | Brand Name | sanhe | |
| Model Number | 7090/7060/5090 |
Product Description
specification of cooling pad
| 7090type | 7060type | 5090type | |
H ( mm) | 1500.1800.2000 | 1500.1800.2000 | Custom-made by client's requirments |
| W(mm) | 900.600.300 | 900.600.300 | Custom-made by client's requirments |
D (mm) | 100.150.200 | 100.150.200 | Custom-made by client's requirments |
h (mm) | 7 | 7 | 5 |
| a(°) | 45 | 45 | 45 |
| b(°) | 45 | 15 | 45 |
Evaporative Cooling Pad Feature As Follow:
1.Use the new material and the space crossing linking technology,high absorbability,high water-resistant,anti-mildew and long service life.
2.The product contains surface active agent,natural water absorbability,fast pervasion speed,lastiong effectiveness.A drop of water can diffuse in 4-5 seconds.Hight of absorb:60-70/minutes,200mm/1.5hours,can achieve international standard.
3.Struct production as per standard,width of 600mm cooling pad involves 85 sheets:raw material adopt imported kraft paper(100GSM,thickness 0.18-0.20mm,tension resistance at 70N,absorbability height as 45mm/min,moisture at 5-8% humidity at 18N)
4.Product don't contain phenol which easy to skin allergy and other chemical substances,when installed non-toxic harmless to human body,safety,energy,saving environmental protection and economic applicable.
Working Principle
When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.

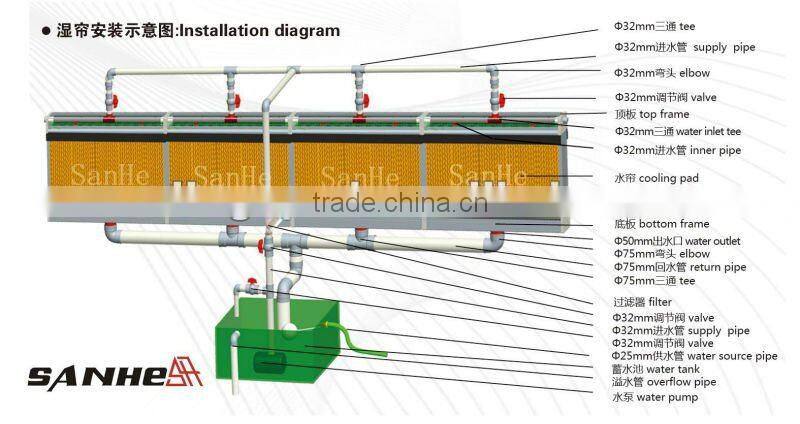

Installation diagram
