Home > Products > New Products > DJF Serise Centrifugal Shutter System Exhaust Fan/Poutry Fan

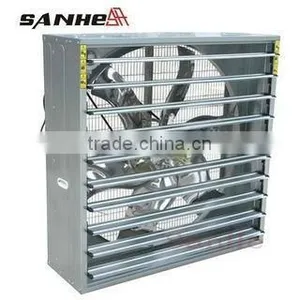

DJF Serise Centrifugal Shutter System Exhaust Fan/Poutry Fan

FOB Price

US$ 220 - 300 / Set

10 Sets(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

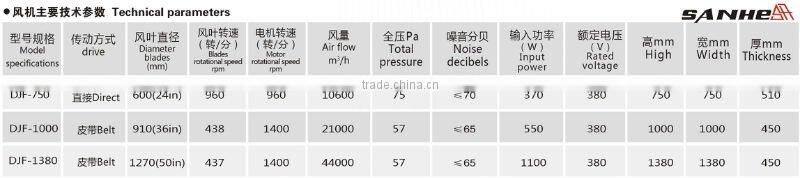

Electric Current Type	AC	Blade Material	Stainless Steel
Mounting	Wall Fan	Place of Origin	Shandong, China
Brand Name	YuyunSanhe	Model Number	DJF
Power	1100	Voltage	380
Air Volume	44000	Certification	CE

Product Description

1. SANHE fan blade is special designed for top grade efficiency which made of krupp stainless steel by punch forming.Large air volume,no deformation,no broken,no dust,attractive and durable,Thickness 1.2mm,surface finish BA grade.

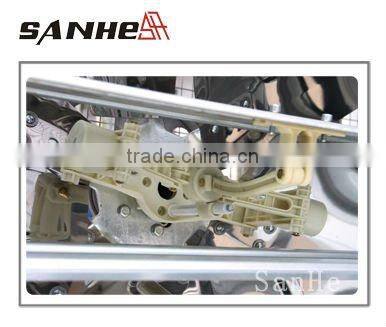

2. Centrifugal shutter system open the shutters at complete 90 degree ti ensure the lowest air resistance and biggest air volume.When close,the sealing can efficiently block light and wind into the poultry farm house.As the frist one adop high quality nylon PA66 to ensure the long service life.The fasteners of centrifugal system all are copper rivets,wear-resisting and no rust,flexible.Guide rod is made of 304 stainless steel,ensure the high strength,no dust,reduce frication.

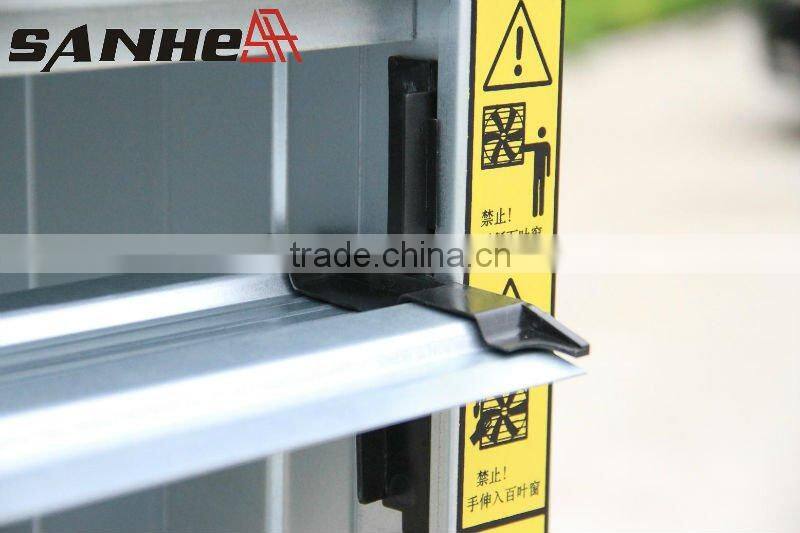

3.Shutter fixed parts are made of high quality nylon which ensure long service life,open flexibly.

shutter are made of galvanized sheet with thickness0.8mm and 1.5mm,ensure shutters no deformation,running stable.

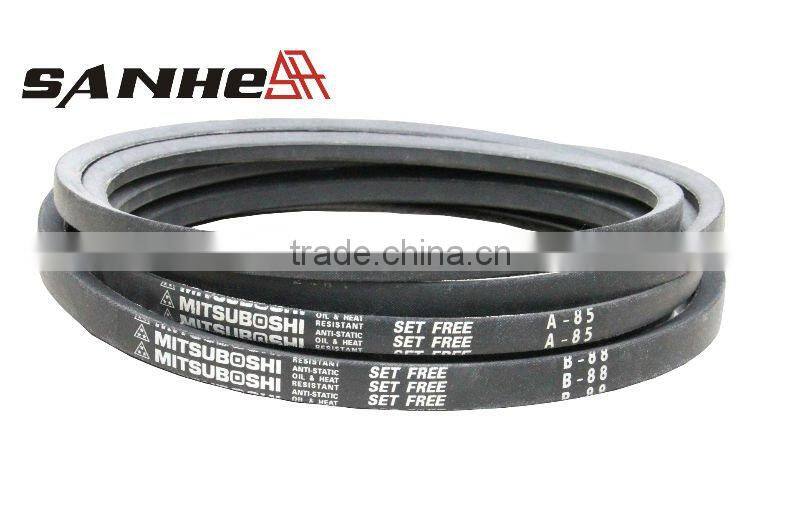

4.Belts are Japanese Mitsubishi brand,ensure the long service life,maintenance free,From 2010 the frist adopt Type B belt which 3 times longer service life instead of type A.

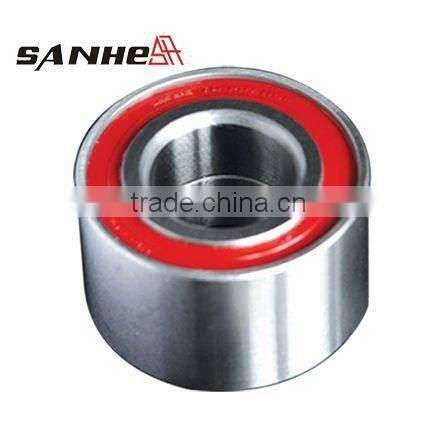

5.Fan bearing adopts imported double-row bearing with special waterproof design,water can't enter.High strength,lower noise,maintenance free and long service life.

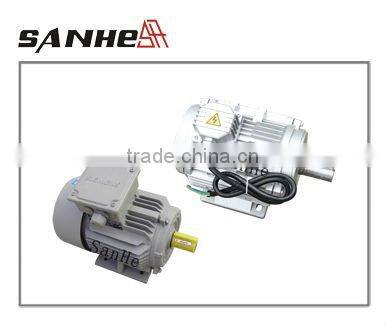

6.Both China famous motor and Siemens motor are available.Motor voltage and frequency can be customized.Chinese famous motor OEM by special design for fan,the frist put in the phase lack protection device which would power off when shortage of electricity.Motor protection grade IP55,insulation class F grade.
