SANHE Butterfly Cone Fan/Exhaust Fan With CE.ISO9001

Name: SANHE Butterfly Cone Fan/Exhaust Fan With CE.ISO9001
Brand: YuyunSanhe
SKU: 138096127

US$ 240 - 254 MOQ: 10 Sets

Key Specifications

Electric Current Type:

Mounting:

Wall Fan

Blade Material:

Stainless Steel

Shandong Yuyun Sanhe Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type AC

Mounting Wall Fan

Blade Material Stainless Steel

Place of Origin Shandong, China

Brand Name YuyunSanhe

Model Number DJF

Voltage 380v

Power 1100w

Air Volume 51020m3/h

Certification CE

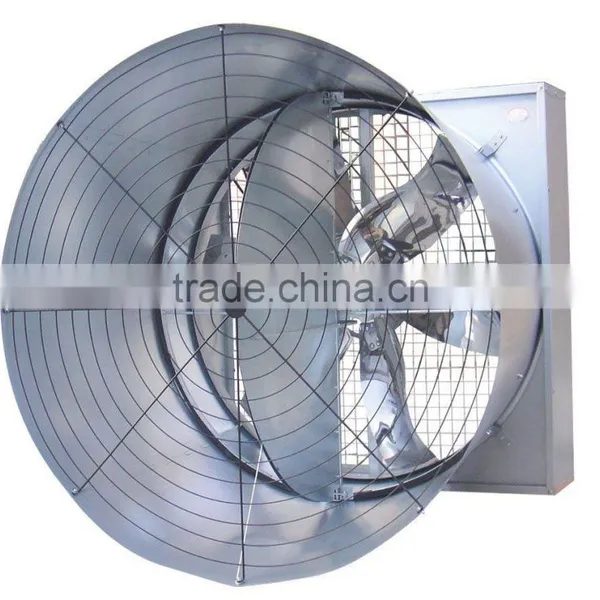

DJF (e) series Double-door Cone Fan:

This fan adopts advanced frontward open system, butterfly type, with two semicircle shutter doors, wind resistance is small, good air-tightness and high efficiency.
For the cone part, adopt new design, plug-type connection, not need many bolts and nuts for tightening as before, intensity of labor is reduced, also improve aesthetic results of fan.
The belt tensioned device made of aluminum-magnesium alloy, non-deforming, long service life. This device make the belt inside tight up, effective for avoiding the belt distortions in reverse direction, so prolong the belt life time, saving cost.
When the two semicircle shutter doors close, the rubber sealing ring make good air tightness. In different condition, not run all the fan, the air could pass through the space of stop fan, use this type fan, could avoid this problem. Ensure air pass through the evaporative cooling pads or air inlet only, so that greatly improve the fan efficiency, (as compared with different type of same size fan, improve efficiency 15-20%)
The fan motor installed on the top left corner, effective protection of the motor. Avoid wind resistance. And the motor panel connection is reasonable, fixing fan frame more stronger.

Technical Parameter:
