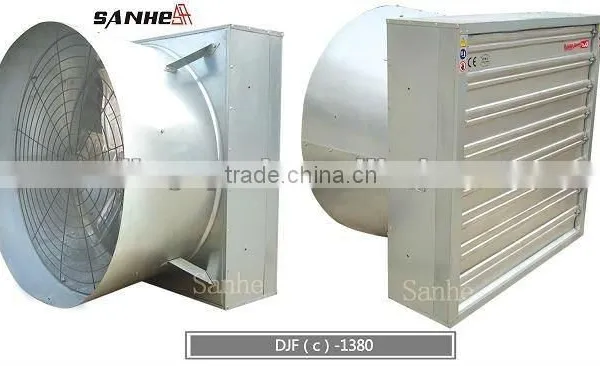

Cone Ventilator Fans 50"(DJF-C Series)/horn-cone Fan

Cone Ventilator Fans 50"(DJF-C Series)/horn-cone Fan thumbnail-1
Cone Ventilator Fans 50"(DJF-C Series)/horn-cone Fan photo-1
US$ 240 - 280 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Shandong Yuyun Sanhe Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name YuyunSanhe
Model Number DJF
Voltage 380
Power 1100
Air Volume 44000
Certification CE

Our Equipments are widely used is all types of agricultural, horticultural and light industrial applications.

  1. Reasonable cone designing, low noise, big air flow, strong ventilation, low operating cost.
  2. Imported bearing, high strength, and low noise, durable.
  3. This fan adopts air downstream principle, PVC shutter or aluminum shutter, antioxidant, light weight, no deformation, no breaking and durability.
  4. There are two types of fan house, slant wall type and upright wall type, can satisfy various needs of different customers.
  5. The high efficient and energy-saving motor has passed the national CCC certification. Protection class:IP55, insulation class: F grade.

 DJF(c) series cone fan(horn-cone fans technical parameter



Model specification DJF(c)-900(30") DJF(c)-1100(40") DJF(c)-1220(43") DJF(c)-1380(50")
Drive Belt Belt Belt Belt
Diameter blades(mm) 750 1000 1100 1250
Blades rotational speed(rpm)  630  600  460  439
 Motor rotational speed(rpm)  1400  1400  1400  1400
 Air flow m3/h  22000  32500  38000  44000
 Total pressure  65  70  73  80
 Noise decibels  ≤65  ≤70  ≤70  ≤70
 Input power(W)  370  750  750  1100
 Rated voltage(V)  380  380  380  380
 Height(mm)  900  1100  1220  1380
 Width(mm)  900  1100  1220  1380
 Thickness(mm0  1050  1280  1280  1480





Installation Site





Cone Ventilator Fans 50"(DJF-C Series)/horn-cone fan
