Professional Sanhe DJF(e) Series Front Shutter Door Exhaust Fan With CE, ISO9001 Certificate

Professional Sanhe DJF(e) Series Front Shutter Door Exhaust Fan With CE, ISO9001 Certificate thumbnail-1
Professional Sanhe DJF(e) Series Front Shutter Door Exhaust Fan With CE, ISO9001 Certificate photo-1
US$ 240 - 254 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Shandong Yuyun Sanhe Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name Yuyunsanhe
Model Number DJF
Voltage 380v
Power 1100w
Air Volume 51020m3/h
Certification CE



YuyunSanHeDJF(e) front shutter double-door cone fan|butterfly cone fan







Our products are widely used in agriculture, industry and other high population concentration or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket.

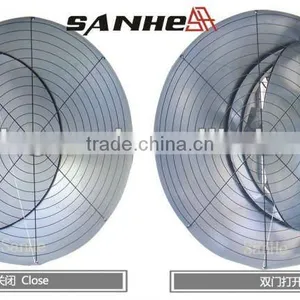

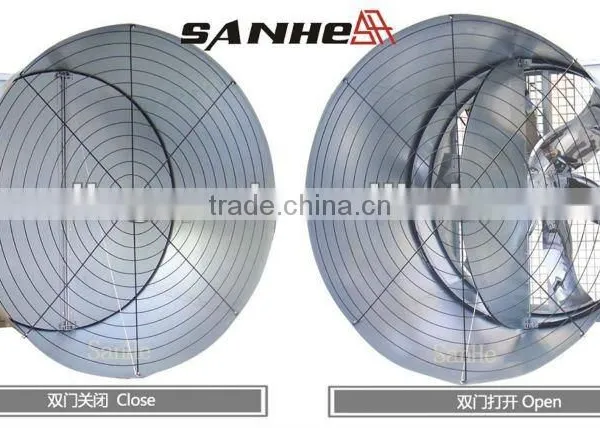

1. Using advanced front double door opening device, small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power.



2.Galvanized steel frame is made of 180g/m²galvanized layer, avoid rust.



3. Fan double doors closed with the rubber sealing which effectively avoid air backflow when start fans at different time. Greatly improve the operation efficiency by 15-20% compared with the same power fan.



4. Sanhe fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.



5. Fan blades are adjusted by intelligent dynamic-balance tester, ensure the fan smooth running, lower vibration, less noise, increase stability



6. The first adopt Type B belt which 3 times longer service life instead of type A.



7. Hot-dip galvanized blade support and safe net ensure never rust.



8. Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.

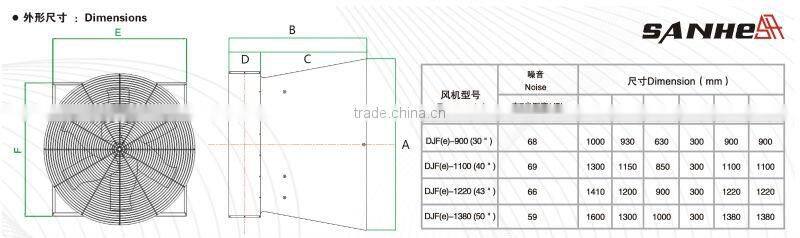

Specification:





Model specifications

Diameter Blades

Air Flow

Total Pressure

Noise Decibels

Input Power

Rated Voltage

Motor Rotational Speed

Blades Rotational Speed

Height

Width

Thickness






cm

m³ /h

pa

db

w

v

rpm

rpm

mm

mm

mm




DJF(e)-900

750

600

1400

24000

65

< = 65

370

380

900

900

930



DJF(e)-1100

1000

600

1400

36000

70

< = 65

750

380

1100

1100

1150



DJF(e)-1220

1100

460

1400

41000

73

< = 65

750

380

1220

1220

1200



DJF(e)-1250

1250

439

1400

51020

80

< = 65

1100

380

1380

1380

1300

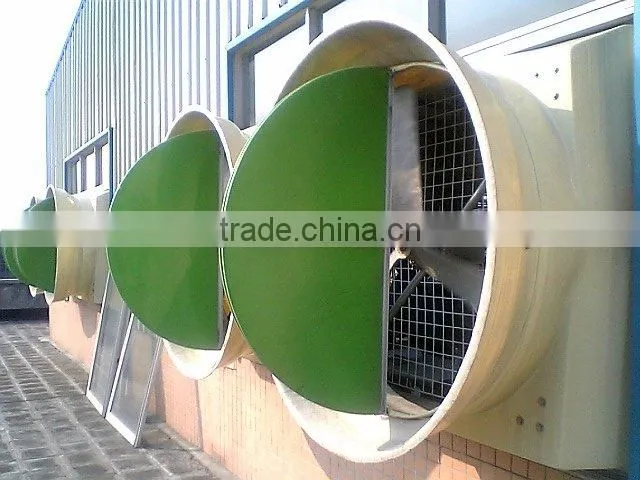

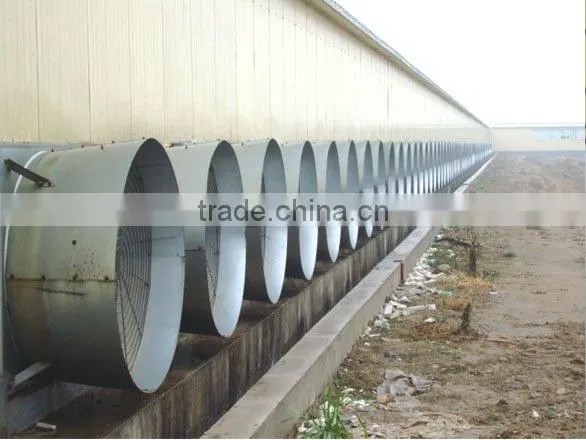

Installation Sites:



Professional Sanhe DJF(e) series Front Shutter Door Exhaust Fan with CE, ISO9001 CertificateProfessional Sanhe DJF(e) series Front Shutter Door Exhaust Fan with CE, ISO9001 Certificate
