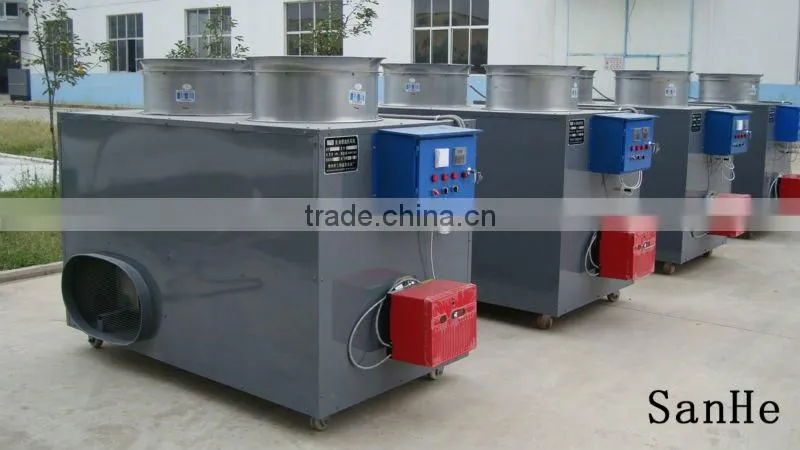

The Outstanding Quality in Auto Diesel Poultry Heater

Name: The Outstanding Quality in Auto Diesel Poultry Heater
Brand: SANHE
SKU: 138095043
Availability: InStock

US$ 2,000 - 2,500 MOQ: 5 Sets

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SANHE

Model Number:

FSH -5,/-10/-20

Shandong Yuyun Sanhe Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SANHE

Model Number FSH -5,/-10/-20

Specifications

Heating area :300/600/1200 square meters .
Stainless steel burner , heating efficiency amount to 90%.

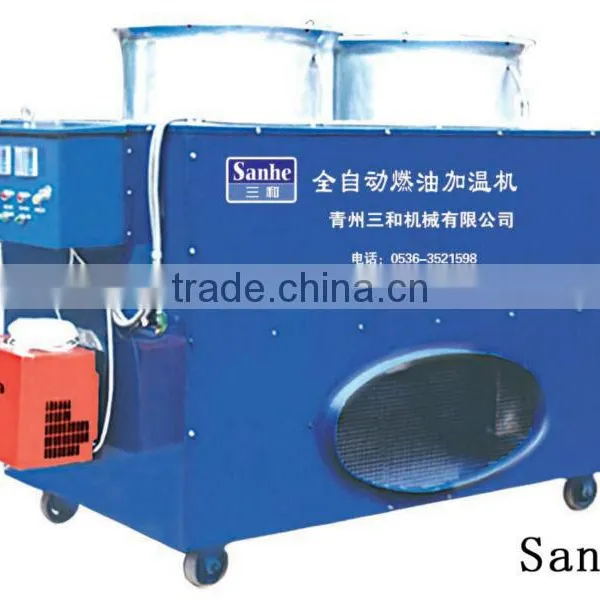

SANHE AUTO-OIL HEATING MACHINE

Features:

1.Heating area: 300/600/1200 square meters.

2.Stainless steel combustion chamber, thermal conversion as high as

90%

3.Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube.

4.Double air input and output design.

5.Equipped with the world brand Riello burner. Automatic control

system operate easily, warming quickly. After setting, burner would

automatically start on, fire, supply air and stop for keeping steady

temperature. Save large labor and financial resources.

6.Heater exchanger adopt the special three-pass design.

7.Special insulation design which minimize heat loss.

8.All the technical index meet the national environmental

protectionⅠstandard.

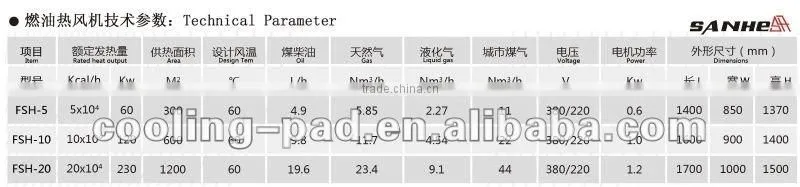

Technical Parameter:

Technical Parameters	50000Kcal	100000Kcal	200000Kcal
Heat output power kcal/h	50000 kcal/h	100000 kcal/h	200000 kcal/h
Heat efficiency ≥%	≥90%	≥90%	≥90%
Fuel	Diesel oil	Diesel oil	Diesel oil
Consumption kg/h	2-4.9 L/h	5-9.8 L/h	12-19.6 L/h
Way of control	Auto	Auto	Auto
Air flow m³/h	5000 m³/h	5500 m³/h	7000 m³/h
Temperature rise °C	80-120 °C	80-120 °C	80-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	0.6Kw	1.0Kw	1.5Kw
Diameter of air outlet mm	400mm	400mm	400mm
Weight kg	400Kg	600Kg	700Kg
Dimension length×width×height mm	1400×850×1370	1600×900×1400	1700×1000×1500
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service
