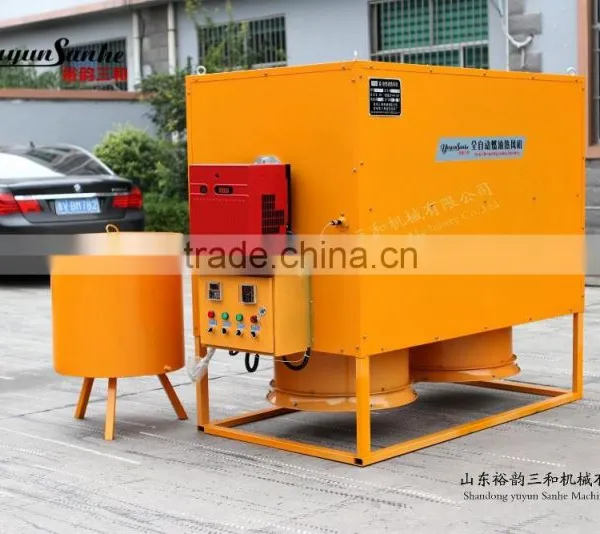

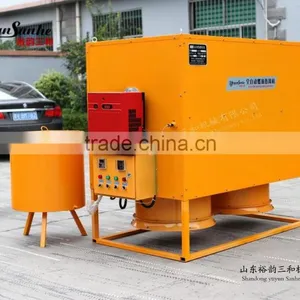

Poultry House Heating Equipment Diesel Oil-fired Hot Blast Stove with CE Certificate
Description:
|
Application: widely applied for poultry house, livestock farm, chicken house, hen house, pig house, breeding house, greenhouse, workship, factory, and also used for drying tea, brick, medicine, noodel, and so on. |
|

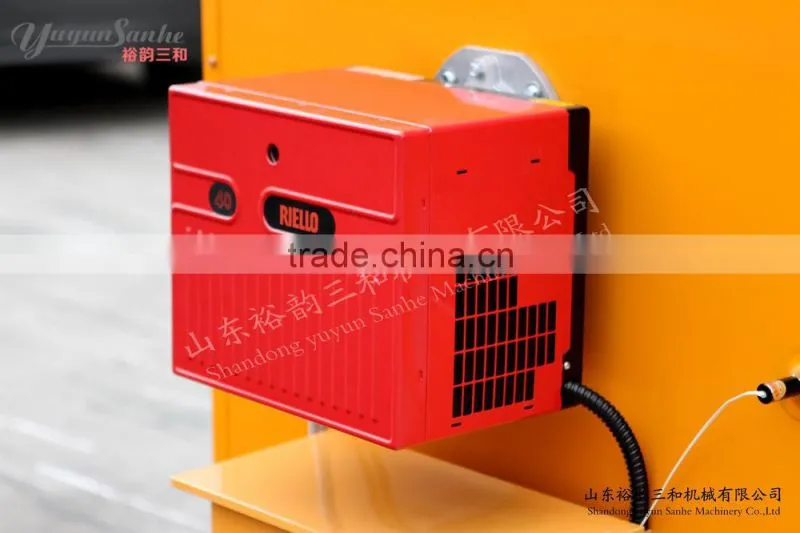

SANHE Oil-burning Heating Machine is equipped with Italian-imported burner. Automatic oil supply, automatic ignition, automatic adjustment of diesel oil and air combustion proportion. Working safely without black smoke. All indexed meet the national 1st-class area environmental protection standard. |
|

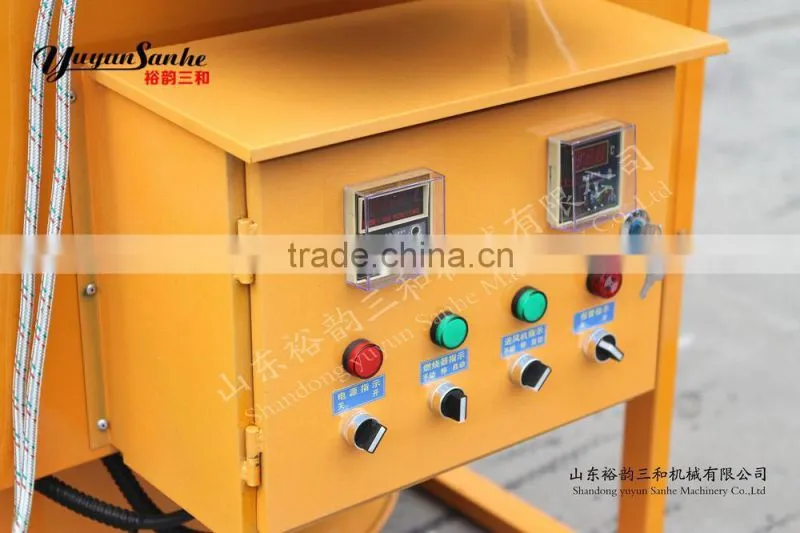

SANHE Diesel Oil-burning Heating Machine is equipped with accurate digital temperature-control box, which operate the heater to start and stop work automatically by setup datas according to house temperature. |
|

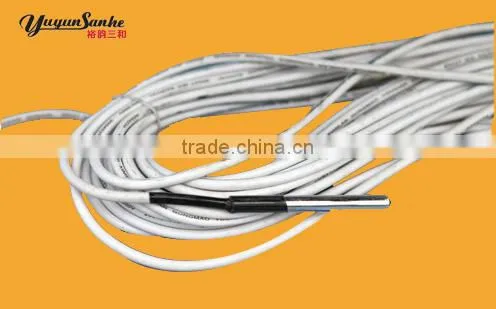

SANHE Heating Machine is equipped with 15m stainless steel water-proof temperature sensor as per the request of house. It can make accurate measurement even in the high temperature and humidity environment. |
|

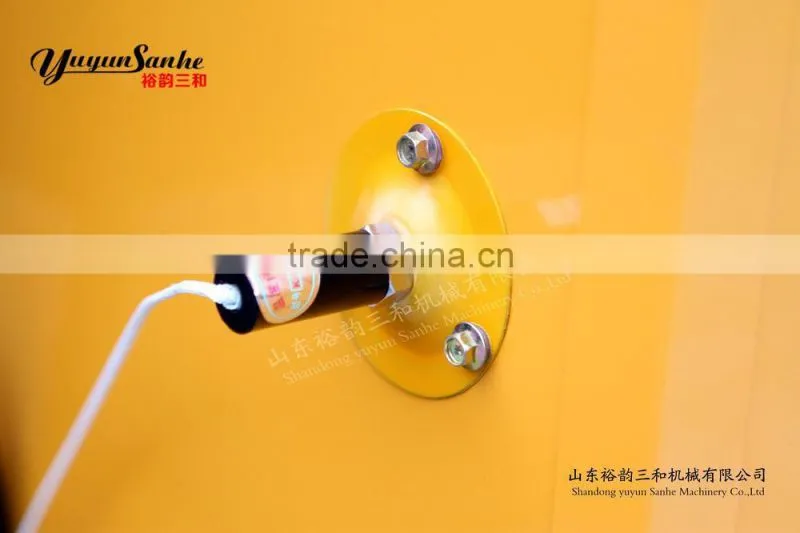

SANHE Heating Machine is equipped with heat-resistant stainless steel detector. The Riello burner will stop diesel supply as soon as the detector feel that the furnace box is overheating, ensuring safe running. |
|

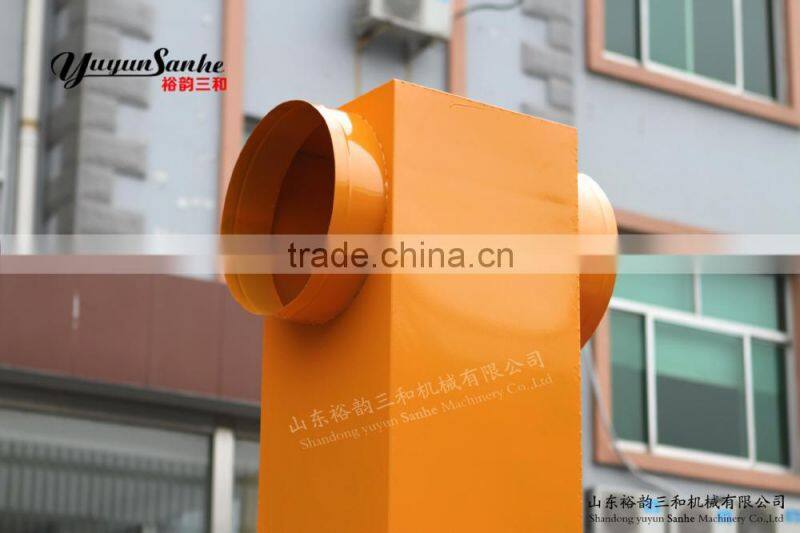

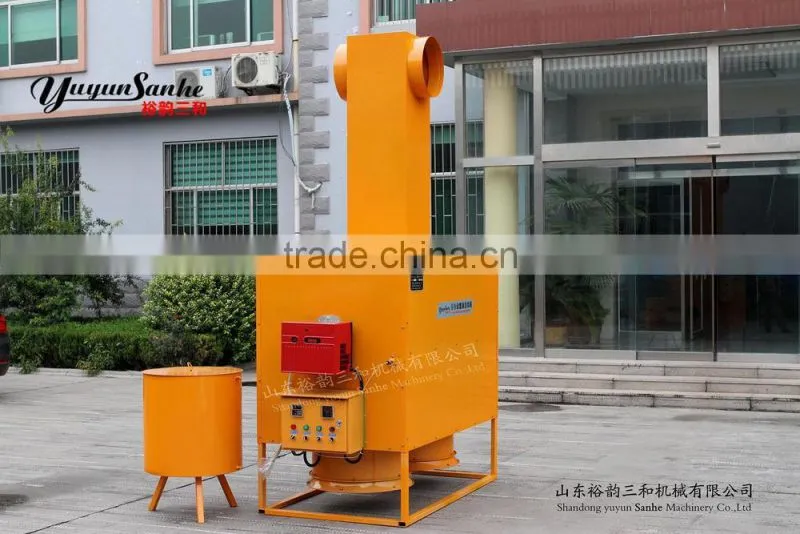

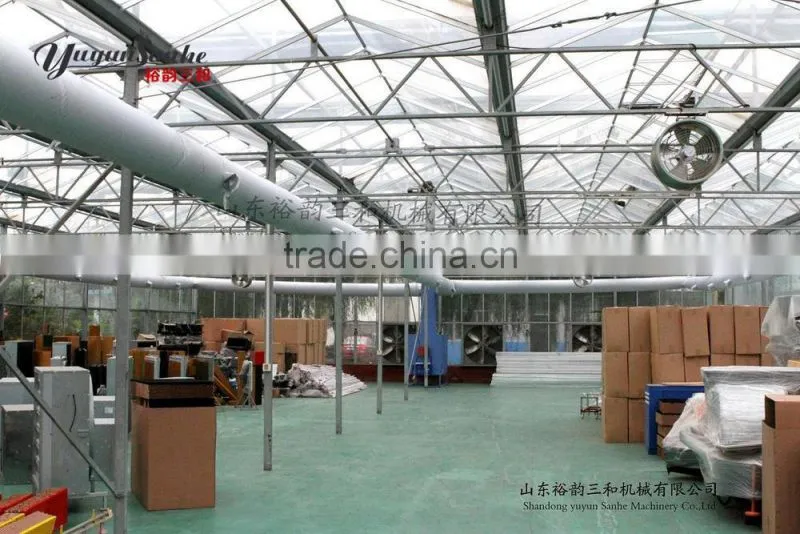

The height of hot air supply duct of SANHE Heating Machine can be customized. Commonly we suggest clients to install the supply pipe along with crossgirder, avoiding occupying ground space. |
|

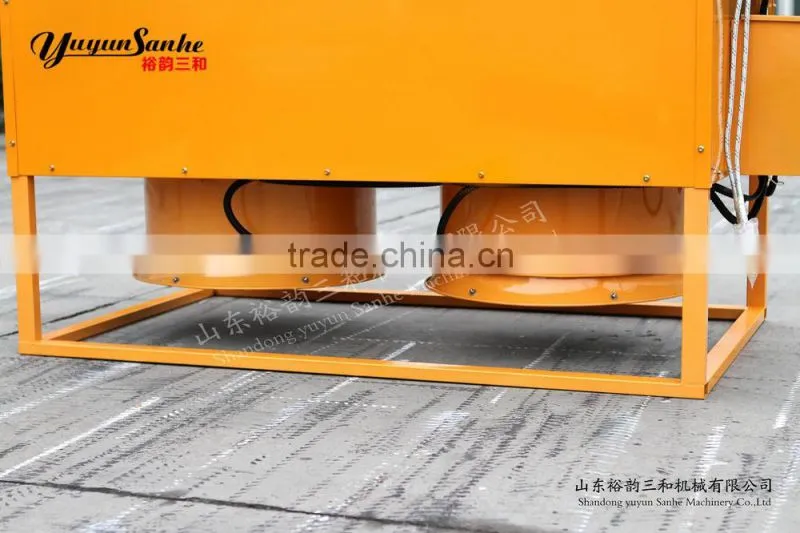

SANHE Heating Machine is equipped with exhaust fan in the bottom to draw the ground cold air into furnace and send out the hot air from the top outlet to warm the house. This circular heating way achieve the best warming efficiency. |
|
SANHE Heating Machine is equipped with unitary air supply pipe, easier installation, good operation and aesthetic outlook. The pipe is made of high strength polyester material, avoiding weight-adding problem when its surface has water drops. |
|

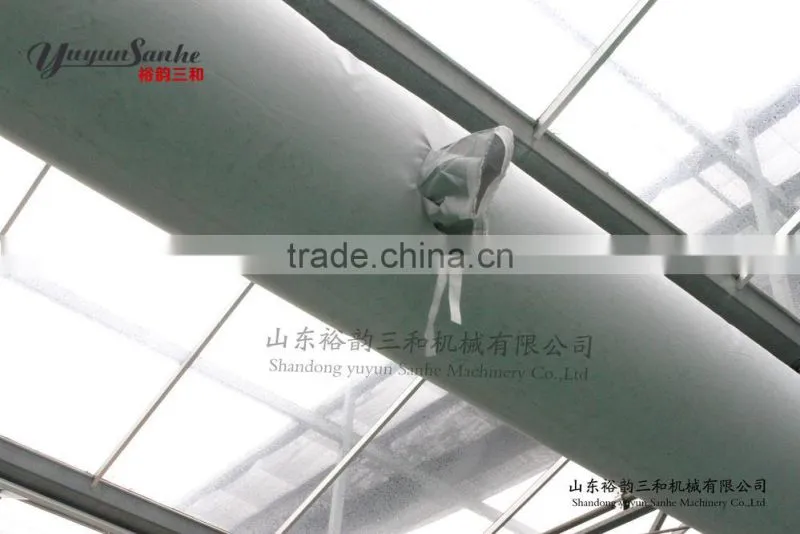

Air supply outlet has ropes to adjust outlet size. |
|
SANHE Heating Machine is equipped with stainless steel chimney, no rusting, effectively extending its lifespan. |
|
|

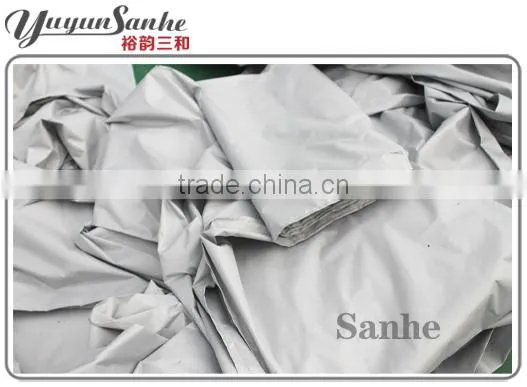

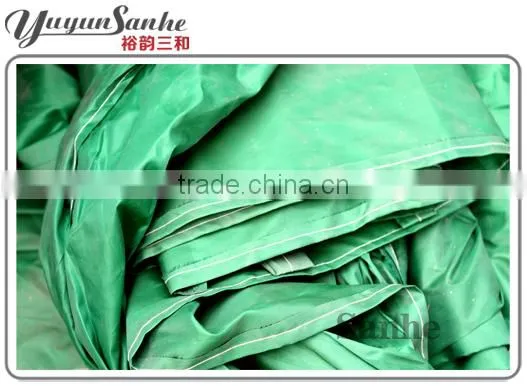

There are two colors of supply pipe for client's selection: one is silver gray, another is green. |
Technical Parameter:
MODEL |
FSH-5 |
FSH-12 |
FSH-15 |
FSH-20 |
|
Thermal output (kcal/h) |
50000 kcal/h |
120000 kcal/h |
150000 kcal/h |
200000 kcal/h |
Power( KW) |
60Kw |
140Kw |
174Kw |
230Kw |
|
Heat effciency ≥% |
≥90% |
≥90% |
≥90% |
≥90% |
Fuel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Fuel consumption (kg/h) |
2.3-5kg/h |
4.5-10kg/h |
7-15kg/h |
8-18kg/h |
Control method |
Auto |
Auto |
Auto |
Auto |
|
Fan air volume (m³/h) |
5000m³/h |
5500 m³/h |
7000 m³/h |
|
|
Temperature rising range (℃) |
80-120 ℃ |
80-120 ℃ |
80-120 ℃ |
80-120 ℃ |
Power supply (V/Hz) |
380V/220V/50Hz |
380V/220V/50Hz |
380V/220V/50Hz |
380V/220/50Hz |
Power (kw) |
0.6 Kw |
1.0 Kw |
1.2 Kw |
1.2 Kw |
Hot air outlet Dia. (mm) |
400mm |
400mm |
400mm |
400mm |
|
Diemension (L×W×H)mm |
1770×900×1500 |
1870×1000×1500 |
1970×1000×1600 |
2070×1000×1700 |
Frame material |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Guarantee period |
One year warranty, lifelong service |
|||
Why choose us?
1. We are the biggest manufacturer and factory, NOT reseller or trading company.
All the fan parts, like frames, blades, shutter, blades support, protection net, centrifugal system, swung drop hammer, and other plastic parts are all made by ourselves, thus saving cost and controlling good quality for long service life.
2. Service.
1). Pre-sale service: we can help you with the prophase installation design, according to your special demand, with our 15 years experience.
2). Sale service: we can do all the exporting process according to customer's request.
3). After-sale service: within 1 year guarantee period, the easy broken accessories are free of charge for replacement.
3. Big production capacity, fast delivery.
Exhaust Fan: 400 sets/day
Cooling Pad: 180 cbm/day
Light Trap: 80 sets/day
Air Inlet: 120 sets/day
Heating Machine: 4 sets/day
Shandong Yuyun Sanhe Machinery Co.,ltd, located in Qingzhou City, Shandong Province, China and established in 1999, is a professional manufacturer of ventilation and cooling system, humidufication an heating equipment in Asia. It has got many titles these years, such as "China Ten Top Brands Fan", "AAA Level Of National Quality Company","Honesty and Qualitative Enterprise". Our company strictly executes quality standard, and has passed ISO9001:2008 international quality system certification, and all procedures of production and test are under strict standard according to customers' requirement.

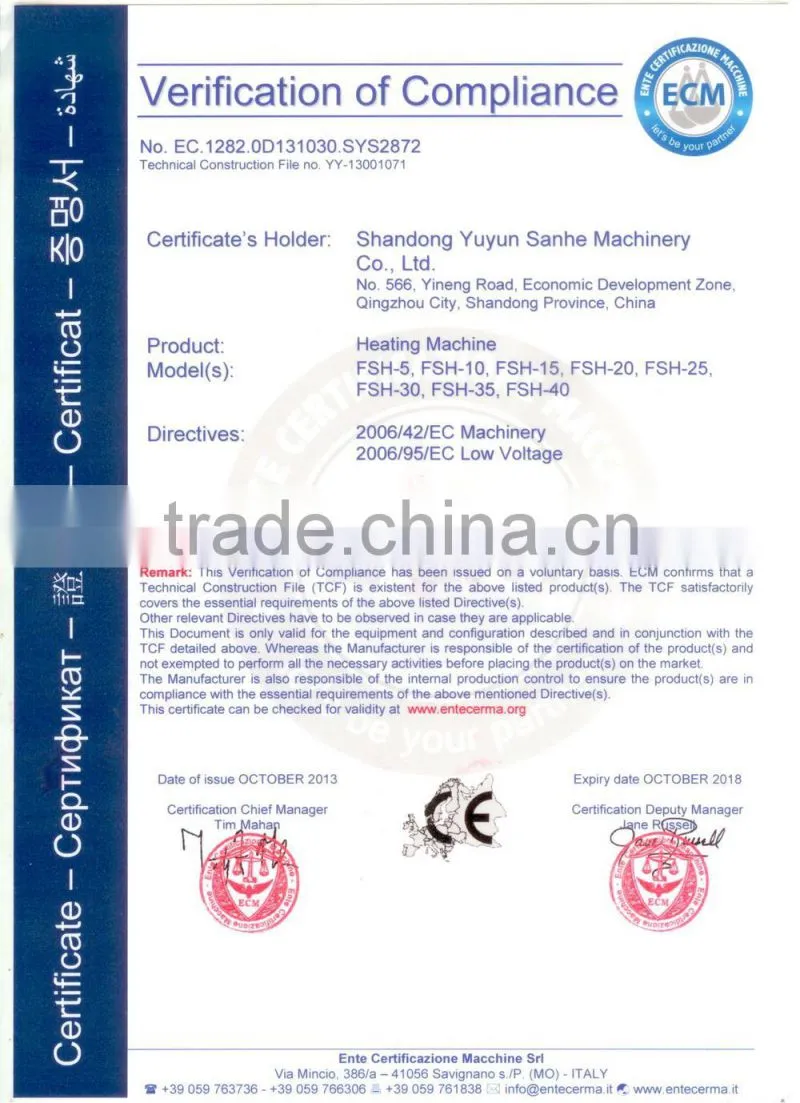

In present, our products contain 60 series totally over 200 varieties of specifications, such as poultry fan, negative pressure fan, exhaust fan, gardening fan, circulation fan, cooling pad, automatic coal-burning heater, oil-burning heater, gas-burning heater, electrical heater, drier and so on, which are widely used in agriculture and industrial field and applicable to animal husbandry, poultry house, livestock breeding,flowers and plants, greenhouse, factory workshop, textile, chemical, medicine, tea, vegetable storage and supermarket. Our products have passed "CE" and "CCC" certificates.
Nowadays, we have set up more than 200 sales branches in more than 20 provinces in China, and our products have been exported to more than 50 countries in Asia, Europe, Middle East, South Africa, America, Australia and won high reputation.
Q : How is the quality of your products?
A : All the products are manufacturer strictly according to national and international standard, and passed CE Certification and ISO9001:2008 International Quality Management System Certification. SANHE products have been exported to Germany, Italy, France, Netherlands, Canada, USA, Australia, Poland, Spain, Russia, Korea, Japanese, and most of Middle East and Asia countries, totally more than 50 countries, and have got great market and reputation in these countries. You are warmly welcomed to visit our factory to inspect our products quality.
Q: How about guarantee period?
A: Guarantee period of SANHE Exhaust Fan is 1 year, and all easy broken accessories is free to charge for replacement.
Q: How about price?
A: We are the BIGGEST manufacturer in Asia, we try our best to save cost for customers on promise of high quality. We can not make sure to give you the cheapest price in China, but we make promise to give you the best quality, most competitive price and best cost performance. Our quality and price can not be compared simply with that of other reseller, trade company or small individual workshop.
Q: Can you accept an inspection of a Third-party Detection Institution?
A: Yes, of course. Our products have been inspected by some Third-party Detection Institutions authorized by customers before, and have got great inspection report for customers.
Q: How about MOQ?
A: Sample order is available. Usually MOQ of Exhaust Fan is 10 sets, MOQ of Cooling Pad is 5 cubic meters, and MOQ of Heating Machine is 1 set.
Q: How about delivery?
A: In common condition, no special motor, delivery time is within 7 days on receipt of deposit.
Q: How about price term?
A: FOB, CFR and CIF are available. We have long-term cooperation freight forwarders to apply good freight from the biggest shipping companies and handle all the shipping process.
Q: How about payment term?
A: 1). T/T: 30% in advance as deposit, 70% balance before the shipment or against the copy of B/L.
2). B/L: 30% T/T in advance as deposit, 70% balance paid by irrevocable L/C at sight.
