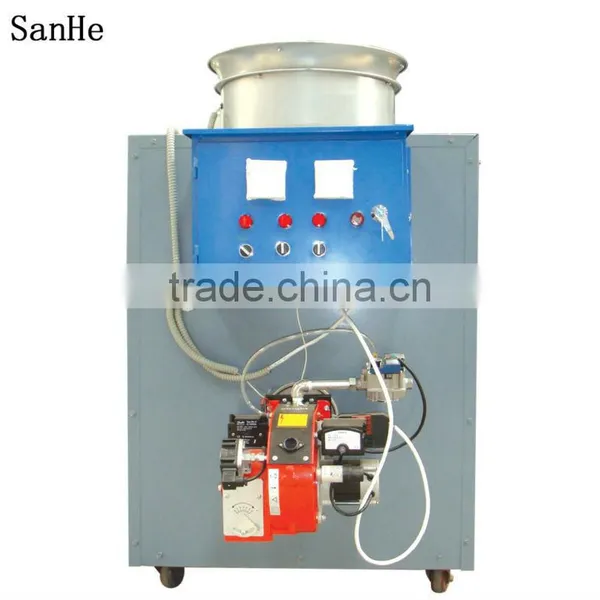

Sanhe Greenhouse Automatic Gas Buring Heating Machine
Features:
1. Adopt the latest intermaional technology, unique large volume desigin in combustion chamber
2. Euipped with the world brand riello burner ensure ful combustion, higher efficiency and lower failure rate
3. Adopt the advanced corrugated furnace design which increasing the heating area, resist its expanding after heated.
4. Thermal convesion reach as high as 99.9%, stable air supply.
5. Automaticontrol system operate easily, warming quickly. After setting, burner would automatically start on, fire, supply air and stop for keeping steady temperature.
6. Special insulation design which minimize heat loss
7. All the technical index meet the national environmet protection I standard.
Technical data:
Technical Parameters |
50000Kcal |
100000Kcal |
200000Kcal |
Heat output power kcal/h |
50000 kcal/h |
100000 kcal/h |
200000 kcal/h |
Heat efficiency ≥% |
≥90% |
≥90% |
≥90% |
Fuel |
Natgas |
Natgas |
Natgas |
Consumption kg/h |
3-6 Nm³/h |
9-12 Nm³/h |
18-24 Nm³/h |
Way of control |
Auto |
Auto |
Auto |
Air flow m³/h |
8700m³/h |
14000 m³/h |
17400 m³/h |
Temperature rise °C |
80-120 °C |
80-120 °C |
80-120 °C |
Power Source V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric power kw |
0.6Kw |
0.7Kw |
1.2Kw |
Diameter of air outlet mm |
400mm |
400mm |
400mm |
Weight kg |
400Kg |
600Kg |
700Kg |
|
Dimension length×width×height mm |
1400×850×1370 |
1600×900×1400 |
1700×1000×1500 |
Material of frame |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Quality guarantee period |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |

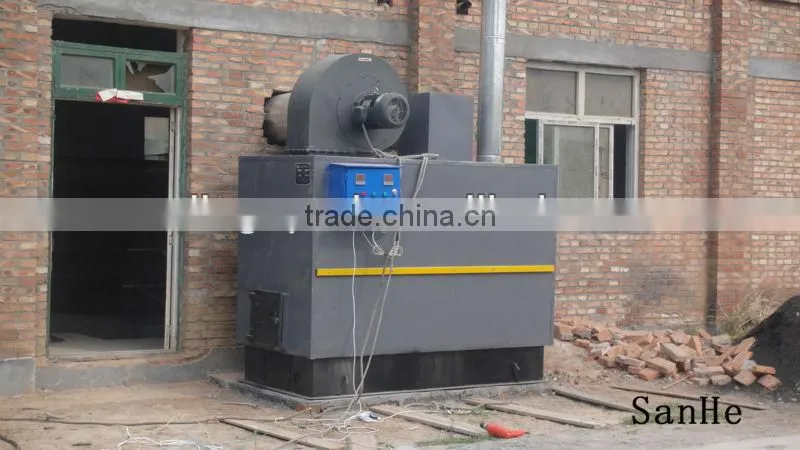

Installation:
