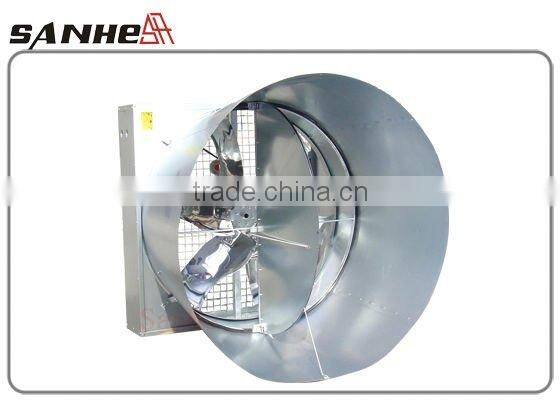

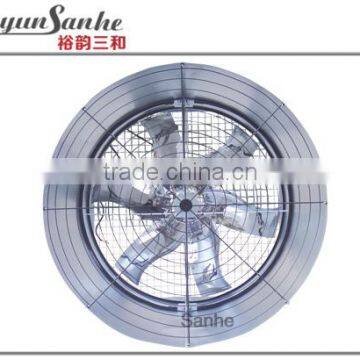

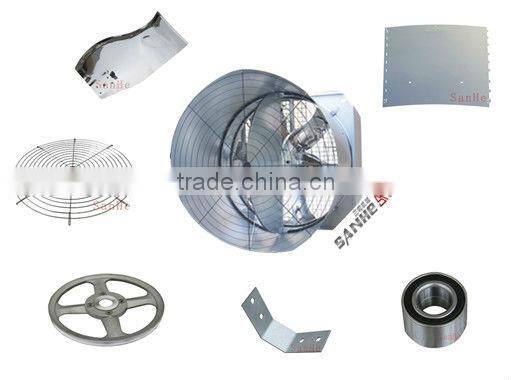

Sanhe Double-door Cone Fan(Butterfly Cone Fan)
Our Ventilation & Cooling equipments are widely used in Poultry house, Greenhouse, Workshop, Textile industry, Chemical industry, Supermarket, Storage, etc, Where need Fresh air Ventilation!
1. SANHE Exhaust Fan Brief Introduction:
1) Size: DJF(e)-1100 / DJF(e)-1220 / DJF(e)-1380
2)Dimention: 1100*1100*1150mm(40inch) / 1220*1220*1200mm(43inch) / 1380*1380*1300mm(50inch)
3) Dia. of Blades: 1000mm / 1100mm / 1270mm
4) Air Flow Volume: 36000m³/h , 41000m³/h , 51020m³/h
5) Noise Decibel: ≤65db
6)Input Power: 750W / 750W / 1100W
7) Voltage: 380V or 220V or 415V
8) Frequency: 50HZ or 60HZ
9) Phase: 3phase or single phase
2. SANHE Exhaust Fan Detailed Introduction:
|
Using advanced front double door opening device, small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power.
|
|
Fan double doors closed with the rubber sealing which effectively avoid air backflow when start fans at different time. Greatly improve the operation efficiency by 15-20% compared with the same power fan.
|
|

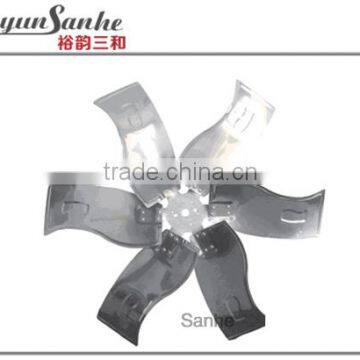

Sanhe fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
|
|

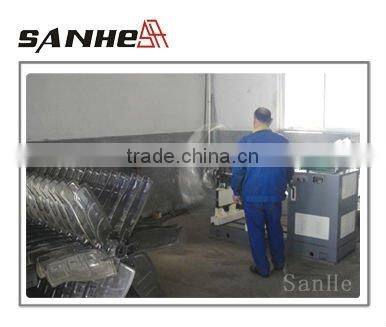

Fan blades are adjusted by intelligent dynamic-balance tester, ensure the fan smooth running, lower vibration, less noise, increase stability.
|
|
The first adopt Type B belt which 3times longer service life instead of type A.
|
|
The sole manufacturer which adopt Hot-dip galvanized blade support and safe net ,to ensure never rust in the future use ,adopt high grade standard accessories , not rust
|
|

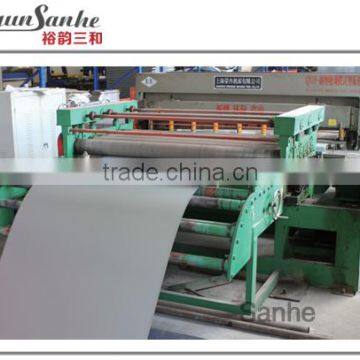

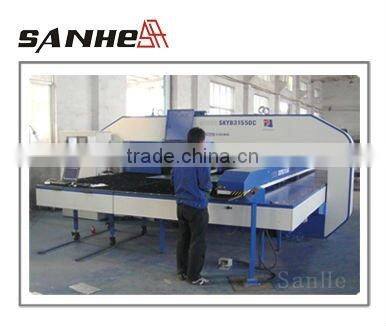

Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.
|

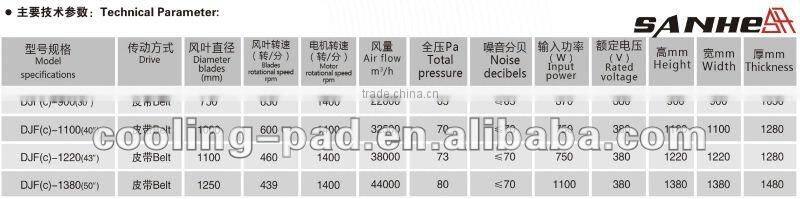

3. SANHE Exhaust Fan Technical Parameter:

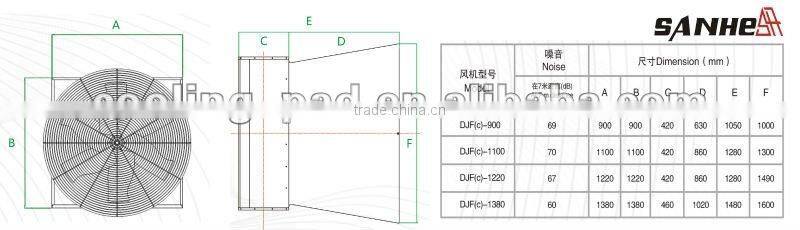

4. SANHE Exhaust Fan Dimention Graph:
The Biggest Manufacture Base In CHINA (MAINLAND):
1. Package with carton box in completely assembled or unassembled.
For the most popular type DJF(e)-1380
1×20GP loads assembled 20pcs, unassembled 100pcs.
1×40HC loads assembled 35pcs, unassembled 220pcs.
2.Shipped with dry containers, can be deliver to Qingdaro Port or destination Port.
1. Sample is available, it needs pay first.
2. The Galvaized Sheet frame, and the Stainless Steel frame is available.
3. Biggest professional manufacturer of ventilation, cooling, heating system in Livestock Farm, Greenhouse planting and Industrial field, which can supply you competitive price with excellent quality.
4. Big production, management and sale team, which can give you best support.
5. High production capacity, fast delivery.
Exhaust Fan 12,000sets/months
Evaporative Cooling Pad 5,0000m3/month
Light Filter 2,400sets/months
Air inlet 3,500sets/months
Heating Machine 120sets/months
1. Price items: EXW, FOB Qingdao, CFR or CIF
2. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy. Or 100% L/C at sight. It is negotiable.
3.Qingdao Port is the nearest loading port, then Shanghai Port, Ningbo Port, Shenzhen Port, and so on.....
4. The delivery time is in common condition, 7 days on receipt of down payment.
5. MOQ is 5 sets for exhaust fan, 1 set for auto heater and 5 cubic meter for cooling pad.
Please contact me without delay, if our products are suitable for you.
(You'd better add the detailed model,purchase quantity, trade term, port of destination and other details in the inquiry,only in this way can we give you a exact quote!)
We welcome friends from the world come to visit our company with sincerity!
