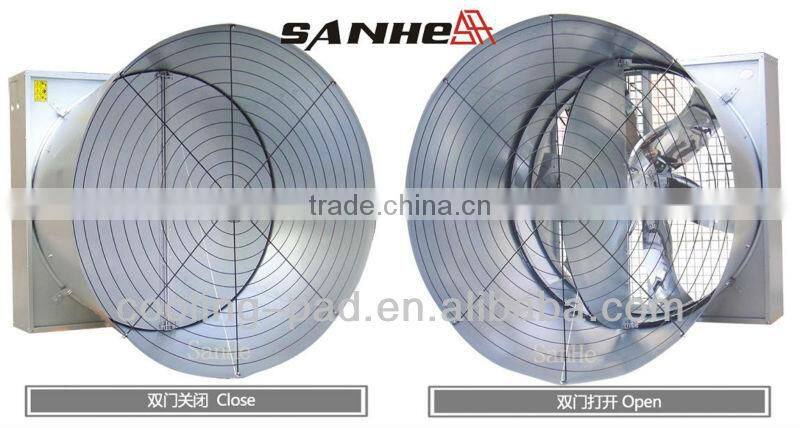

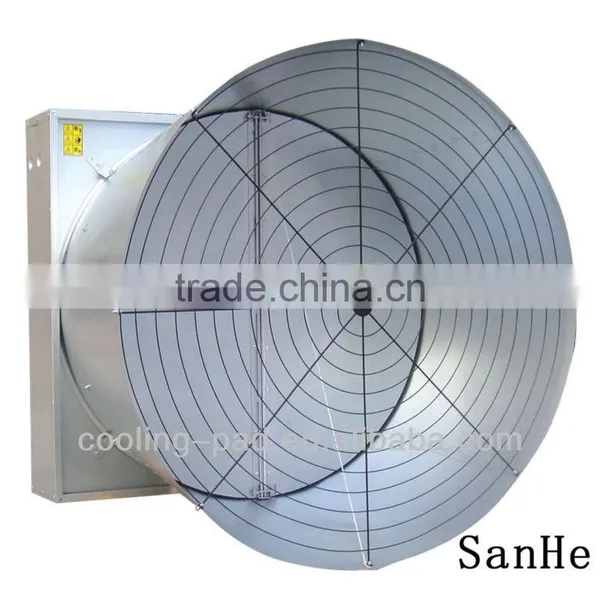

Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan

Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan thumbnail-1
Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan photo-1
US$ 240 - 254 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Shandong Yuyun Sanhe Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name SANHE
Model Number DJF(e) Series
Voltage 380V
Power 0.37KW-1.1KW
Air Volume 24000-52000cbm/h
Speed 439-630rpm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Technical Parameter

                                                                                   Technical Parameter



Model    Drive Type Blade Diameterm (m)  Blade Rotational Speed rpm Motor Rotationalsppeed rpm Air Flow (cbm/h) Total Pressure Noise Decibels Power  ( KW) Voltage (V) Height   mm Width   mm Thickness mm
DJF(e)-900 Belt 750 630 1400 24000 65 ≤65 0.37 380 900 900 930
DJF(e)-1100 Belt 1000 600 1400 36000 70 ≤65 0.75 380 1100 1100 1150
DJF(e)-1220  Belt 1100 460 1400 41000 73 ≤65 0.75 380 1200 1220 1200
DJF(e)-1380 Belt 1270 439 1400 51020 80 ≤65 1.1 380 1380 1380 1300



1. Reasonable cone design, improve exhaust power. Large air volume, strong draft capacity, stable per-

    formance. Aluminum alloy shutters,light and attractive.

2. Krupp stainless steel fan blade by punch  forming. Special blades shape design,large air volume, no



    deformation,stable air volume. Thickness 1.2mm, surface finish BA grade.

3. High strength aluminum-magnesium alloy  fan belt pulley by die casting reducing the weight of blade

    impeller, high corrosion resistance.

4. Fan bearing adopts imported double-row bearing with special waterproof design. High   maintenan-

    ce strength, lower noise, free maintenance and long service life.



5. Fan blades adjusted by intelligent dynamicbalance tester, ensuring smooth running, lower vibration,

    less noise, high stability.

6. Hot-dip galvanized blade support and safe net, never rust.



7. Complete new CNC production line improving fan quality up to top grade, aesthetic appearance.



























 Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan

______________________________________________________________________________________________________________-

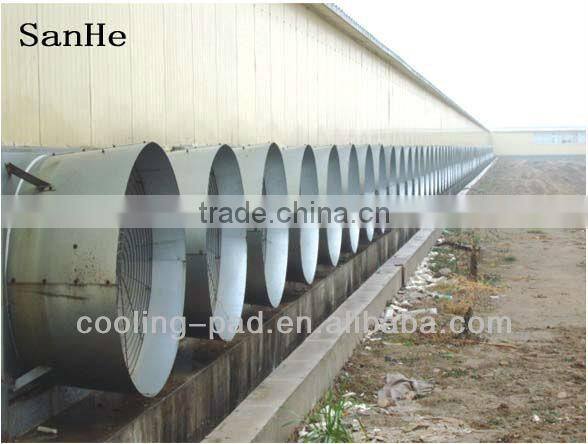

Installation Site



 Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan





  Manufacture Base In CHINA(MAINLAND)

Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan

   SANHE Company Supply Many Types of Exhaust Fan



Rubber Sealing DJF(e) Series Double-door Butterfly Cone Fan





 High quality  is our mission!  Good after-sale service is our obligation!

Any of your request will be highly appreciated.
