China Famous Double-door Butterfly Cone Ventilation Fan With CE/BV/ISO9001

China Famous Double-door Butterfly Cone Ventilation Fan With CE/BV/ISO9001 thumbnail-1
China Famous Double-door Butterfly Cone Ventilation Fan With CE/BV/ISO9001 photo-1
US$ 240 - 254 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Shandong Yuyun Sanhe Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name SANHE DJF(e) Series
Model Number DJF(e) -900(30inches)
Voltage 380V
Power 0.37KW
Air Volume 24000cbm/h
Speed 630rp
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

Reasonable cone design, improve exhaust power. Large air volume, strong draft capacity, stable performance. Aluminum alloy shutters,light and attractive.



China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

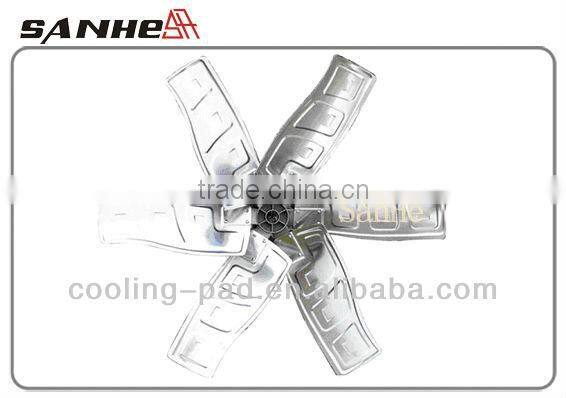

Krupp stainless steel fan blade by punch  forming.

Special blades shape design,large air volume, no

deformation,stable air volume.

Thickness 1.2mm, surface finish BA grade.

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

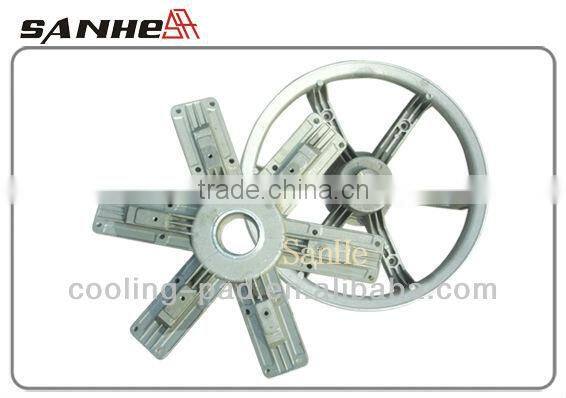

High strength aluminum-magnesium alloy  fan belt pulley

by die casting reducing the weight of blade impeller, high

corrosion resistance.

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

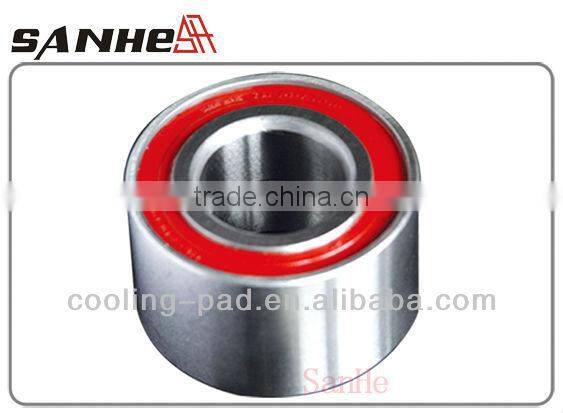

Fan bearing adopts imported double-row bearing with special

waterproof design. High   maintenance strength, lower noise,

free maintenance and long service life.

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

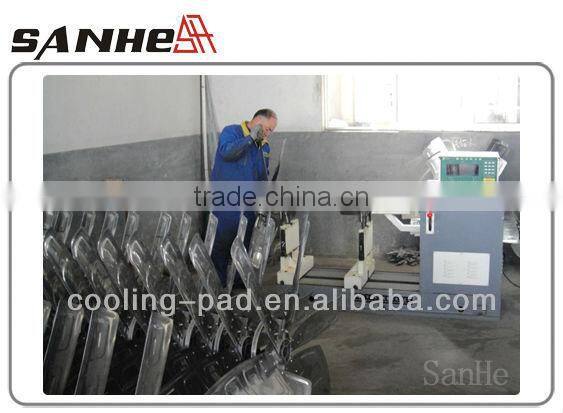

Fan blades adjusted by intelligent dynamicbalance tester, ensuring

smooth running, lower vibration, less noise, high stability.



China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

Hot-dip galvanized blade support and safe net, never rust.

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001

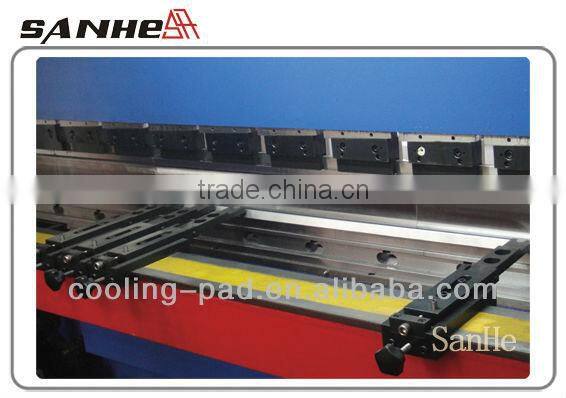

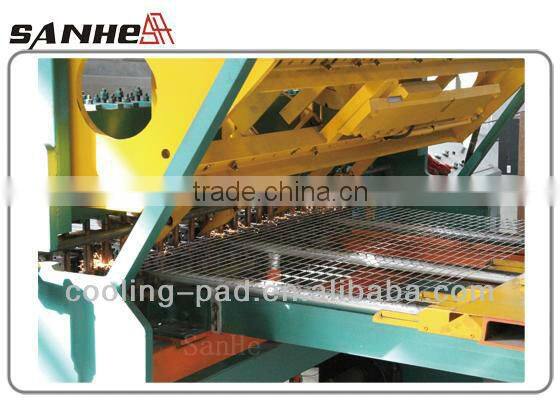

Complete new CNC production line improving fan quality

up to top grade, aesthetic appearance.





Technical Parameter

                                                                                   Technical Parameter



Model    Drive Type Blade Diameterm (m)  Blade Rotational Speed rpm Motor Rotationalsppeed rpm Air Flow (cbm/h) Total Pressure Noise Decibels Power  ( KW) Voltage (V) Height   mm Width   mm Thickness mm
DJF(e)-900 Belt 750 630 1400 24000 65 ≤65 0.37 380 900 900 930
DJF(e)-1100 Belt 1000 600 1400 36000 70 ≤65 0.75 380 1100 1100 1150
DJF(e)-1220  Belt 1100 460 1400 41000 73 ≤65 0.75 380 1200 1220 1200
DJF(e)-1380 Belt 1270 439 1400 51020 80 ≤65 1.1 380 1380 1380 1300



Air Flow  Curve



China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001



  Manufacture Base In CHINA(MAINLAND)

China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001













 SANHE Company Supply Many Types of Exhaust Fan



China Famous Double-door Butterfly Cone Ventilation Fan with CE/BV/ISO9001





 High quality  is our mission!  Good after-sale service is our obligation!

Any of your request will be highly appreciated.
