Push-pull Type Centrifugal Shutter System Exhaust Fan
- Qingdao
- T/T
You May Like
-
Workshop DJF Series Centrifugal Exhaust Fan for Poultry
-
Greenhouse/Husbandry/Workshop Centrifugal Exhaust Fan With CE Certificate
-
Centrifugal Opening System Push-pull Exhaust Fan in Greenhouse
-
Auto Push-pull Type Centrifugal Exhaust Fan
-
380v 1.1KW Centrifugal Exhaust Fan for Poultry/Greenhouse/Workshop
-
SANHE Shutters Centrifugal Push-pull Exhaust Fan
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | SANHE | Model Number | DJF-750/1000/1380 | |
| Voltage | 380V | Power | 370/550/1000W | |
| Air Volume | 10600/21000/44000cbm/h | Speed | 960/438/437rpm | |
| Certification | CE, CCC | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
♣ Technical Parameters
Model Specifications | Diameter biades (mm) | Blades rotational speed rpm | Motor rotational speed rpm | Air flow m/h | Total pressure (Pa) | Noise decibels | Power (W) | Rated voltage (V) | High(mm) | Width(mm) | Thickness(mm) |
DJF-750 | 600 | 960 | 960 | 10600 | 75 | ≤70 | 370 | 380 | 1380 | 1380 | 400 |
DJF(a)-1000 | 910 | 438 | 1400 | 21000 | 57 | ≤65 | 550 | 380 | 1220 | 1220 | 400 |
DJF(a)-1380 | 1270 | 437 | 1400 | 44000 | 57 | ≤65 | 1100 | 380 | 1530 | 1530 | 400 |

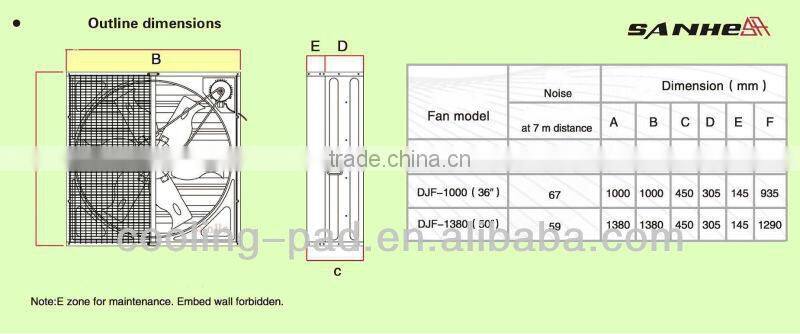

♣ Outline Dimension

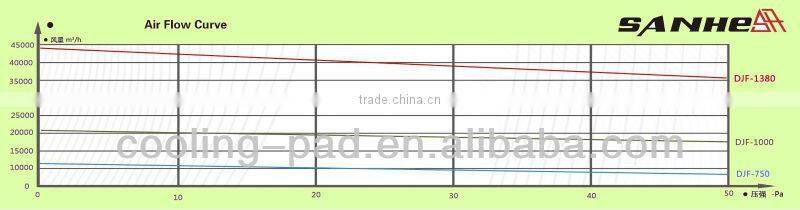

♣ Air Flow Curve
♣ Components of SANHE Push-pull Centrifugal Exhaust Fan
| | |
Fan blade:Krupp stainless steel Thickness:1.2mm,surface finish BA grade. | Centrifugal system,high quality nylon PA66,Guide rob:304 stainless steel |
Belt :Japanese Mitsubishi. maintenance free ,long service life 2010 frist adopt Type B instead of type A. |
| | |
Fan belt pulley: high strength aluminum-magnesium alloy by die -casting.light weight,lower vibration. |
Fan bearing: france imported double-row bearing with warerproof design.high strength.long service life. |
Motor:both Chia famous motor and Siemens motor are available. Motor protection grade IP55.insulation class F grade. |
| | |
Linking parts :aluminum alloy. Spring:304 stainless steel. |
Motor plate:multiple function with the use of a unique design. Both 1HP and 1.5 HP for option. |
Fan blades are adjusted by intelligent dynamic-balance tester.each blade tolerance weight controlled within 1g. |
