Help CenterCentrifugal Opening System Push-pull Type Exhaust Fan
Related Products
-
Piggery Centrifugal Exhaust Fan Auto Push-pull TypeUS$ 190 - 250MOQ: 10 Sets -
DJF Series Centrifugal Push-pull Exhaust Fan With CE/BVUS$ 190 - 250MOQ: 6 Sets
-
SS Frame Centrifugal Exhaust FanUS$ 169 - 306MOQ: 10 Sets
-
Industrial/Greenhouse Air Ventilation Exhaust FanNegotiableMOQ: 5 Sets
-
Auto Push-pull Type Centrifugal Exhaust FanUS$ 190 - 250MOQ: 10 Sets
Application
SANHE centrifugal exhaust fan widely used in animal husbandry, poultry house, livestock breeding,
greenhouse, factory workshop, textile, chemical, medicine, tea, vegetable storage and supermarket.

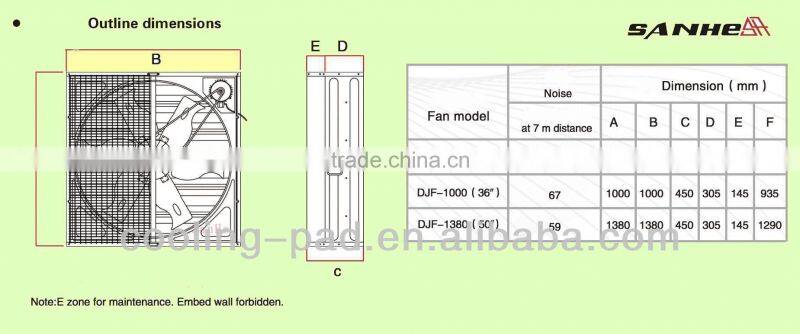

Dimension
Technical Parameter
| Model | Drive | blade diameter(mm) | Blade Rotational Speed(rpm) | Motor Ratational Speed | Air Flow cbm/h | Total Pressure | Noise Decibels | Input Power(w) | Voltage (V) | Height mm | Width mm | Thickness mm |
| DJF-750 | Direct | 600(24in) | 960 | 960 | 10600 | 75 | <70 | 370 | 380 | 750 | 750 | 510 |
| DJF-1000 | Belt | 910(36in) | 438 | 1400 | 21000 | 57 | <65 | 550 |
380 | 1000 | 1000 | 450 |
| DJF-1380 | Belt | 1270(50in) | 437 | 1400 | 44000 | 57 | <65 | 1100 | 380 | 1380 | 1380 | 450 |
Brief Introduction
1) Products Models: DJF-750 / DJF-1000 / DJF-1380 Total in three models.
2) Products Dimentsion: 750*750*550mm / 1000*1000*450mm / 1380*1380*450mm.
3 Air Volume: 10600 m³/h, 21000 m³/h, 44000 m³/h.
4) Dia. of Blades: 600mm(24inch) / 910mm(36inch) / 1270mm(50inch).
5) Input Power: 370 W / 550 W / 1100 W.
6) Voltage: 220 V or 380 V or 415 V.
7) Frequency: 50 HZ or 60 HZ.
8) Motor Data: IP55, F class, Energy Efficiency as 2 class.
9) Phase: 3 phase or Single phase.
10) NO. of blades: 6 PCS or 3 PCS.
11) Noise Decible: ≤64 db.
12) Centrifugal opening system: Nylon PA66.
13) Guide Pole in centrifugal system: 304 SS.
14)Blades: 430 SS in Krupp BA type / 1.2mm thickness.
15 Outer frame: Hot galvanized, 180g/sqm.
16).Upright Column: Hot galvanized.
17) Protection net: Hot galvanized with Plastic spray.
Componets
|
|
|
|
|

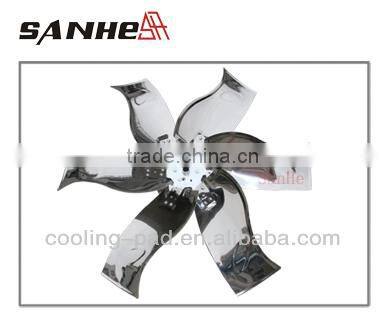

Krupp stainless steel fan blade, large air volume, no deformation, no dust, durable. Thickness 1.2mm |

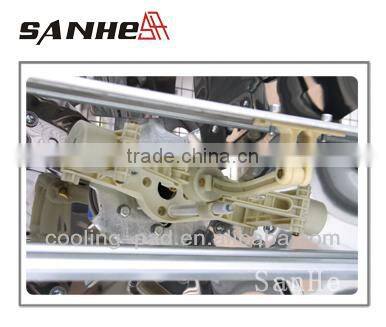

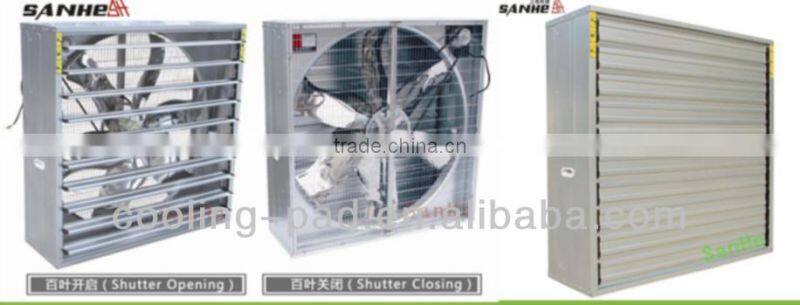

Centrifugal system open shutters at complete 90 degree,lowest air res- istance and biggest air volume. |

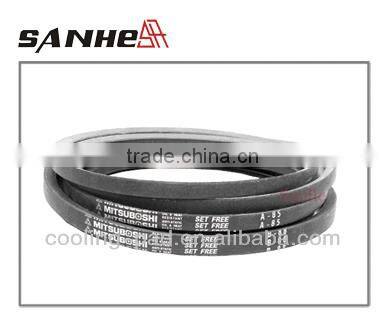

Japanese Mitsubishi brand belts |

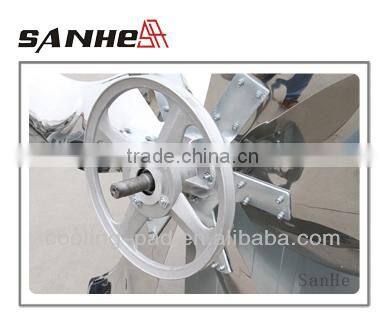

High strength aluminum-magnesium alloy fan belt pulley and flange
|
|
|
|
|
|

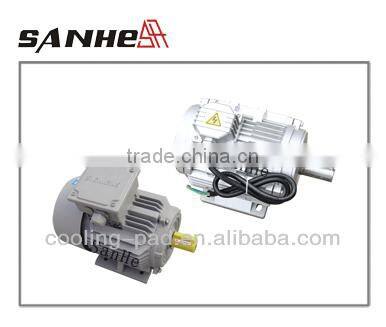

China famous motor and Siemens motor are ava- ilable.
|

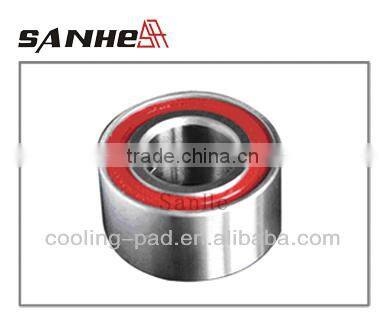

Fan bearing adopts imported double row bearing with special waterproof. |

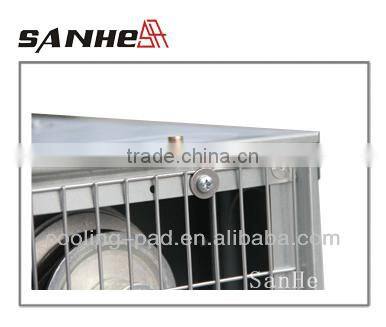

Standard parts especially the washer as fastener parts are made of stain-less steel, no rust, bea-utiful appearance. |

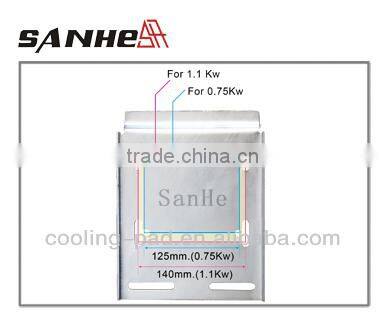

Motor plate both 1HP and 1.5HP motor are available. The motor pulley and belt pulley in the same line in order to reduce the belt wearing and increase belt service life. |
