Cooling Air Poultry Fans With CE

China Fans' Base in Centrifugal Exhaust fan:

 1). Products Models:  DJF-750 / DJF-1000 / DJF-1380  Total in three models.

2). Products Dimention: 750*750*550mm / 1000*1000*450mm / 1380*1380*450mm.

3). Air Volume: 10600 m³/h,  21000 m³/h, 44000 m³/h.

4). Dia. of Blades: 600mm(24inch) / 910mm(36inch) / 1270mm(50inch).

5). Input Power:  370 W / 550 W / 1100 W.

6). Voltage:  220 V or 380 V or 415 V.

7). Frequency:  50 HZ or 60 HZ.

8)  Motor Data: IP55, F class, Energy Efficiency as 2 class.

9). Phase:  3 phase or Single phase.

10). NO. of blades: 6 PCS or 3 PCS.

11). Noise Decible: ≤64 db.

12). Centrifugal opening system: Nylon PA66.

13). Guide Pole in centrifugal system: 304 SS.

14). Blades: 430 SS in  Krupp BA type / 1.2mm thickness.

15).Outer frame: Hot galvanized, 180g/sqm.

16).Upright Column: Hot galvanized.

17) Protection net: Hot galvanized with Plastic spray.

  Detailed Introduction:

	SANHE fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
	Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensures the high strength, no rust, reduces frication.
	Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. From 2010 the first adopt Type B belt which is 3times longer service life instead of type A.
	Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized.  Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.

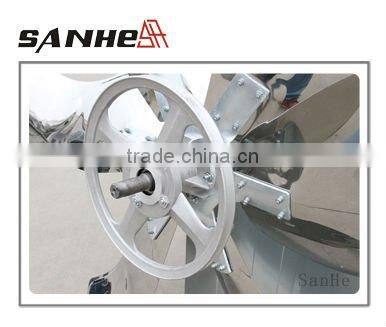

	Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

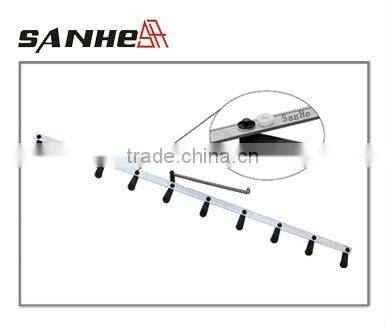

	Linking parts made of aluminum alloy, light weight, not deformation, and with wear-resistant shaft sleeve, reduce clearance, then reduce frication to ensure the shutters open flexibly. The spring is made of 304 stainless steel, long time use, no deformation, no rust.

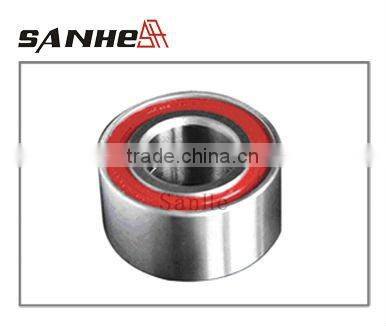

	Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life.

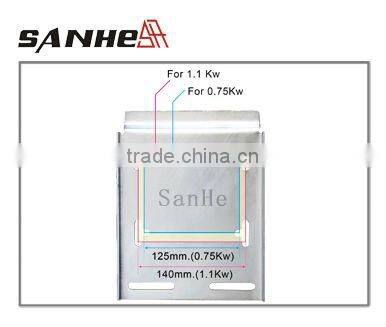

	Motor plate has multiple functions with the use of a unique design. Both 1HP and 1.5HP motor are available. The motor pulley and belt pulley in the same line in order to reduce the belt wearing and increase belt service life.

  SANHE Exhaust fan outlook:

 SANHE Exhaust fan Installation Diagram:

SANHE Exhaust fan Technical Parameter:

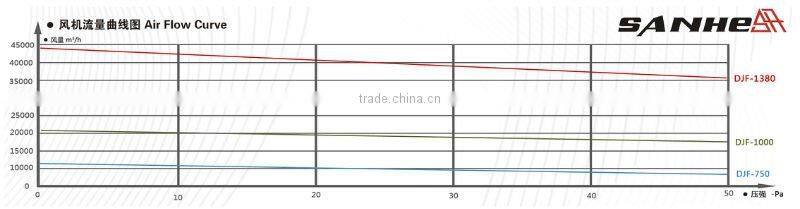

 SANHE Exhaust fan Air flow graph:

The Biggest Manufacture Base In CHINA(MAINLAND):

1. Package with carton box in completely assembled or unassembled.
For the most popular type DJF-1380
1×20GP loads assembled 28pcs, unassembled 130pcs.
1×40HC loads assembled 57pcs, unassembled 300pcs.
2.Shipped with dry containers, can be deliver to Qingdaro Port or destination Port.

1. Sample is available, it needs pay first.

2. The Galvaized Sheet frame, and the Stainless Steel frame is available.

3. Biggest professional manufacturer of ventilation, cooling, heating system in Livestock Farm, Greenhouse planting and Industrial field, which can supply you competitive price with excellent quality.

4. Big production, management and sale team, which can give you best support.

5. High production capacity, fast delivery.

    Exhaust Fan                                    12,000sets/months

    Evaporative Cooling Pad                  5,0000m³/months

    Light Filter                                      2,400sets/months

    Air inlet                                          3,500sets/months

    Heating Machine                             120sets/months

 1. Price items: EXW, FOB Qingdao, CFR or CIF

2. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy. Or 100% L/C at sight. It is negotiable.

3.Qingdao Port is the nearest loading port, then Shanghai Port, Ningbo Port, Shenzhen Port, and so on.....

4. The delivery time is in common condition, 7 days on receipt of down payment.

5. MOQ is 5 sets for exhaust fan, 1 set for auto heater and 5 cubic meter for cooling pad.

Please contact me without delay, if our products are suitable for you.

(You'd better add the detailed model,purchase quantity, trade term, port of destination and other details in the inquiry,only in this way can we give you a exact quote!)
