Specifications
Weight of the main machine: 27kgType of engine:single cylinder,air cooled two strokes

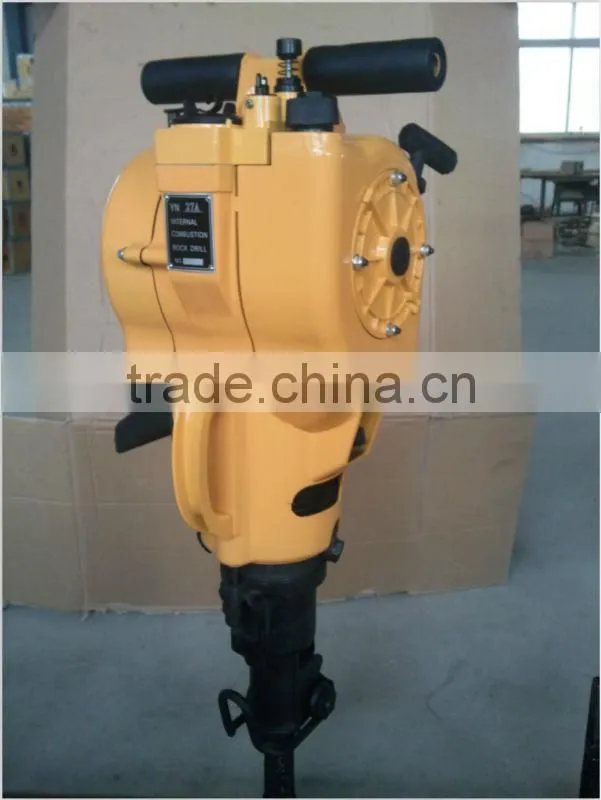

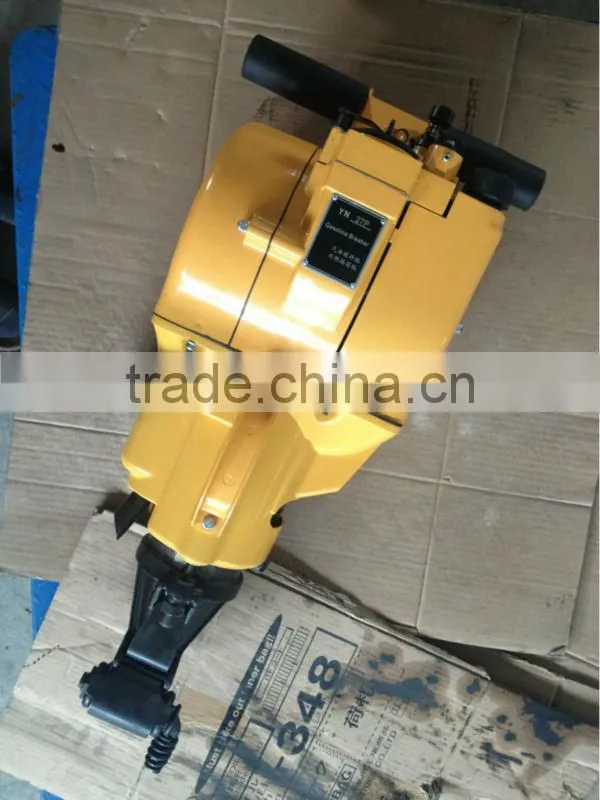

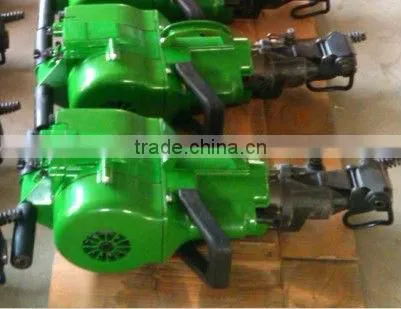

TECHNICAL SPECIFICATIONS of our diesel rock drill
1.Weight of the main machine: 27kg
2.Overall dimension: 746×315× 229mm
3.Type of engine:single cylinder,air cooled two strokes
4.Cylinder Diameter×Stroke of piston:58 × 70mm
5. Rotating speed of engine: ≥2450r/min
6.Displacement of engine plston: 185cm3
7.Type of carburetor: hand needle valve,no floating type
8.Ignition system: Controllable silicon contactless system
9. Drilling speed:(mean value of five holes) ≥ 2450R/MIN
10. Max. drilling depth: ≥ 6m
11.Fuel consumption: 0.122 /m
12.Tank capacity:≥ 1.14L
13. Mixing ratio of gasoline and lubrication oil (in volumes):12:1
14. End of drill rod dimensions: hexagonal2 2 × 108mm
15. Rotating speed of drill rod:≥200r/min
16. Clearance of Spark plug :0.5 -0.7mm
17. Packing Size : 810 x380x280mm
18. Grow Weight : 40 KGS
19. Loading Info : 155 Sets / 20FT

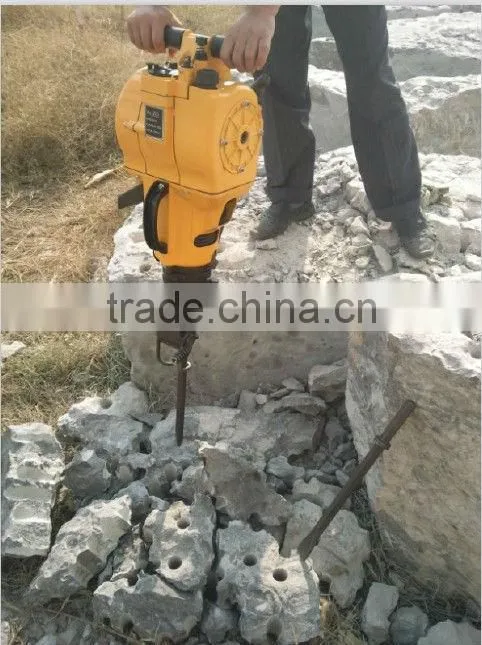

Applications:
Available for drilling,splitting breaking, ramming, shovelling. And widely used in
mining,road-construction, quarrying and national defense construction,etc.
Advantages:
• Needless to replace the internals of the engine head,just handle the handle to
operate it.
• Easy to operate.More time-saving and effortless.Drilling faster and more
efficient.
• Have reached the Tip-top level of the same field now,and allow to be replaced
with the same kind of the domestic products.
