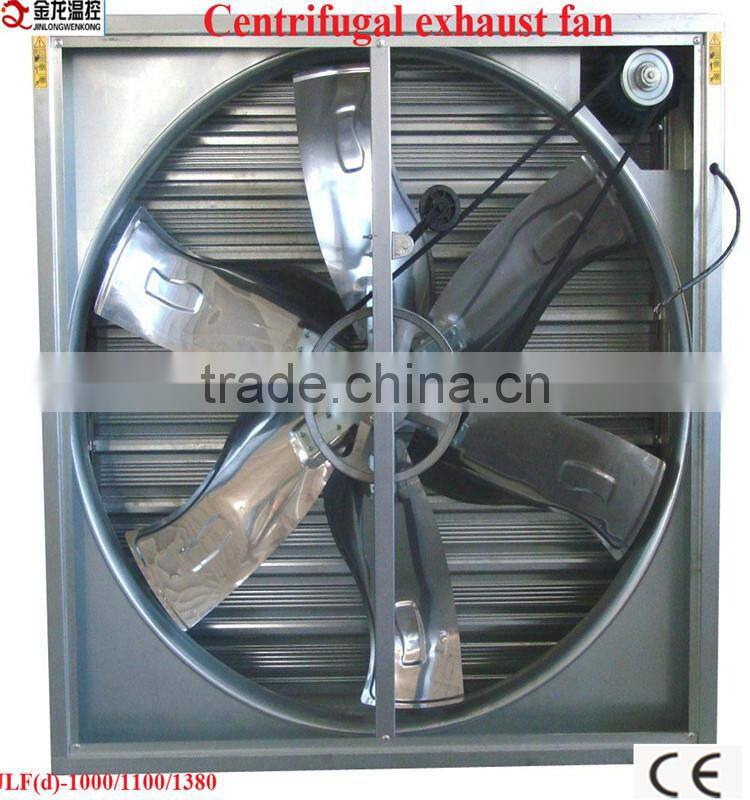

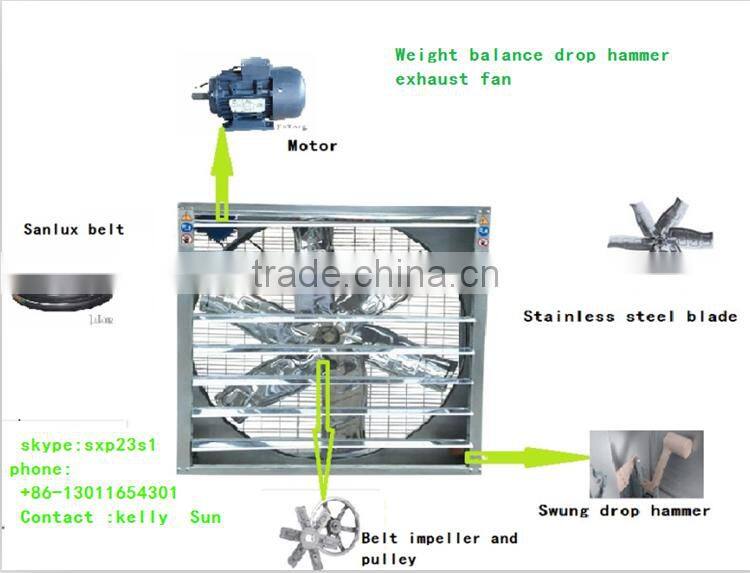

Industrial Blower Fan for Greenhouse With CE

Model

JL-1000(39' '   centrifugal  shutter  ventilation  fan)  with  CE  certificate

Fan  size

1000mm× 1000mm× 450mm

Airflow

20800m3/h

Weight

55kg

Frame

Hot  galvanized  sheet,   high  anti-corrosive  durability,   zinc  coating  thickness  180g/m2

Frame  thickness

Top  and  bottom  frame  sheet  is  1mm;   the  left  and  right  sheet  is  0.8mm

Motor

Chinese  , Other  motor  accordingly,   IP  54

Motor  techenical  data

0.55  Kw          380  V          50  Hz      three  phase

Motor  RPM

1400r/min

Noise

< 64db

Blade  diameter

φ   910mm  (36inch)

Blade  No.

6

Blade  material

BA430  stainless  steel.   Thickness  1.2mm

Blade  RPM

566r/min

Blade  instruction

Weight  difference  between  blades  is  less  than  0.5g, blades  will  go  through
balance  test  after  assembled  which  can  assure  steady  running  and  even  airflow.

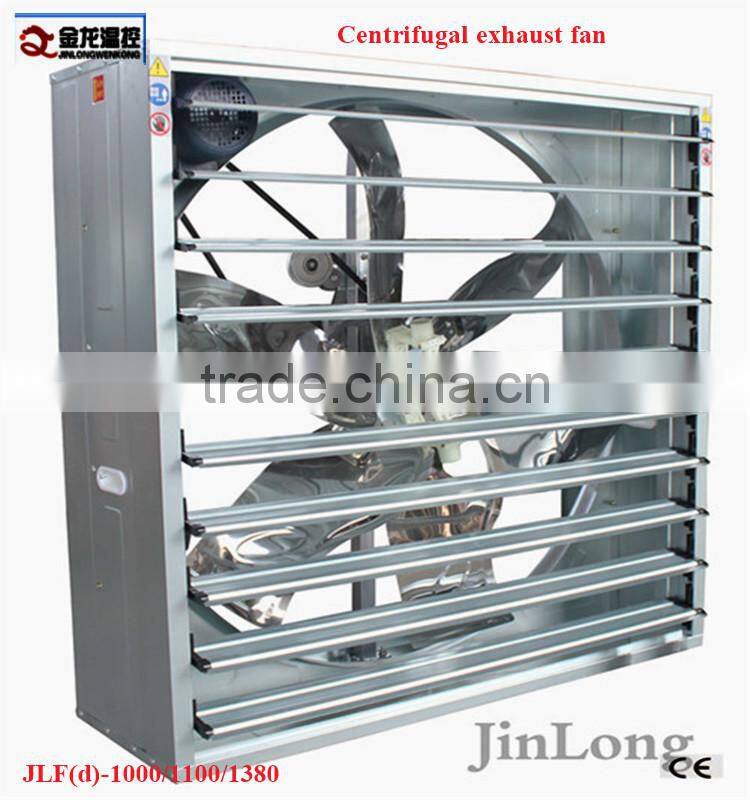

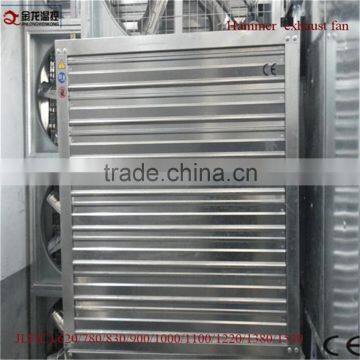

Shutter

Centrifugal  system  opening,   spring  close  system,   shutter  can  be  opened  at  90  degree.

Shutter  No.

7

Shutter  thickness

Hot  galvanized  sheet.   Thickness  0.8  mm  and  the  middle  piece  is  1.2mm

Shutter  Linkage

Aluminium

Spring

304  stainless  steel

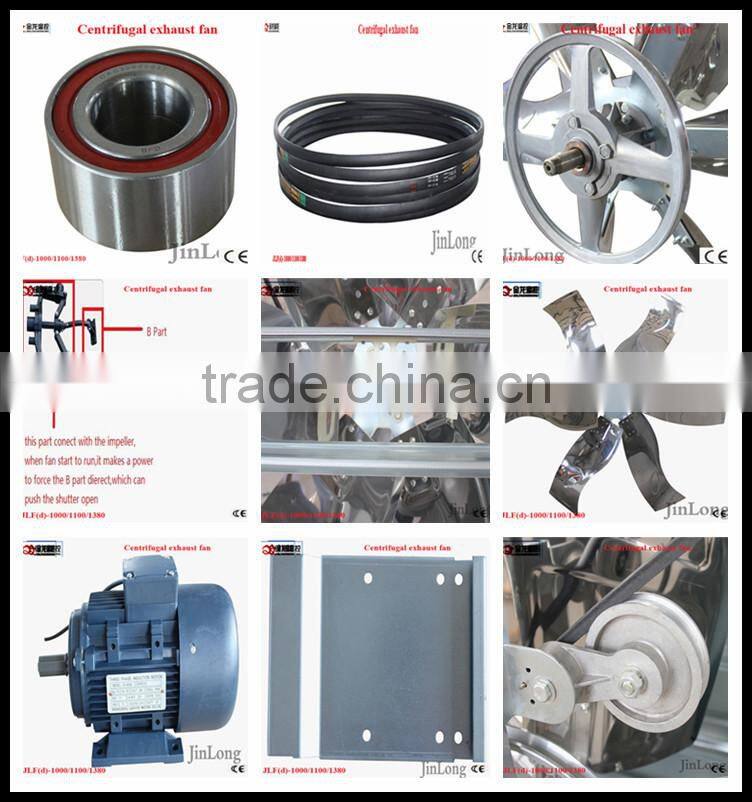

Centrifugal  opening  system

30%  fiberglas  and  70%  nylon.   The  column  is  304  stainless  steel.   Weight:   1370± 4g

belt

Chinese  belt  and  Mistuboshi  belt  can  be  choosed

Housing

Galvanized  steel.   Thickness  1mm

Net  guard

Two  half  pieces

Small  belt  pulley

Cast  Iron

Big  belt  pulley

Aluminium  alloy

Motor  base

Both  1.5HP  and  1  HP  motors  can  be  installed

Motor  hole

Installation  hole  of  motor  and  nut  are  all  six  angles  instead  of  the  roundness.

Guarantee  period

One  year.   Easy  broken  parts  are  offered  free  of  charge  during  this  period.

  Q1

How fast can i get the quotation?

 A

We usually quote within 24 hours after we get your inquiry.

If you are very urgent to get the price, please call me .+86-13011654301

Q2

How can I get a sample to check your quality?

 A

After price confirmation, you can require for samples to check our quality.

If you need the samples, we can offer sample free and you just pay for the express cost .But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.

Q3

Can you accept  OEM?

 A

 Yes, we can provide OEM products and our own brand , no matter what you demand,.

Q4

What is your MOQ?

 A

Our MOQ is 5 set

Q5

What is your terms of delivery?

A

We accept CFR, FOB, CIF, etc.

Q6

  can you customize the voltage?

We can do almost all types of voltage, but for special voltages , Universal voltage is 380V and 50HZ.

Q7

Can you send spare parts?

Yes,of course. Our warehouse is a considerable inventory.We would like to send the parts by air or sea.
