Specifications
Automatic Cubic Ice Vending Machine1) Ice vending machine
2) Advanced RO purification
3) IC card,Coin &bill

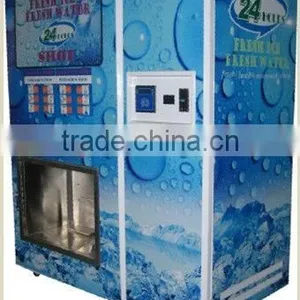

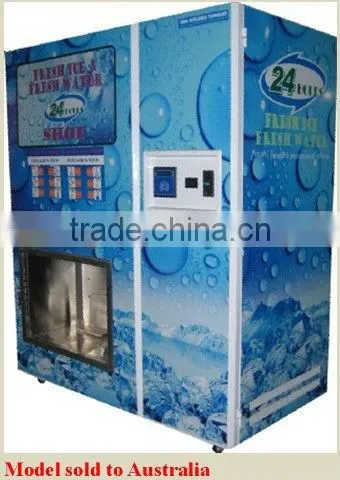

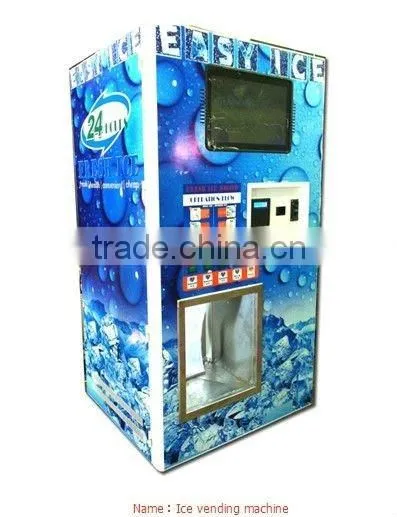

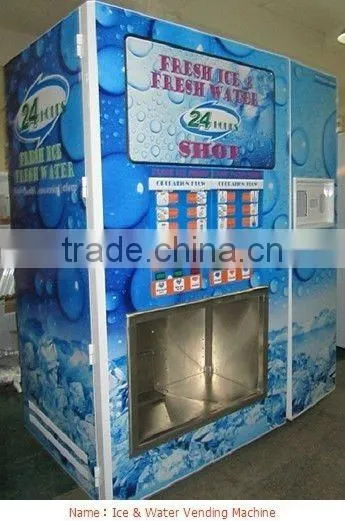

Automatic Cubic Ice and water Vending Machine
1.Description
1. Luxurious waterproof steel cabinet, front-door-open design, safe and hygenic, durable and easy to install.
2. All parts contacting with ice and water adopt food grade stainless steel #304.
3. Advanced Intelligent coin, bill and IC card payment control system.
4. GSM remote reporting and controlling system for option .
5. Fully automatical purification, ice making, ice packing and vending. .
6. Highly efficient and stable bagging system, dispensing bag, filling ice in the bag and sealing the bag automatically.
7. Optional bulk ice dispensing and auto bagged ice to meet customer’s requirements.
8. Automatic machine stop for water full and shortage of ice/water/bag with alarm.
9. Advanced Reverse Osmosis purification system, NSF standard .
10. Water purifying system:
- 7 stages of effective purification+2 sterilization (UV + Ozone)
- First stage: Quartz sand filtration
- Second stage: Activated carbon filtration
- Third stage: PP filtration
- Fourth stage: PP filtration
- Fifth stage: RO purification
- Sixth stage: Postposition activated carbon filtration
- Seventh stage: mineralization
- Eighth stage: UV sterilization (2 UV lamps)
- Ninth stage: Ozone sterilization
Performance and Parameters
No. |
Item |
Parameter |
1 |
Voltage |
Ac 220V-50Hz/ Ac 110V-60Hz |
2 |
Total Power |
3KW |
3 |
Current Rating |
220V 13.7A/110V 27.3A |
4 |
Production Capacity |
450KG/24H(under 20°C) |
6 |
Ice Cube Size |
2.2cm×2.2cm×2.2cm |
7 |
QTY of Ice Cube Mode |
540 |
8 |
Type of Compressor |
3P |
9 |
refrigerant |
R404a |
10 |
Ice Making Type |
Circulated Spray |
11 |
Cooling System |
Fan Cooling(Can change to water cooling) |
12 |
Ice Storage Capacity |
200KG |
13 |
Storage Tank Material |
SUS 304 |
14 |
Source Water |
Tap Water |
15 |
Source Water Pressure |
≥0.1MPa |
16 |
Inlet Water Flow Rate |
≥30L/H |
17 |
Pure Water Production |
400GPD/600GPD/800GPD/1300GPD/1900GPD/3500GPD |
18 |
Water Vend Charge Type |
By Flow |
19 |
Vending Function |
IC Card/Bill/Coin/Give Change/GSM Remote Monitor(Can Choose by different needs) |
20 |
Ice Vend Type |
Bulk Ice/Bag Ice |
21 |
Bag Ice Procedure |
Automatic packing, counting weight, sealing |
22 |
Bag Dimension |
22cm×50cm/22cm×75cm |
23 |
Bag Thickness |
0.05mm(Single layer) |
24 |
Bag Ice Weight Range |
1KG to 5KG |
25 |
QTY of Bags |
About 300 PCS |
26 |
Dimension |
W180cm×D100cm×220cm |
