Specifications
Slope greening hydroseeding machine1.No loading starding
2.double mixing system,elliptical tank
3.superior diesel engine

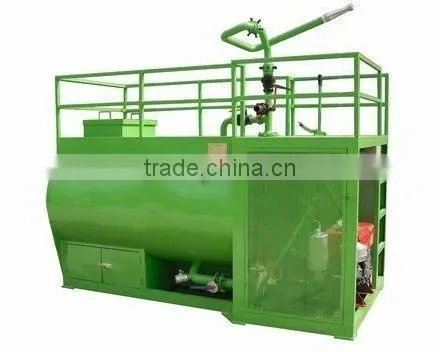

Superior performance slope greening hydroseeding machine
Application of slope greening hydroseeding machine :
(1)Hydraulic Spraying seeds Machine is the fastest, the most economical and the simplest way of establishing vegetation on bare soil surfaces to stabilize soil and prevent soil erosion.
(2)This technology involves the use of hydraulic machines in planting permanent vegetation for dust control, slope protection, grassing or stolonizing, re-vegetation and erosion prevention.
Features of slope greening hydroseeding machine :
1.KN- HYP hydraulic spraying machine has two powerful drivers, high-performance dedicated pumps, and high ability for material delivering, best applied to the conditions like stable soil slope above 45 degree, high-filled embankment slope and man-made soil slope.
2. Beautiful appearance, compact structure, affordable for the majority of users.
3. with good integral mobility and complete supporting accessories. Be powered with electric-start diesel engine; be easy and convenient to operate. This machine is equipped with “Longmen” crane and this design avoids the movement of crane which sometimes will be very hard to do, can be extreme useful in the conditions moving crane is not very convenient, like farming field, slope.
4. Safe and convenient operation. The machine is equipped with full-featured operation palette, skip-proof operation platform which has removable, 80cm-high, closed fence to guarantee the safety for console operator, spraying gun operator, as well as other staff members.
5. Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed state, evenly emitting the mixture of raw materials at one time.
6. Strong power, lift distance can be reached more than 45m, and equipped with two types of spraying guns: vertical and pipe, which extend the maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements
7. This machine has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work.
Technical parameters of slope greening hydroseeding machine
Item |
KN-HYP-2 |
KN-HYP-3 |
KN-HYP-5 |
KN-HYP-8 |
Volume |
2m3 |
3m3 |
5m3 |
8m3 |
Mixing pump power |
|
|
13.2 kw |
13.2 kw |
Output power |
20kw |
20kw |
20kw |
20kw |
Spray distance |
45m |
45m |
50m |
55m |
Spraying space/tank |
1400m2 |
2100m2 |
3500m2 |
5600m2 |
Weight |
1000kg |
1600kg |
2300kg |
2500kg |
Overall dimension |
2.85×1.4×1.5m |
3.00×1.5×2.1m |
3.55×1.8×2.1m |
4.65×1.8×2.1m |
Pls feel free to contact us if you have any questions.Hope we can have a chance to do business!
