Automatic Creaming-filling Egg Roll Wafer Machine

Automatic Creaming-filling Egg Roll Wafer Machine thumbnail-1
Automatic Creaming-filling Egg Roll Wafer Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Known-wafer machine
Contact Supplier Request Quote Chat Now
Zhengzhou Known Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any sea port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name Known-wafer machine
Model Number Kn-HX1800
Application Other, egg roller
Voltage 380V
Power(W) 10kw/h
Weight 5T, 5T
Dimension(L*W*H) 3100*2140*2600mm
Certification CE, CE
Warranty one year, one year
After-sales Service Provided Overseas third-party support available

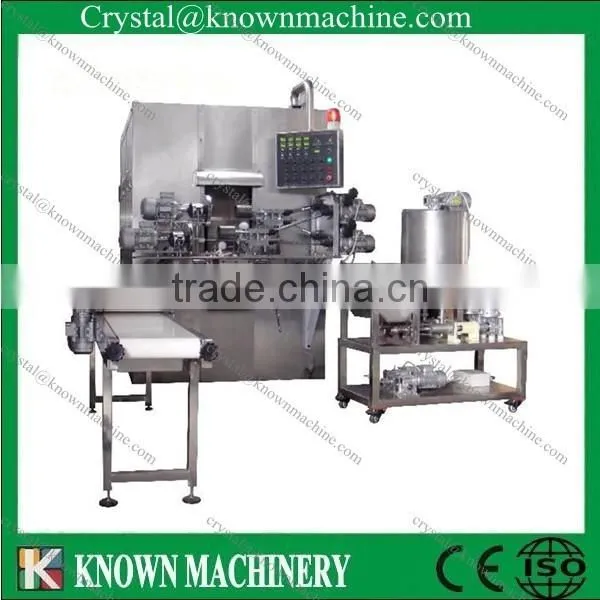

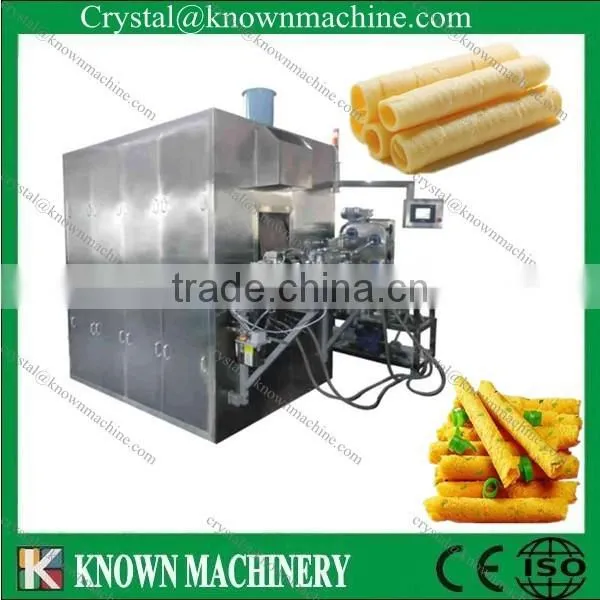

Automatic Creaming-filling egg roll wafer machine

Intruduction for  wafer machine

This machine is cooperated with one slurry mixer, one baking mainframe, two feeders, two fillers and one cooling conveyor.

firstly mixing material evenly, then translating to the baking mainframe ,after baking, using a spatula wiping additional softer material away, making them circled on the surface of rollers (here are double-stage core rollers for you), then cutting the material in a target length, translating to the cooling conveyor and collecting them by a notch .

The baking mainframe that using gas heating is full-automatically integrated with the auto- ignition, auto-alarm then auto-(power cut off), auto-controlment of temper,all these make the best effective use of power and energy.

This whole egg roll production line is managed by PLC Programming system, for the baking mainframe, it is controlled by frequency converter, suitable adjustment of flour material’s thickness is available .

users can change the egg roll’s diameter by change the core rollers, also can change the core rollers’ speed by frequency converter, for the egg roll’ length , it is cut by Optical Sensor system.

This egg roll can center-fill whole cream or other core material, also can just center-fill only a part of core material. in the good faith, Free recipe is available.

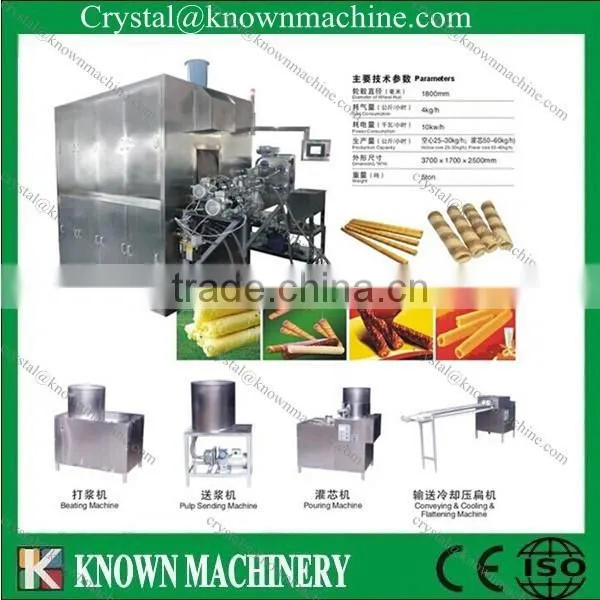

Main Parameters of wafer stick making machine

Diameter of wheel Hub

1800mm

Gas Consumption

4kg/h

Power Consumption

10kw/h

Capacity

Hollow core :25-30kg/h  Poured core: 50-60kg/h

Dimension

3700*1700*2500mm

Weight

5ton

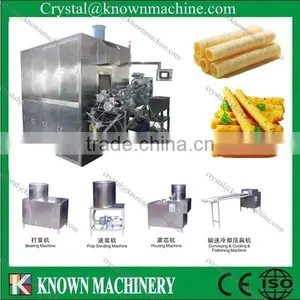

The production line consist of wafer stick making machine



Name

Qty

Function

Slurry mixer

1set

To make slurry

Baking machine

1set

To bake the dough strip and roll the strip into stick and cut into required size

Cooling conveyor

1set

To cool the shaped stick

Ball mill

1set

To make cream or chocolate cream for filling

Coloring machine

1set

To make the side color strip for dual color products



Automatic Creaming-filling egg roll wafer machine



Automatic Creaming-filling egg roll wafer machine



Automatic Creaming-filling egg roll wafer machine



Automatic Creaming-filling egg roll wafer machine



Automatic Creaming-filling egg roll wafer machineAutomatic Creaming-filling egg roll wafer machine



MOQ

1 set

Packing

wood case

Payment Term

T/T,Western Union, L/C

Delivery Time

25 days after receiving the deposit

Shipment

By Sea, By Air, or via DHL, UPS ,TNT,FEDEX,EMS etc.

(We'l l choose the most suitable way and lowest delivery cost for you.)

Warranty Time

1 years

Customer Service

Lifetime technical support and accessories supply.





Company name

Zhengzhou Known Imp.&Exp.Co.,Ltd

Contact person

Crystal

Website

www.zzknown.en.china.cn

Email

crystal(at)

MSN

crystalma(at)

Skype

happycrystal-

 Tel

86-371-55607060





More products,pls visit our website:www.zzknown.en.china.cn

You also can send email to Crystal.

If you have any questions,pls feel free to contact me at any time.Gald to service for you.

Your satisfication is our great pursuit!

Automatic Creaming-filling egg roll wafer machine
