5 Ton Capacity Honey Concentrator|Honey Thickener| Honey Process Machine

5 Ton Capacity Honey Concentrator|Honey Thickener| Honey Process Machine thumbnail-1
5 Ton Capacity Honey Concentrator|Honey Thickener| Honey Process Machine photo-1
Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Concentrator
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Zhengzhou Known Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai ect
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Concentrator
Automatic Grade Automatic
Place of Origin Henan, China
Brand Name Known
Model Number KN-500
Voltage 380V
Power(W) 5.5kw
Weight 300KG
Certification CE/ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

5 tons Honey concentrator/honey thickener/honey process machine Features:



Machine principle: completely function, this machine can pump vacuum, melt crystal, filter sterilizing, fast cooling, continuous batching charging, continuous charging.

this machine has advanced inside and outside cover and honey recycle pipe which material is SS304

This machine has evaporator, pre-heating pot, separators, filter, concentrate port, vacuum pump and so on

5 ton capacity Honey Concentrator|Honey Thickener| Honey Process Machine

Honey concentrator/honey thickener/honey process machine  Technical parameters:

Model

KN500

KN1000

KN2000

KN4000

Capacity(ton/hour)

5

10

20

40

Production capacity is according to per hour increase four Baume degree

Voltage(V)

380

380

380

380

Power(KW)

5.5

7.5

7.5

11

Concentration temperature

≤50

≤50

≤50

≤50

Vacuum degree(Mpa)

≥0.092

≥0.092

≥0.092

≥0.092

Heating area

4.5

6.6

11.3

14.9

Steam pressure(Mpa)

0.1

0.2

0.3

0.4

Boiler(ton)

1

1

1

2

honey thickener height(m)

3.2

3.4

3.6

3.85

Water Conservancy ejector height(M)

4.1

4.3

4.5

4.7

Forms of work

Rising film,Continuous access to material way



Heating

Steam

Usage area

15

15

20

20

Honey concentrator/honey thickener/honey process machine   introduction:

Five tons capacity honey thickener machine are use up continuous membrane structure,

Equipment by the heater, concentrated cans, water jet vacuum device, working platform components.

More information

More information:

company name

Zhengzhou Known Imp.&Exp.Co.,Ltd

Contact person

Monica

Website

Email

monica(at)

Phone NO.

0086- 17719817308

Skype

Monica-gao2011

 Tel

86-371-55607080

whatsapp and wechat no

00 8617719817308

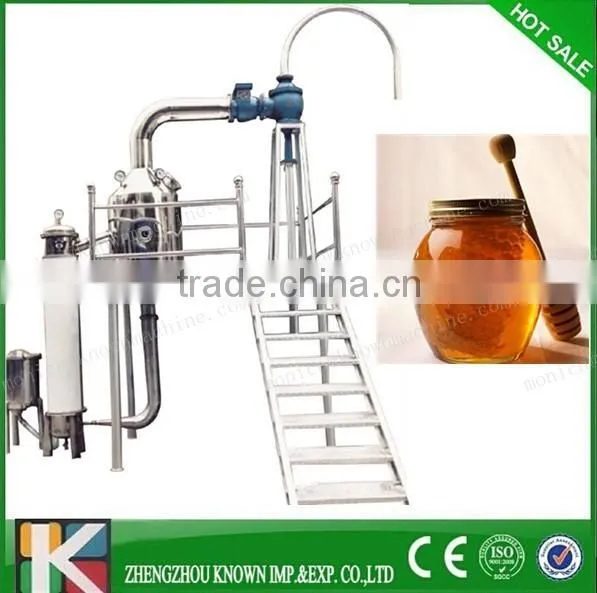

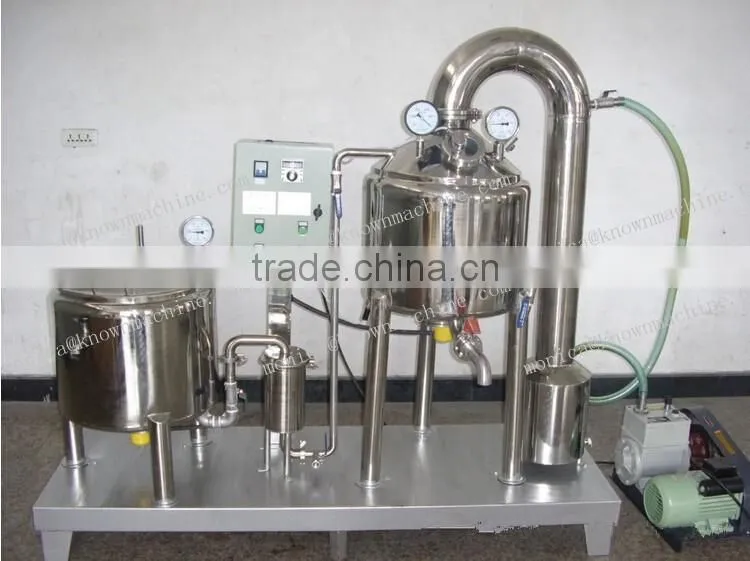

5 tons Honey purifying machine/honey thickening machine picture:

5 ton capacity Honey Concentrator|Honey Thickener| Honey Process Machine

Other  Honey Processing Equipment :

5 ton capacity Honey Concentrator|Honey Thickener| Honey Process Machine
