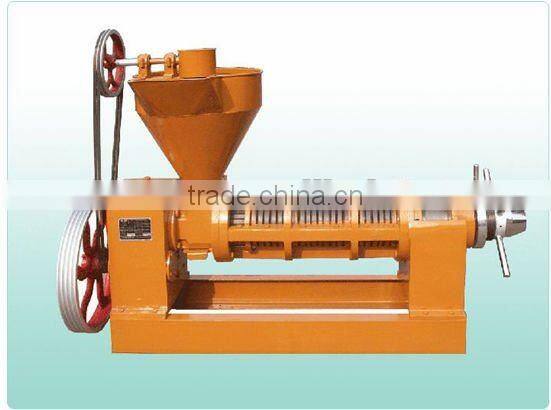

Best quality coconut oil making machine with CE certification
Features of our machine:
1.Cast iron machine base
2.Special gear box structure make the rotating speed averagely
3.Main parts of chamber through the processing of high -temperature tempering and low temperature quenching
4.Cake thickness can be adjusted once the machine stop running
5.Superior grade oil cake
6.Compact structure ,stable function,simple maintenance
The raw materials of our machine:
Our oil press can use for various raw material ,such as rapeseed,beans ,rape ,tea seed,peanut and cotton seeds,sesame,olive,sunflower,coconut,grass seed etc.
|
raw material |
Capacity per day(t) |
Oil output per 100kg raw material |
Cake Residual(%) |
|
|
Rape seeds |
Hot pressing |
6-7 |
30-38 |
7.5-8 |
|
Cold pressing |
3-5 |
28-35 |
|
|
Groundnuts |
Hot pressing |
6-7 |
35-45 |
7 |
|
Cold pressing |
3-3.5 |
32-40 |
|
|
Bean |
Hot pressing |
5-6 |
10-16 |
6.5-7 |
|
Cold pressing |
.3-3.5 |
8-14 |
|
|
Sesame |
Hot pressing |
6-7 |
44-47 |
6.5-7.5 |
|
Cotton seeds |
Cold pressing |
3-4 |
10-14 |
5.5-6.5 |
Specification:
| product |
Kn-6YL-160 |
| Productivity | 700(kg/h) |
| Voltage | 380V |
| Weight | 980Kg |
| packing | 2020*700*1480 |
| Power | 22KW |
All our machine's specification:
MODEL |
CAPACITY(ton/day) |
POWER(KW) |
NET WEIGHT(kg) |
PACKING(mm) |
KN-6YL-68 |
40 |
5.5 |
130 |
1050*660*760 |
KN- 6YL-80 |
80-125 |
5.5 |
330 |
1320*440*695 |
KN- 6YL-95 |
160-200 |
11 |
420 |
1910*610*765 |
KN- 6YL-100 |
160-200 |
7.5 |
400 |
1860*550*695 |
KN- 6YL-120 |
200-300 |
11 |
700 |
2060*610*770 |
KN- 6YL-130 |
375-500 |
18.5 |
700 |
2320*700*780 |
KN- 6YL-160 |
550-700 |
18.5 |
920 |
2020*700*780 |

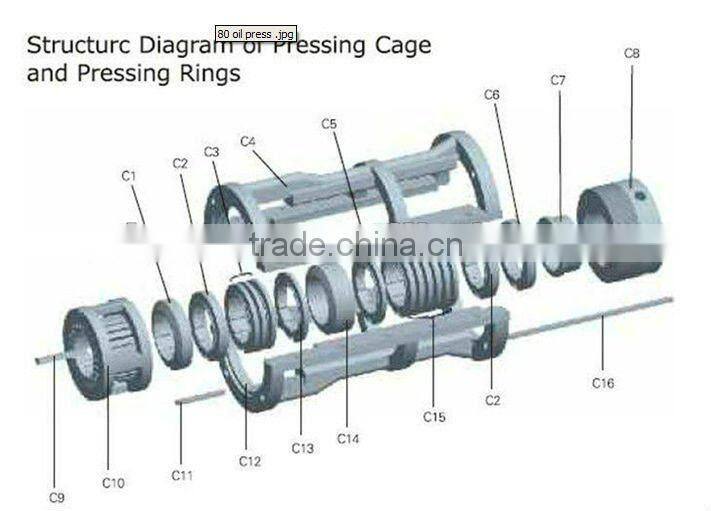

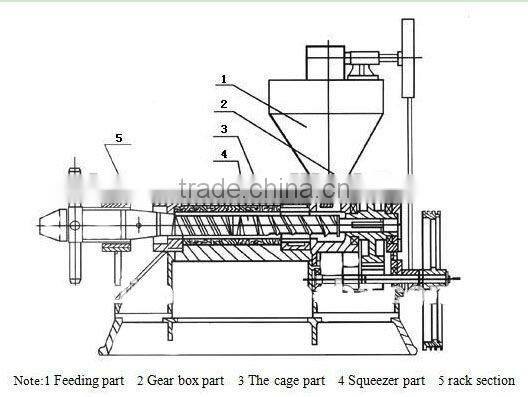

The main parts of our machine:
1) The automatic control system includes: The air switch, exchanges the contact device, the temperature control meter, the electric circuit automatic protection installs compositions and so on system.
2) The heating squeezing part by the heater, presses out the spiral and presses out the strip, organism assembly and so on is composed.
3) The transmission part by the main axle and the decelerator, the belt pulley, the electricity motorized ship and so on is composed.
4) The adjustment part by adjusts the screw rod, the adjusting nut, the sub-handle, the locking nut and so on is composed.
5) The vacuum filter oil part by the vacuum pump filters assemblies and so on oil drum pipeline to be composed.
If you have any questions,pls feel free to contact me.We will give you our best service.Hope we can have a chance to do business!
