Haotian Reinforcing wire mesh welding machine
1.Reinforcing wire mesh welding machine specification:
The welded mesh can be used in the floor & wall reinforcing mesh in the building,
reinforcing mesh in the tunnel, bridge and road.
Wire diameter |
6.0-14mm |
Line wire form |
Pre-cut wire |
Weft wire distance |
≥ 50mm |
Weft wire form |
Pre-cut wire |
Line wire distance |
50-200mm |
Rated voltage |
AC380V |
Welding net width |
3000mm(as your request) |
Rated power |
150KVA x13 |
Welding speed |
20-60times/min |
Overall dimension |
2400x6000x2650mm |
Welding point quantity |
26 |
Work motivation |
Air operated 0.8mpa |
Welding net length |
As your request |
Variable frequency motor |
2.Function features:
- This kind machine is our latest developed reinforcing mesh welding machine.
- The line wire and the weft wire are pre-straight and pre-cut.
- The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the spring. It’s easy to control the welding pressure .
- The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper.
- The new machine added the bear wire net and carry equipment that makes the working more convenience .
- The welding part is used the springiness input wire trunking that makes the welding copper use for long time. This machine adopts synchronous control technique.
- The cent-control and welding time are composed of P.L.C program system.
- The input front-panel is touch screen , the operate is more intelligent and reasonable.

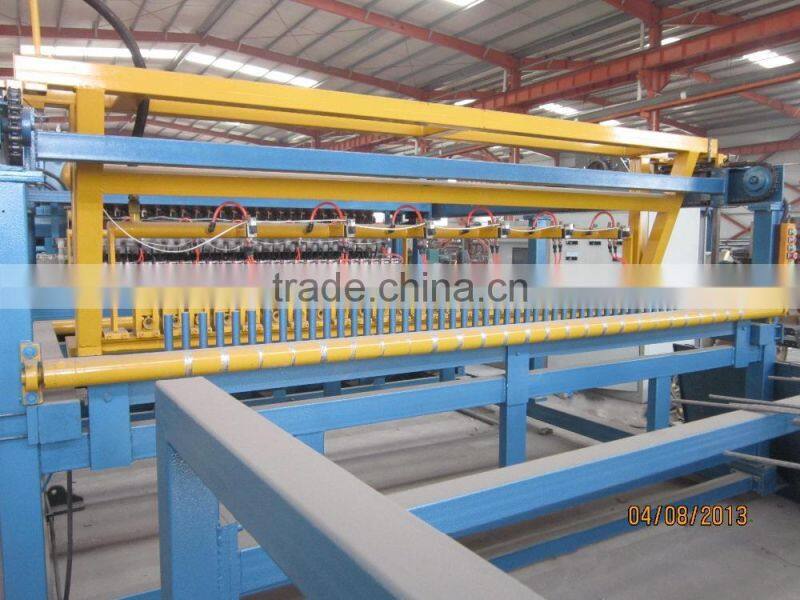

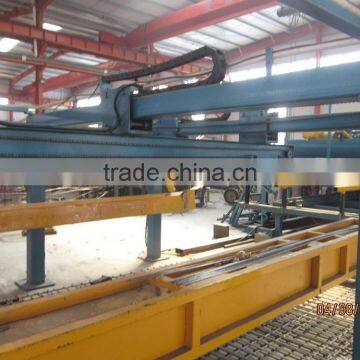

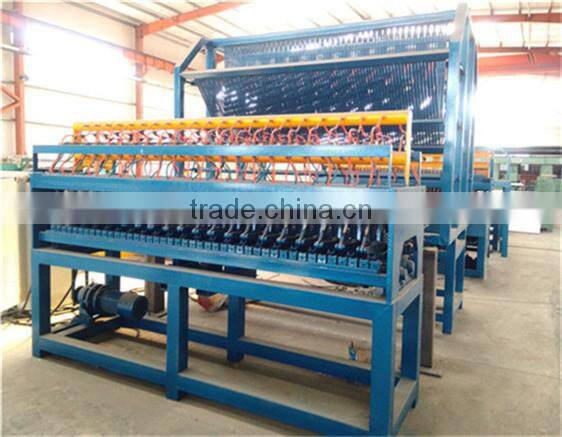

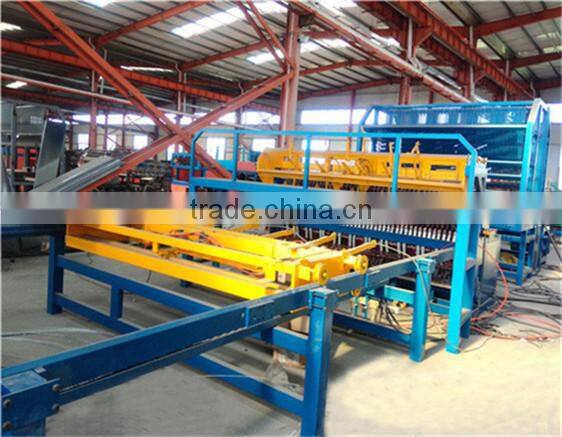

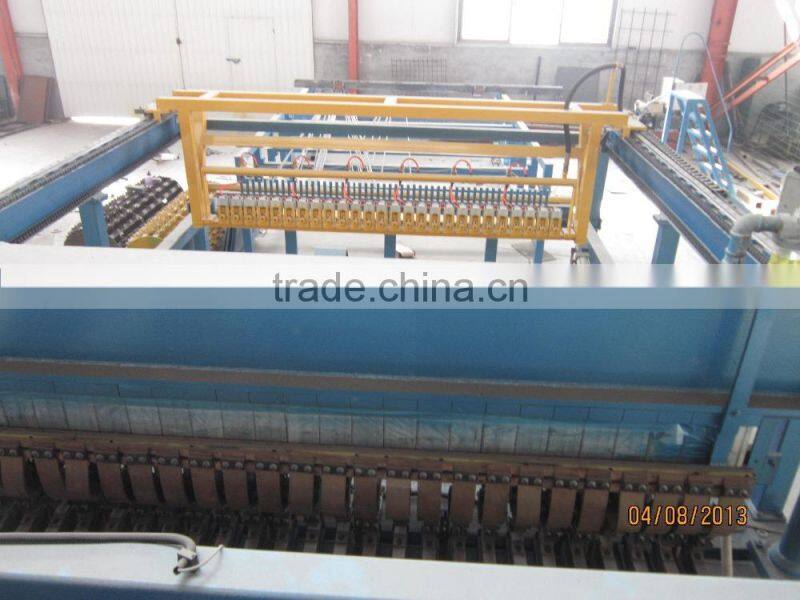

3.More pictures about the reinforcing wire mesh welding machine:

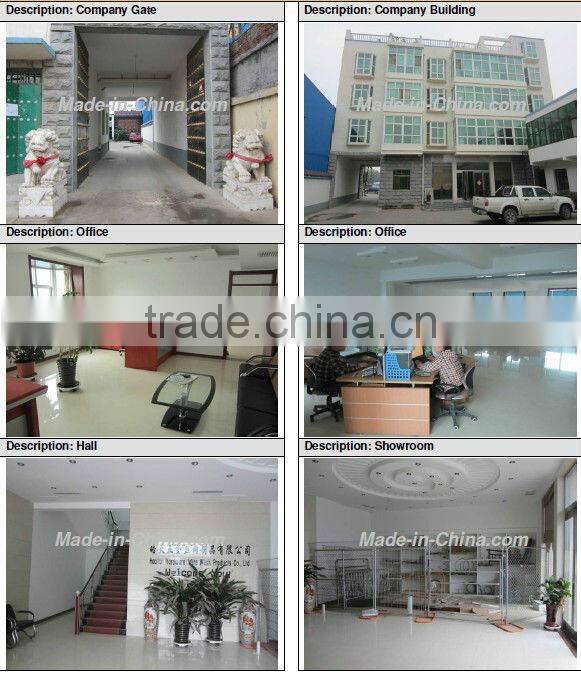

Haotian Hardware Wire Mesh Products Co.,Ltd is located in " Hometown of wire mesh" wire mesh park of Anping, Hebei.Our company got the ISO 9001:2000 quality management system certification and SGSect. We always adhere to" selection better material, exquisite design, elaborate sophisticated services " bussiness philosophy to strict management with high-quality products to offer customers ideal return. We sincerely hope that we can establish good trade relations with domestic an foreign clients in frank cooperation,mutual benefit and development.
