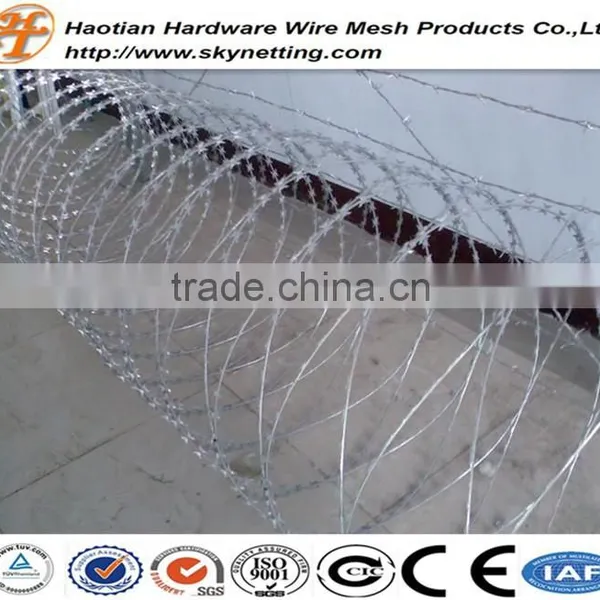

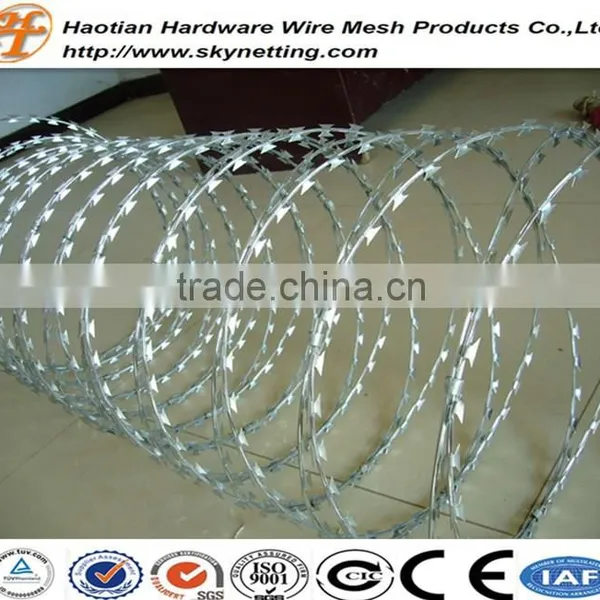

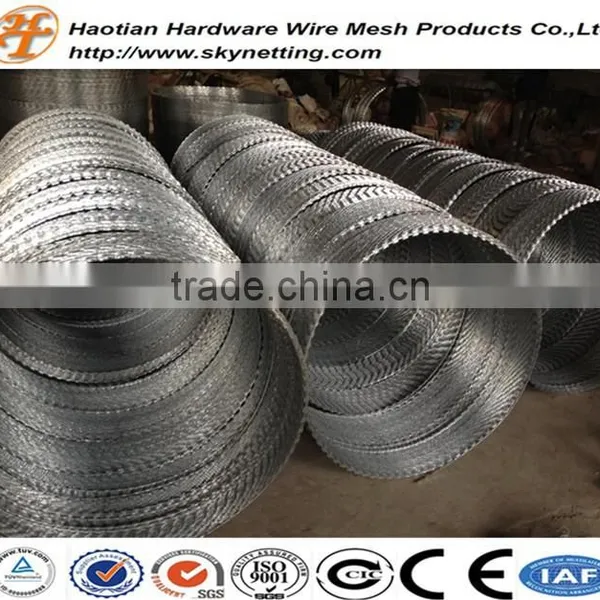

Concertina Razor Wires, Razor Wire, BTO-22 Razor Barbed Wire (High Quality)
Concertina razor wires, Razor wire, BTO-22 razor barbed wire (High quality)
Material: Galvanized steel sheet
Blade thickness:0.5mm
Core Wire Diameter : 2.5mm
Blade Length : 10,12,18,22,28,30,65.(mm)

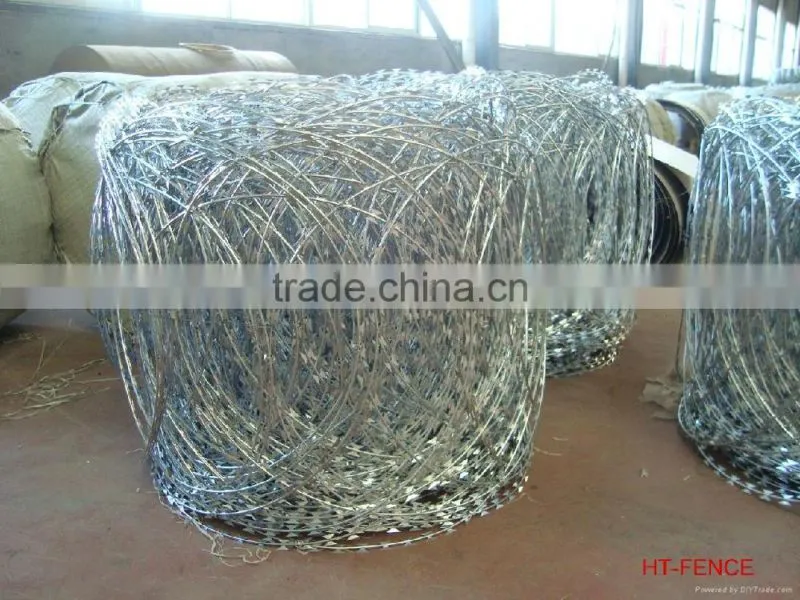

roll outer diameter :450-950mm
Standard length : 8-16m

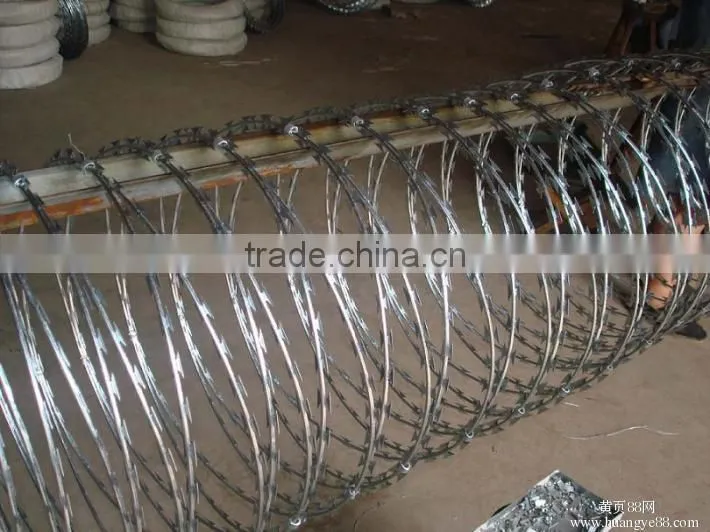

Classify :Spiral type, linear type, helical crossover type

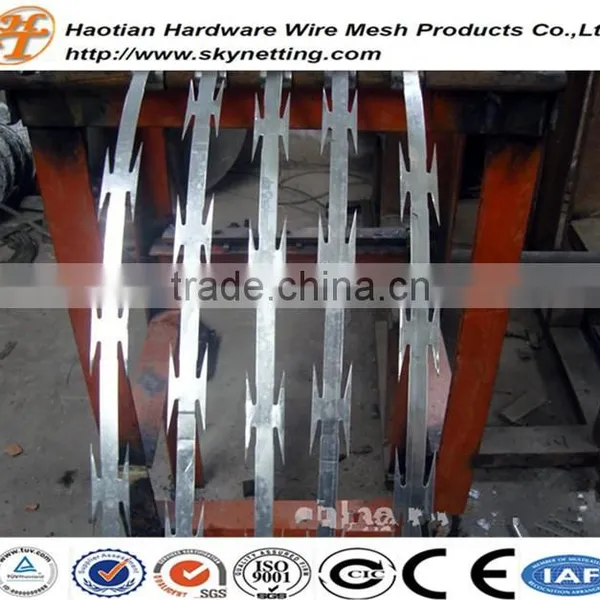

| Razor blade type and specification | |||||
| Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±1 | 21±1 | 100±1 |
| Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |

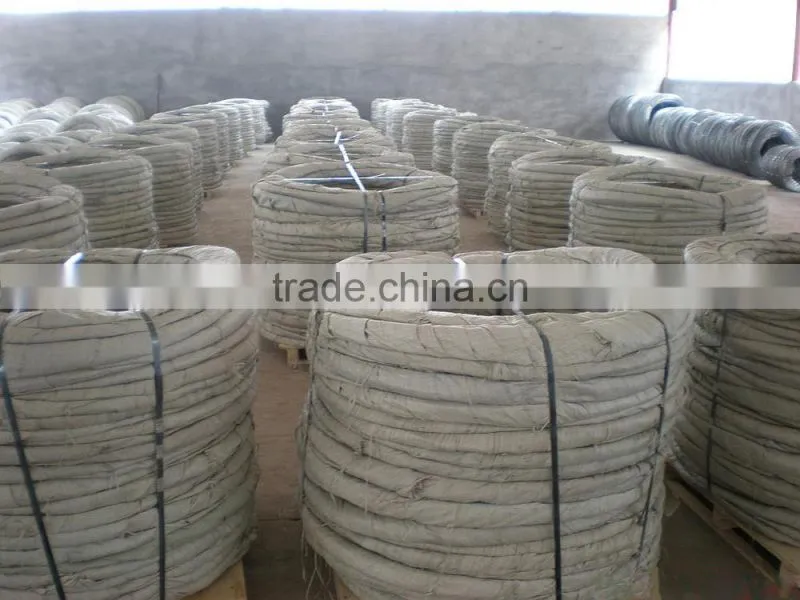

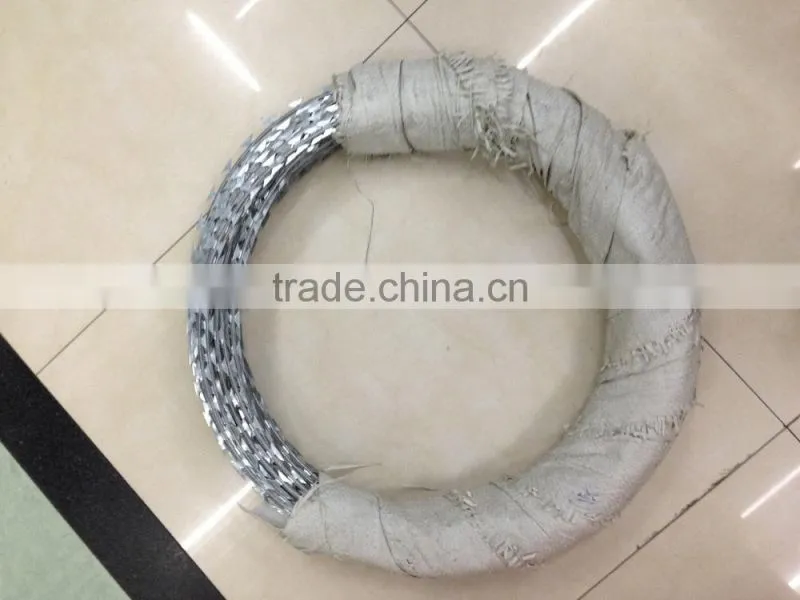

Packing:
1.in bulk
2. using pallets
Shipping:
The nearest port is Xingang in Tianjin city, so the FOB price is based on this port.
Haotian Hardware Wire Mesh Products Co.,Ltd is specialized in the production of Temporary Fence series(swimming poll panel,temporary steel hoarding,fence clamp,fence feet,fence barce,etc) Crowd Control Barrier,Mesh Fence.Horse Panel,Dog Kennel,Gabions,Iron Decorative Mesh Fence with nice design,etc.

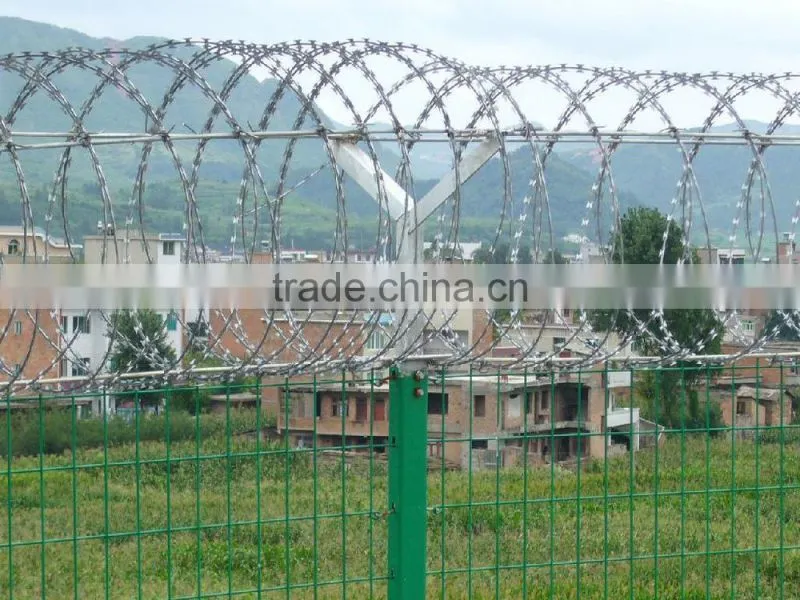

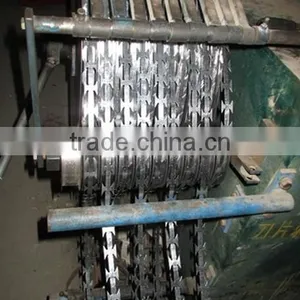

Our products are widely used for Commercial Grounds(corporation,hotel,supermarket),Private Grounds(countyyard,Villadom),Public Grounds(park,zoo,stations),Road and Transit(highway,railway,road,city transit). We have Professional wire mesh fence production line,including spoty welding machine,single spot welding machine,auto steel wire mesh welding & shaping machine,and punch machine for fence processing. Our fence products is corrosion-resistance,anti-aging property,acid and alkali resistance,no color fading,smooth and neat surface with comfortable touch,
Haotian export a large quantity of mesh fence to Australia,America,Russia,Poland,France,German and Denmakr,etc. We are ready to offer you Best Products in reasonable price all the time,waiting for hearing from you.

The prices of the raw material are always change, if you want to set orders, pls contact with me to update the price, thank you!
We sincerely hope to cooperate with you!
