Steel Angle/steel Angle Sizes 30*30/steel Angle Iron
US$ 2.4 - 3.8
MOQ: 1500 Pieces
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
100*75*7-----200*100*16
Grade:
S235JR-S335JR Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang (tianjin)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Standard Galvanized Angle Iron Sizes/hot Rolled Equal and Unequal Steel AnglesUS$ 2.4 - 3.8MOQ: 1500 Pieces -
Angle Iron Sizes , Angle Iron Prices , Galvanized Angle Iron PricesUS$ 2.4 - 3.8MOQ: 1500 Pieces
-
2015 Hot Sales! Haotian OEM Galvanized Steel Round Spiral Ground Anchor Helical Screw PilesUS$ 3.3 - 19.6MOQ: 500 Pieces
-
2015 Hot Sales! Haotian Auger Big Spiral Screw Anchor Bolt Pile Made In ChinaUS$ 3.3 - 19.6MOQ: 600 Pieces
-
N 89 Helix Ground Anchor Spiral Ground Screw AnchorUS$ 3.36 - 19.6MOQ: 350 Pieces
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
100*75*7-----200*100*16
Grade
S235JR-S335JR Series
Place of Origin
Hebei, China
Brand Name
Haotian
Model Number
HT-LA08

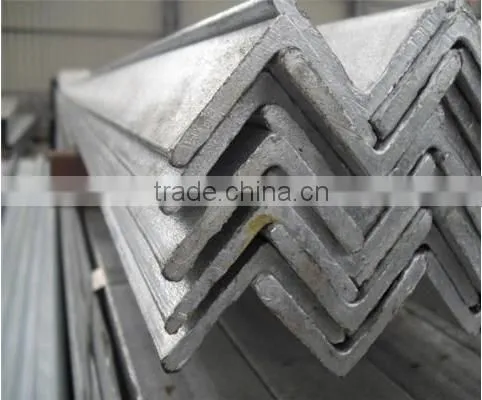

Hot dip carbon steel galvanized angle iron sizes
1.Specifications: 20*20*2mm-200*200*20
2.Wall thickness: 2-20mm
3.Length: 1-12m,we can also cut it into different size to suit your requirement.
4.Steel grade: Q195, Q235,Q345,10#,20#,ASTM A106 GRB
5.Packing: plastic film wooden pallet, as customer's requirement
6.Zinc coated:200-400 g/m2
7. Standard size:
| Size | Thickness | Length |
| 40 x 40mm | 4mm, 5mm | 6-12m |
| 50 x 50mm | 4mm, 5mm, 6mm | 6-12m |
| 63 x 63mm | 5mm, 6mm, 8mm | 6-12m |
| 65 x 65mm | 6mm, 8mm | 6-12m |
| 70 x 70mm | 6mm | 6-12m |
| 75 x 75mm | 6mm, 9mm, 12mm | 6-12m |
| 80 x 80mm | 6mm, 7mm | 6-12m |
| 90 x 90mm | 6mm, 7mm, 8mm, 10mm | 6-12m |
| 100 x 100mm | 8mm, 10mm | 6-12m |
| 110 x 110mm | 8mm, 10mm | 6-12m |
| 125 x 125mm | 8mm, 10mm | 6-12m |
| 130 x 130mm | 9mm, 12mm, 15mm | 6-12m |
| 140 x 140mm | 10mm, 12mm, 14mm | 6-12m |
| 160 x 160mm | 10mm, 12mm, 14mm, 16mm | 6-12m |
| 150 x 150mm | 12mm, 15mm | 6-12m |
| 175 x 175mm | 12mm, 15mm | 6-12m |
| 180 x 180mm | 12mm, 14mm | 6-12m |
| 200 x 200mm | 15mm, 20mm, 25mm | 6-12m |
250 x 250mm |
25mm, 35mm | 6-12m |
| SIDE(MM) | THICKNESS(MM) | THEORETICAL WEIGHT (KG/M) |
| 65 X 65 | 5 | 5.00 |
| 65 X 65 | 6 | 5.91 |
| 65 X 65 | 8 | 7.66 |
| 70 X 70 | 6 | 6.38 |
| 75 X 75 | 6 | 6.85 |
| 75 X 75 | 9 | 9.96 |
| 80 X 80 | 6 | 7.32 |
| 90 X 90 | 6 | 8.28 |
| 90 X 90 | 7 | 9.59 |
| 90 X 90 | 10 | 13.3 |
| 90 X 90 | 13 | 17.0 |
| 100 X 100 | 7 | 10.7 |
| 100 X 100 | 10 | 14.9 |
| 100 X 100 | 13 | 19.1 |
| 120 X 1200 | 8 | 14.7 |
| 130 X 130 | 9 | 17.9 |
| 130 X 130 | 12 | 23.4 |
| 130 X 130 | 15 | 28.8 |
| 150 X 150 | 12 | 27.3 |
| 150 X 150 | 15 | 33.6 |
| 150 X 150 | 19 | 41.9 |
| 175 X 175 | 12 | 31.8 |
| 175 X 175 | 15 | 39.4 |
| 200 X 200 | 15 | 45.3 |
| 200 X 200 | 20 | 59.7 |
| 200 X 200 | 25 | 73.6 |
Standard Sectional Dimension(MM) |
THICKNESS(MM) |
Weight(KG/M) |
75*50 |
5 |
4.81 |
75*50 |
6 |
5.67 |
100*75 |
7 |
9.32 |
100*75 |
8 |
10.6 |
100*75 |
10 |
13.0 |
100*75 |
12 |
15.4 |
125*75 |
7 |
10.7 |
125*75 |
8 |
12.2 |
125*75 |
10 |
15.0 |
125*75 |
12 |
17.8 |
150*75 |
7 |
12.1 |
150*75 |
9 |
15.3 |
150*75 |
10 |
17.0 |
150*75 |
12 |
20.1 |
150*75 |
15 |
24.8 |
150*90 |
9 |
16.4 |
150*90 |
10 |
18.2 |
150*90 |
12 |
21.6 |
150*90 |
15 |
26.6 |
150*100 |
9 |
17.1 |
150*100 |
12 |
22.4 |
150*100 |
15 |
27.7 |
200*100 |
10 |
23.0 |
200*100 |
12 |
27.3 |
