Help CenterGalvanized Iron Wire
Related Products
Specifications
galvanized iron wire1)wire dia:0.7-4.06mm
2)Zinc coating:20--300g/sqm
3)packing:5kg--500 kg/coil
4)T/S:340--1180 N/mm2
Galvanized iron wire
galvanized iron wire
1)wire dia:0.7-4.06mm
2)Zinc coating:20--300g/sqm
3)packing:5kg--500 kg/coil
4)T/S:340--1180 N/mm2
galvanized iron wire also known as galvanized steel wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.
Materials: Low carbon steel, medium carbon steel or high carbon steel.
According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire.
specification:
Gauge |
SWG in mm |
BWG in mm |
metric mm |
Common weight/coil
|
8 # |
4.06 |
4.19 |
4.00 |
50-100kgs
|
10# |
3.25 |
3.40 |
3.50 |
50-100kgs
|
12# |
2.64 |
2.77 |
2.80 |
50-100kgs
|
14# |
2.03 |
2.11 |
— |
50-100kgs
|
16# |
1.63 |
1.65 |
1.65 |
50-100kgs
|
18# |
1.22 |
1.25 |
1.20 |
5-25kgs
|
20# |
0.91 |
0.89 |
0.90 |
5-25kgs
|
21# |
0.81 |
0.813 |
0.80 |
5-25kgs
|
22# |
0.71 |
0.711 |
0.70 |
5-25kgs
|
patterns:

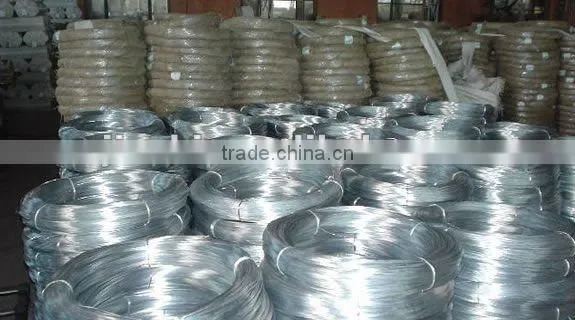

1.in rolls:

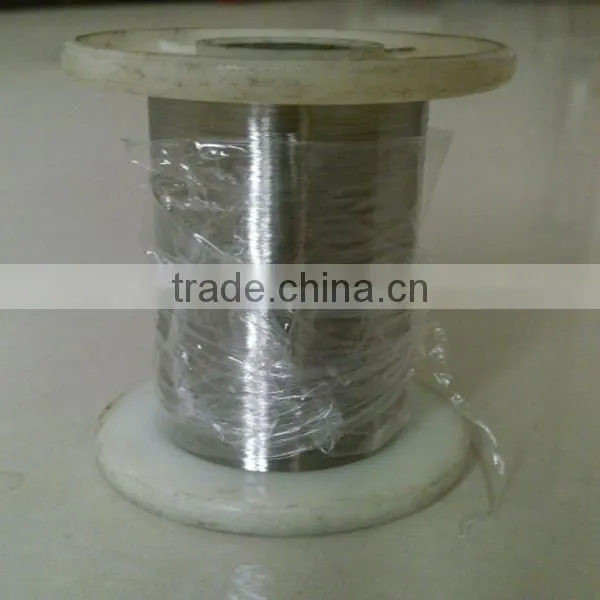

2.in spool
package:
-
Galvanized Wire in Small Coils:
Wire diameter: 0.5-1.8mm
Packed in 1kg-20kg small coils. Plastic film inside, gunny bags or woven bags outside.
-

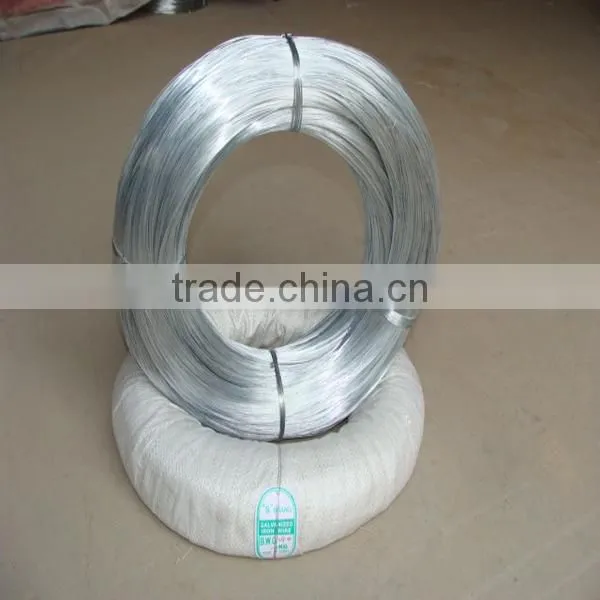

Galvanized Wire in Big Coils:
Wire diameter: 0.6-1.6mm.
Tensile strength: 300--500MPa.
Elongation: =15%.
Packing: Big coils of 150kg-800kg.
-
Galvanized Wire on Spools:
Wire diameter: 0.265-1.60mm.
Tensile strength: 300--450MPa.
Elongation: =15%.
Packing: On spools of 1kg-100kg.

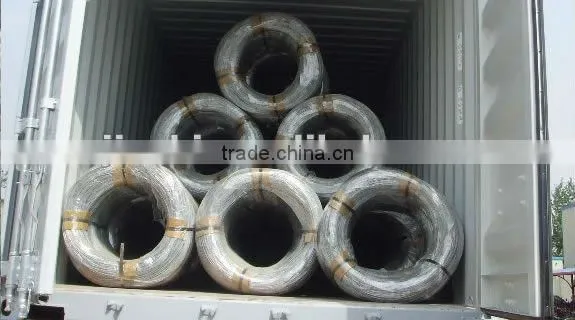

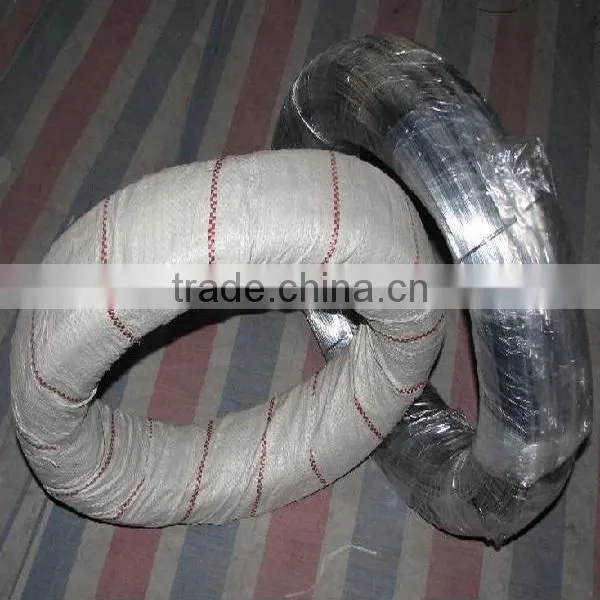

Packing: in coils and from 0.7kgs/coil to 800kgs/coil then each coil to be wrapped inside with PVC strips and outside with Hessian cloth or inside with PVC strips and outside with weaving bag.
Applications: Galvanized iron wire is mainly used as wire for meshes, spring wires, rope wires, knitting wires, scrubbing wires, wire for control cable, wire for braiding hoses, wire for conveyor belts, wires for welding, Tig and Mig wires, nail wires, wires for constructions, stitching Wire, etc.
