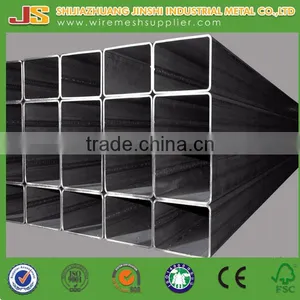

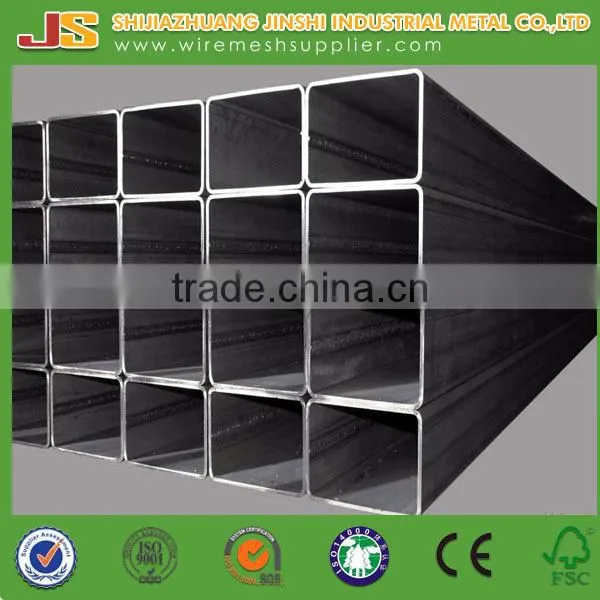

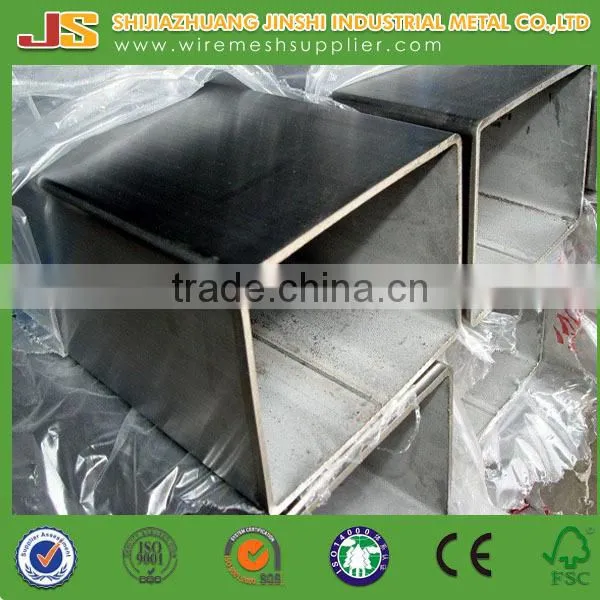

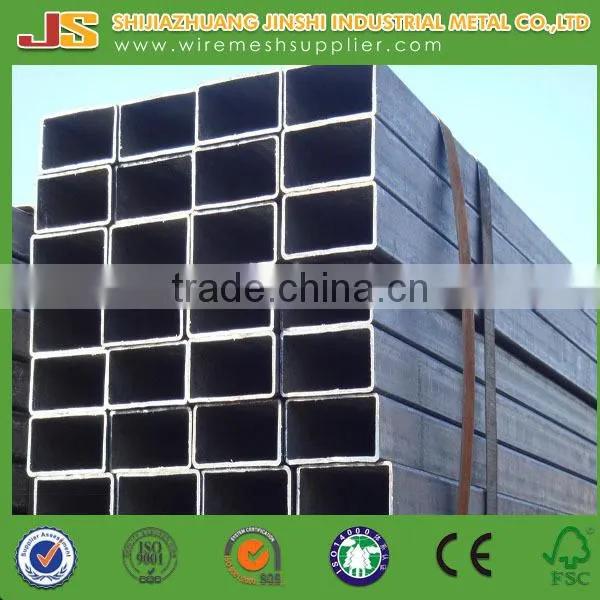

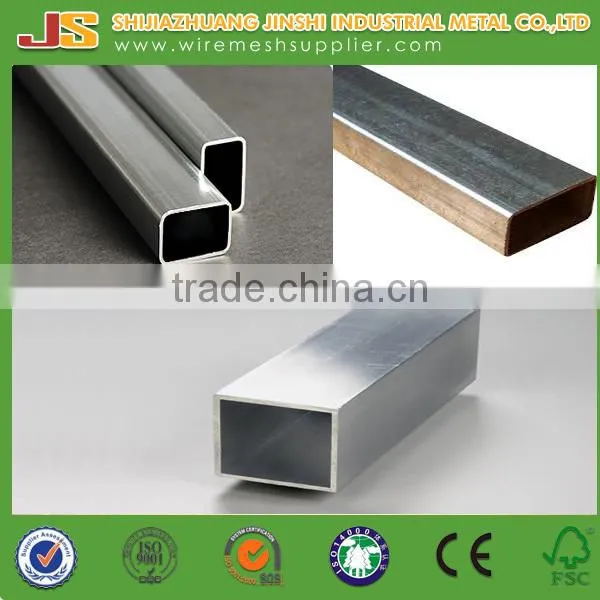

Help Center60 x 80 Galvanized Gas Pipeline Rectangle Seamless Steel Tubes
Related Products
-
DIN Galvanized Oil Pipeline Rectangle Seamless Steel TubesUS$ 572 - 938MOQ: 1 Ton -
ASTM Galvanized Structural Hollow Sections Rectangle Welded PipesUS$ 572 - 938MOQ: 1 Ton
-
Bright Annealed Oil Pipeline Rectangle Seamless Steel TubesUS$ 600 - 900MOQ: 10 Tons
-
Bright Annealed Liquid Pipeline Rectangle Structural Seamless Steel TubesUS$ 600 - 900MOQ: 10 Tons
-
Galvanized Gas Pipeline Rectangle Seamless Steel TubesUS$ 600 - 900MOQ: 10 Tons
Specifications
60 x 80 Galvanized Gas Pipeline Rectangle Seamless Steel Tubessize:
OD:10*20-300*500mm, Dia:0.5-20mm,
Length:3-12m
60 x 80 Galvanized Gas Pipeline Rectangle Seamless Steel Tubes
size: OD:10*20-300*500mm, Dia:0.5-20mm,
Length:3-12m
60 x 80 Galvanized Gas Pipeline Rectangle Seamless Steel Tubes
Characteristics:
The pipe internal stress is very small and uniformly distributed after the full- length expansion. The corrosion and cracking of the pipe owing to stress can be effectively prevented. The application of welding on site is very easy because of the high dimension precision;
The inside and outside welding are performed after the tack welding , so the welding process is very stable with good weld quality;
The NDT is easy to perform on the weld during production and field operation as well;
The length of the weld is shorter than that of the non-longitudinal seam pipe, so the probability of defects occurrence is very low;
The coverage of the pipe specification is very wide. The pipe can be either in large diameter with thick wall or in small diameter with thick wall.
Application:
The pipes are mainly used as long distance transportation pipeline for oil, gas, liquid coal etc. on land and
offshore. And also can be applied as construction pipes on offshore platform, power station, petrochemistry and city
construction etc.
Heat treatment:
Annealed: Bright annealed, , Spheroidize annealed
Normalized, Stress relieved, Cold finished, Quenched and Tempered

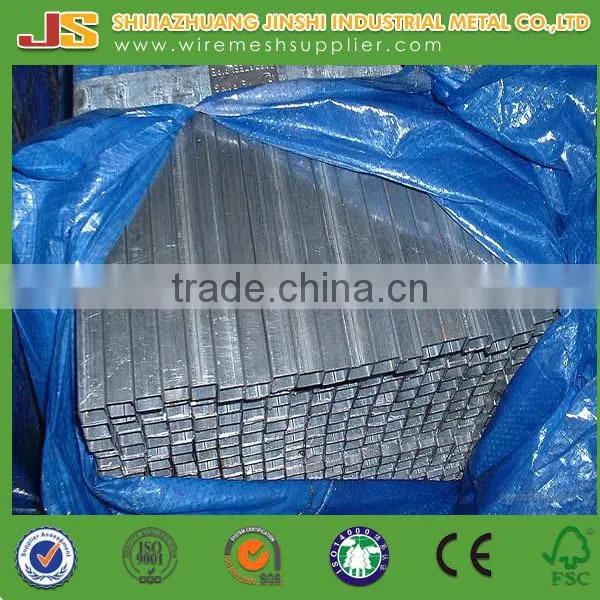

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection.
Chemical components and mechanical property of seamless steel pipe:
Standard |
Chemical components |
Mechanical property |
|||||||||||
C |
Si |
Mn |
P |
S |
Cu |
Ni |
Mo |
Cr |
V |
Tensile strength (Mpa) |
Yield strength (Mpa) |
Elongation (%) |
|
ASTM A53 |
≤0.30 |
/ |
≤1.2 |
≤0.05 |
≤0.06 |
≤0.04 |
≤0.40 |
≤0.15 |
≤0.04 |
≤0.08 |
≥415 |
≥240 |
≥29.5 |
ASTM A106 |
≤0.30 |
≤0.10 |
0.29-1.06 |
≤0.035 |
≤0.035 |
≤0.04 |
≤0.40 |
≤0.15 |
≤0.04 |
≤0.08 |
≥415 |
≥240 |
≥30 |
ASTM A179 |
0.06-0.18 |
≤0.25 |
0.27-0.63 |
≤0.035 |
≤0.035 |
/ |
/ |
/ |
/ |
/ |
≥325 |
≥180 |
≥35 |
ASTM 192 |
0.06-0.18 |
≤0.25 |
0.27-0.63 |
≤0.035 |
≤0.035 |
/ |
/ |
/ |
/ |
/ |
≥325 |
≥180 |
≥35 |
ISO9001-2008
