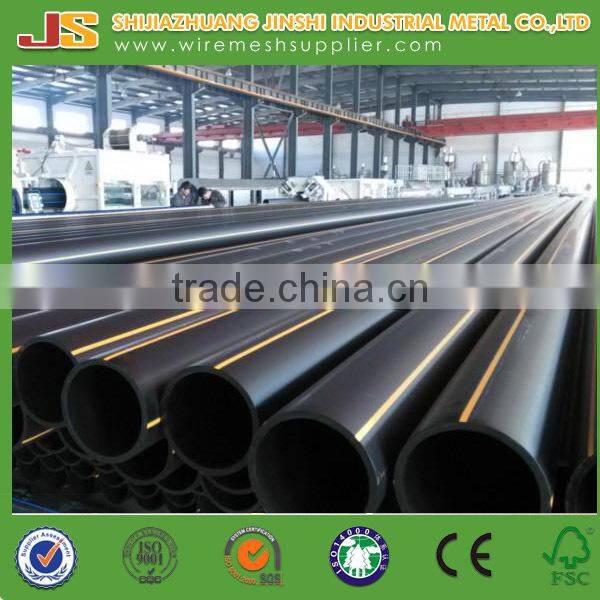

PE80 and PE100 HDPE Gas Pipe/Gas Tubes
- Tianjin Port
- T/T Money Gram Credit Card
You May Like
-
20MM PE100 Polyethylene Nature Gas Pipe Hot Sales
-
Large Diameter HDPE Corrugated Pipe With Low Price
-
SN4 HDPE Corrugated Pipe Used in Drainage
-
SN8 HDPE Double Wall Corrugated Pipe For Sewage
-
SN8 Underground Water Used HDPE Double Wall Corrugated Pipe With Rubber Ring
-
SN Rainwater Socket Corrugated HDPE Pipe
Product Details
| Place of Origin | Hebei, China | Brand Name | SINODIAMOND | |
| Model Number | JSG | Material | PE | |
| Specification | 20mm - 630mm | Length | 6 OR 12M | |
| Thickness | SDR17.6,SDR11 | Standard | GB/T15558.1-2003 ,GB/T15558.2-2005 |
Product Description
ISO9001-2008
Ali Supplier Assessment
PE80 and PE100 HDPE Gas Pipe/Gas Tubes
1.HDPE pipe 20mm - 630mm
2.En 2.3mm-57.3mm
3.High quality and cheap price
ISO/CE/BV
Product introduction
brand: SINODIAMOND
specification:20-630mm
material: high density polyethylene
length: 4m,6m or as request
color: black with yellow line or as request
standard: ISO14001,ISO9001,GB/T15558.1-2003 ,GB/T15558.2-2005
pressure grade: 1.0Mpa, 1.6Mpa
wall thickness: SDR17.6,SDR11
packing: straight pipe or coil pipe
connection: socket fusion, butt fusion, electro-fusion, flanged
Applications:
Transportation for neutral gas, liquefied petroleum gas, coal gas and industrial corrosive liquid.
Features
1. Good corrosion resistance
2. Excellent flexibility
3. Good abrasion resistance
4. Good stress crack resistance
5. Long usage life of 50 years
6. Large flow capacity
7. Remarkable economic benefits
8. Convenient construction
PE gas pipe specification catalog | |||||
outside diameter mm | PE80 | PE100 |
| ||
SDR17.6/0.2MPa | SDR11/0.4MPa | SDR17.6/0.6MPa | SDR11/1.0MPa |
| |
wall thickness mm | wall thickness mm | wall thickness mm | wall thickness mm |
| |
mm | mm | mm | mm |
| |
16 | 2.3 | 3.0 | 2.3 | 3.0 |
|
20 | 2.3 | 3.0 | 2.3 | 3.0 |
|
25 | 2.3 | 3.0 | 2.3 | 3.0 |
|
32 | 2.3 | 3.0 | 2.3 | 3.0 |
|
40 | 2.3 | 3.7 | 2.3 | 3.7 |
|
50 | 2.9 | 4.6 | 2.9 | 4.6 |
|
63 | 3.6 | 5.8 | 3.6 | 5.8 |
|
75 | 4.3 | 6.8 | 4.3 | 6.8 |
|
90 | 5.2 | 8.2 | 5.2 | 8.2 |
|
110 | 6.3 | 10.0 | 6.3 | 10.0 |
|
125 | 7.1 | 11.4 | 7.1 | 11.4 |
|
140 | 8.0 | 12.7 | 8.0 | 12.7 |
|
160 | 9.1 | 14.6 | 9.1 | 14.6 |
|
180 | 10.3 | 16.4 | 10.3 | 16.4 |
|
200 | 11.4 | 18.2 | 11.4 | 18.2 |
|
225 | 12.8 | 20.5 | 12.8 | 20.5 |
|
250 | 14.2 | 22.7 | 14.2 | 22.7 |
|
280 | 15.9 | 25.4 | 15.9 | 25.4 |
|
315 | 17.9 | 28.6 | 17.9 | 28.6 |
|
355 | 20.2 | 32.3 | 20.2 | 32.3 |
|
400 | 22.8 | 36.4 | 22.8 | 36.4 |
|
450 | 25.6 | 40.9 | 25.6 | 40.9 |
|
500 | 28.4 | 45.5 | 28.4 | 45.5 |
|
560 | 31.9 | 50.9 | 31.9 | 50.9 |
|
630 | 35.8 | 57.3 | 35.8 | 57.3 |
|
