Help CenterLongway PLC Control Automatic 32-32-10 Glass Bottle With Pulling Cap for Liquor Filling Machine for Beer or Carbonated
Related Products
-
Zhangjiagang Longway Beverage Glass Bottle Carbonated Bottle Filling SystemNegotiableMOQ: 1 Unit -
Longway Zhangjiagang Modular Design Beer Washing Filling Capping MachineNegotiableMOQ: 1 Unit
-
High Quanlity Automatic Beer Glass Bottle Pressure FillerNegotiableMOQ: 1 Unit
-
Glass Bottle Beer Rinser Filler Capper 3 in 1 MonoblocNegotiableMOQ: 1 Unit
-
100% Factory Longway Pull Ring Cap Glass Bottle Beer Filling Machine/ Washing-filling-cappingNegotiableMOQ: 1 Unit

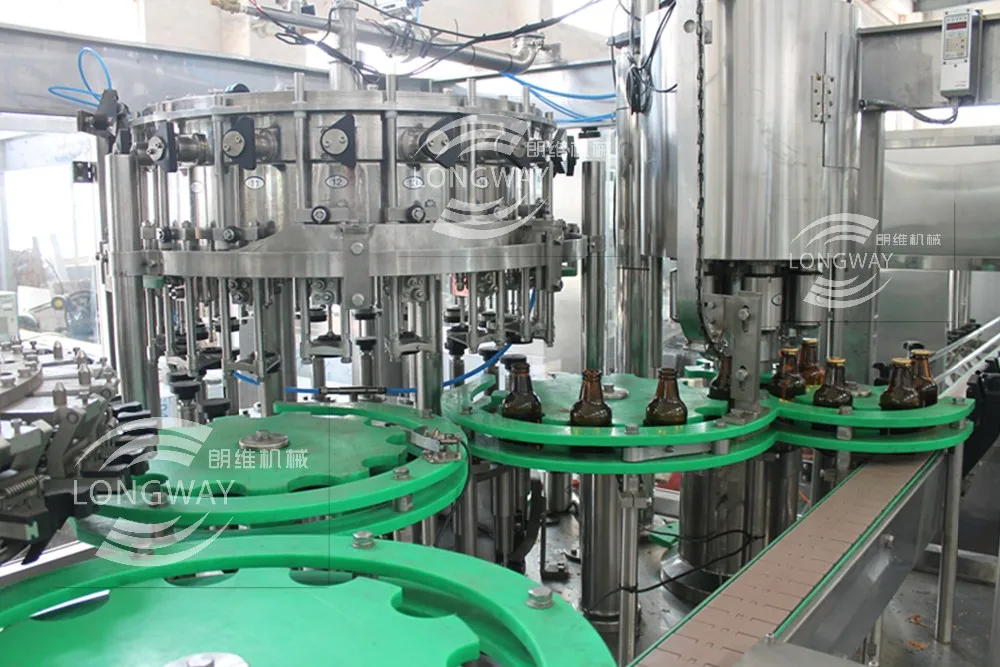

utomatic Beer Glass Bottle Beer PressureFilling Machine
It is used for filling and sealing various kind of glass bottle with Alu Screw cap and pull ring cap or Crown Caps for carbonated beer filling production line.
Main technical standards:
Model | BDGF12-12-4 | BDGF18-18-6 | BDGF24-24-8 | BDGF32-32-10 | |
Production B/H(600ml) | 2000-3000 | 3000-4500 | 5000-7000 | 8000-10000 | |
Bottle standard | Neck:φ50-100mmHeight150-320mm | ||||
Water pressure of washing bottle | 0.18-0.25Mpa | ||||
Water consumption for washing bottle kg/h | 1300 | 2000 | 3000 | 4000 | |
Spraying position | 4 | 7 | 10 | 14 | |
Dripping bottle position | 3 | 5 | 8 | 10 | |
Filing precision | +5MM | ||||
Gas source pressure | 0.4Mpa | ||||
Filling pressure | 0.4Mpa | ||||
Gas consumption(m³/min) | 0.3 | 0.4 | 0.5 | 0.7 | |
Total power kw | 4.2 | 4.5 | 5 | 6.2 | |
Total weight kg | 2 | 2.5 | 3 | 4 | |
Dimension L*W*H)mm | 2100*1700*2100 | 2500*1850*2100 | 2700*2200*2100 | 3500*2200*2100 | |
We can also customize the size you need

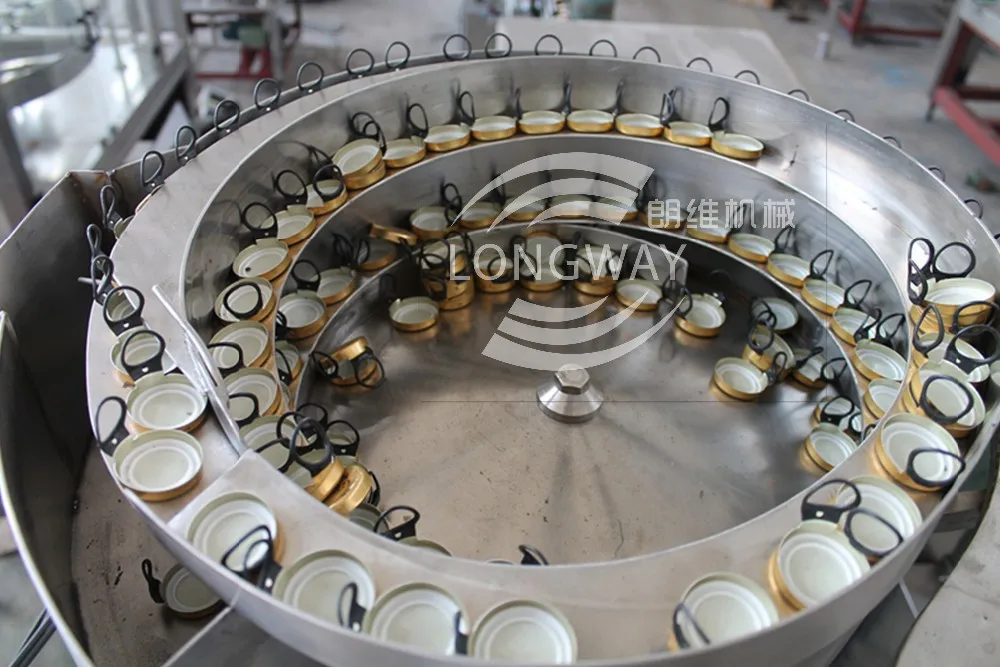

Beer Filler With Pull Ring Caps
Beer Filler With Aluminum Screw Caps

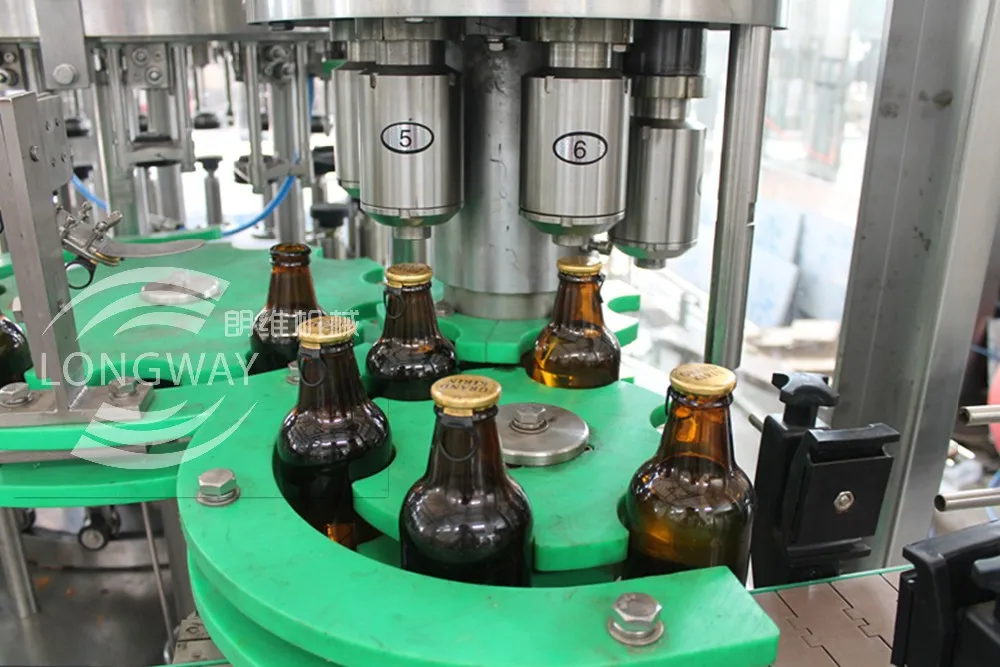

Beer Filler With Crown Caps
