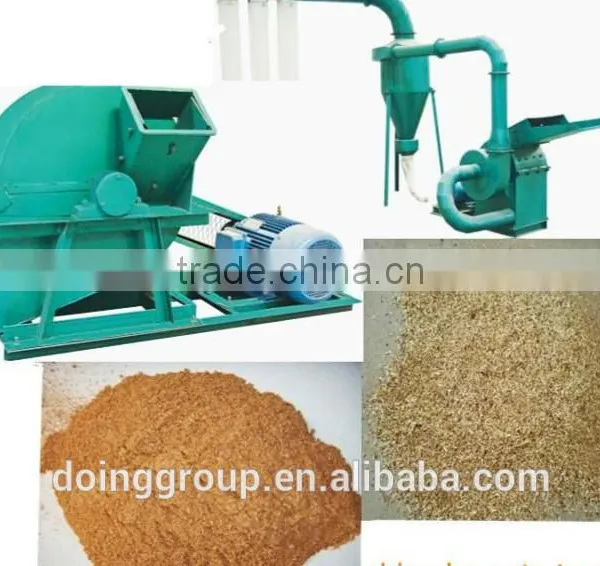

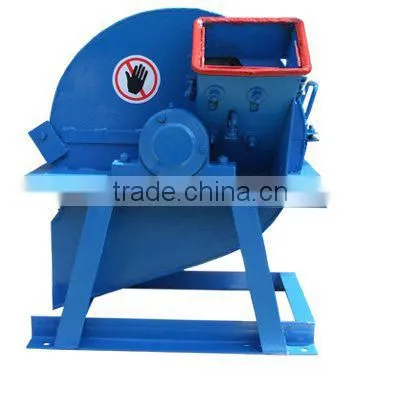

Wood grinder made in China for sale
This wood grinder is widely used in crushing various materials, such as pine wood, log, tree branch, waste wood and so on. These raw materials can be crushed into fine sawdust and powder by this machine at one time, the whole machine uses one motor, simple structure, and stable working condition. It is suitable for milling raw material like (tree branch, tree trimmings, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm (diameter). After milled, the output size can reach to 3-5mm (diameter) after milled, which is suitable for further pelletizing and briquetting.
Technical parameters:
model |
blade |
Input size(mm) |
Diameter (mm) |
Size (mm) |
Capacity (t/h) |
Speed (r/min) |
Power (kw) |
Demision (mm) |
DYPX-420 |
4 |
170*150 |
420 |
90*60*8 |
1 |
2600 |
7.5 |
1200*550*750 |
DYPX-500 |
4 |
200*170 |
500 |
120*70*8 |
1.2 |
2000 |
15 |
1500*640*820 |
DYPX-600 |
4 |
220*190 |
600 |
150*70*8 |
1.5 |
2000 |
18.5 |
1500*700*900 |
DYPX-700 |
4-6 |
230*190 |
610 |
150*70*8 |
1.8 |
2000 |
30 |
1850*830*1050 |
Operating range of wood grinder for processing timber waste
Wood grinder is a new type wood working machine, it can make the raw materials such as Wood, Wood chips, Wood block, Branch into sawdust and powder in one process. Machine can be installed on the cart or farm vehicle. Engine can be electromotor, diesel engine, gasoline engine, both of them are ok for working.
Features:
This machine is based on the needs of industrial production in China, after years of research and design of the timber invented special equipment to smash series. As a result of rational design, compact structure, safety, durability, production efficiency, by promoting the use of, the result is good, only a whole set of equipment, motor drive, noise, simple structure, compact layout, the price cheap, stable, consumption less able to yield high quality wood products, low processing costs.
Raw material of wood grinder for processing timber waste
1. It is suitable for preparing sawdust or biomass small grains for briquette press and dryer in the biomass briquetting plant. It can crush raw wood into size of 3-5mm (diameter).
2. To ensure security, do not put the nails and other metal fragments into the waste wood crusher.
The final produces:
All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction, such as customs cleaning.
1. Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investment
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2. Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans.
3. After-sale services
Provide considerate services to minimize clients’ worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
(7) Provide perfect service
Henan Doing Mechanical Equipment Co,Ltd. Is a professional manufacturer of wood grinder, We have been incorn thresher manufacturing industry for 40 years, we launch wood chipper, shaving machine and wood crusher. With rich experiences, our engineer team helps customers design different wood grinder with different capacities.
Welcome to your enquiry,contact us if you are interested in wood grinder ,we will reply promptly.
