Automatic palm oil extraction machine | malaysia palm oil machine supplier
- 20 Set / Sets per Month
- Qingdao/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, palm oil extraction machine | Type: | Other, palm oil extraction machine |
Automatic Grade: | Automatic | Production Capacity: | 98%-100% | Place of Origin: | Henan, China |
Brand Name: | Doing Brand | Model Number: | 6YL | Voltage: | 220V/380V/440V |
Power(W): | Depend | Dimension(L*W*H): | various with capacity | Weight: | changed with capacity |
Certification: | CE and ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic palm oil extraction machine | malaysia palm oil machine supplier
1. palm oil extraction machine
2.CE&ISO.
3.Handling capacity: 10-500MT
4.From palm fruit to reifned oil.
mini palm oil press machine, palm oil press machine
palm kernel oil extraction machine
Palm fruits process line:
1. Raw materials receiving of whole line palm oil extraction machine : Fresh palm fruit bunch will be loaded on a slope. Under the slope, there are some cages to receive the palm fruits.
2.Sterilizing of whole line palm oil extraction machine : fresh palm fruits bunch are airtight sterilized in sterilizer. The purpose to prevent enzymes broken down, avoiding FFA content in oil further increase ; easy threshing machinery;
pretreatment peel, prepared for the follow-up processing; preconditioning stone, reducing the damage kernel.
3.Threshing of whole line palm oil extraction machine : The purpose of threshing is the oil palm fruits be separated from the fruit bunch through strong vibration, Threshing equipment is revolving drum thresher. The oil palm fruits separated beejected then into the press section. Empty fruit bunch be ejected to the yard from the other side of the revolving drum, or shipped out from the plant as palm orchards slipcover to recycling use, or burning in the locale as fertilizer for agricultural land.
4.Mashing of whole line palm oil extraction machine : It is utilizing the masher which with stirrers. The main function is used for destroying the oil cells of the palm fruits, to guarantee the oil easy to press out.
5.Pressing of whole line palm oil extraction machine : Oil palm fruits first carry out cooking before pressed, fruit sterilized must be re-heating for the soft pulp, and damage pulp cell structure. Then enter into continuous screw press for pressing.
Oil palm fruit pressed is divided into two parts: oil, water, solid impurities mixture and the press cake (fiber and nuclear). Oil, water, solid impurities mixture by the crude oil gutter inflow to oil purification
section; press cake by breaking screw conveyor into the fiber- recovery section.
6.Clarification of whole line palm oil extraction machine : Machine-pressed crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole
divided into two parts: oil and sediment.

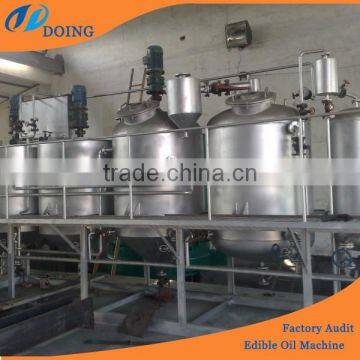

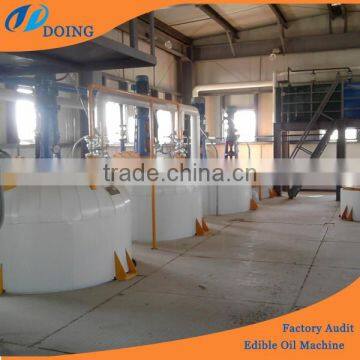

Palm oil/kernel oil refinery line of palm oil processing machine :
1.Preheating of palm oil refinery machine : Pumping crude oil into hydrate tank (oil refining tank), on one hand, quickly stirring , on the other hand, heating by steam or heat-transfer oil (in coil pipe), rise oil temperature.
2.Degumming of palm oil refinery machine : This is the most important section of hydrate de-gumming, manage the adding water (there is a little P-acid in the water) amount, temperature and add water speed, usually water adding
amount is about 3 times of phospholipid content, that is 3-10% oil weight, water temp needs to be higher than oil temp.
3.Deacidification of palm oil refinery machine :This part adopt alkali refining method, that is use alkalis like (NaOH) to neutral the free fatty acid in oil, during this process it will produce soapstock , then separated from the oil by setting several hours. NAOH solution, not only neutral free fatty acid, also can act with other matters like protein, mucus, phospholipid, pigment. After settling, release the soapstock from the tank bottom. Adding hot water to rinse, remove off the leftover lye , soap and some unhydrated phospholipid in the oil. Finally pumping out soapstock from the tank bottom.
4.Decolorization of palm oil refining machine:
In normal situation , there is pigment in the crude oil , we need to using the active clay to absorb the
pigment away , after 20 mins , we use the vibrating filter to filter the waste clay away . If you want to get light color oil , you need to add more active clay . That is mean , the customer can accord to his
requirement to control the oil color. This process is carried out under the vacuum condition.
5.Deodorization and Dehydration of palm oil refinery machine:Usually ,there are some odors in the crude oil , it affects the quality of the edible oil . About our refining process , we usually use the direct steam to take odors away in the vacuum condition . General speaking there is about 0.5% water in the alkali refined oil, in the deodorization pot, thetemperature is very high , it also can finish the dehydration section.
6. Filtering of palm oil refinery machine: This process can remove off the small amount of unsettle gum soluble impurities in the degummed oil, after oil dehydrate cooling (60 °C), filtering again, to ensure the product oil quality.
Th-en pumping the final oil into the oil tank.

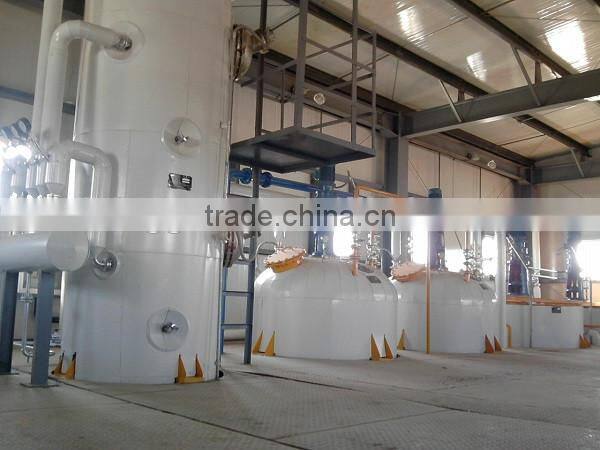

palm oil refinery plant
Containers, wooden package and simple package for oil press or according to customer's requirement of palm oil extraction machine
1. Professional solution design, high quality machines, competitive prie.
2. Consult and answer all your questions within 24 hours.
3. Factory layout design according to your requirement.
4. Formulation available.
5. Fast delivery:15 working days for single machine/40 working days for complete line
6. Professional engineer, overseas installation and commissioning, training.
7. Warranty: 1 years
8. Service life long technical support.
We can produce all kinds of vegetable oil machine , which includes palm oil extraction machine plant , peanut oil production line, soybean oil, cotton oil, sunflower oil, corn oil, rice bran oil and other kinds of edible oil production line.
The whole production line includes oil press machine, oil extraction(solvent) machine, oil refining equipment, palm oil fractionation equipment, sunflower oil dewaxing plant, decoloring process machine, deodorization process machine and other machine.
Biodiesel equipment/machines/plant can be manufactured also.
Oil seeds press production line: 10-2000MT per 24 hrs .
Solvent extraction production line: 10-1000MT per 24 hrs.
Edible oil refinery production line: 1-600MT per 24 hrs.
Biodiesel production line: 1-600MT per 24 hrs.
The biodiesel machine can produce International standard biodiesel, like EN14214 standard, ASTM 6751-03 standard, DIN V 51606 standard.
If you are interested in palm oil extraction machine plant, please feel free to contact me.
