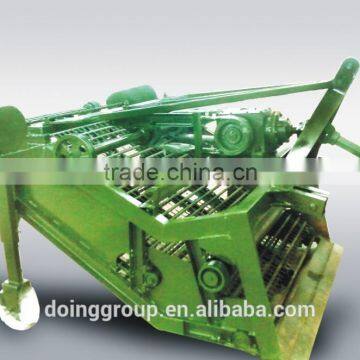

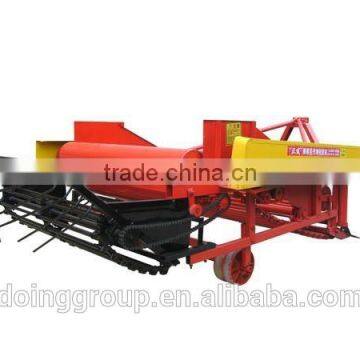

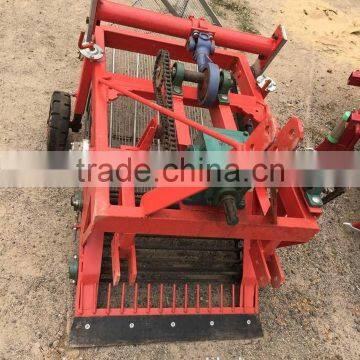

Peanut Harvesting Machine CE Approved

Peanut harvesting machine is widely used to harvest peanut. It is suitable for sandy soil, and hill field and flat field.

groundnut havester is suspended with the rear 3 point of the tractor, easy to connect, reliable for power output.we adopt  the design of bi- directional wheel and two-level vibrating wheel, so it can quickly separted the harvested plants from the non-harvesting plants, non-twine, high efficiency, low breakage. We adopt the design of bi-directional roller for breaking soil and double-deck vibrating sieve, which can well effectively  meet the clay soil and semi-sandy soil, it can well do the separation more cleaner. Bi-directional roller can break big block, it is facilitate the subsequent processing.

 Main features of peanut harvesting machine :

1. With the balance of the configuration of inertia vertical vibrating screen device, not only can also achieve clear soil and transport integration function, and with little vibration, smooth and reliable operation, rides comfortable and so on characteristics;

2. The vibrating screen grid side tail planting structure, it has the low loss, seedling lay out the effect is good wait for a characteristic;

3. With double pressure wheel clutch device, it has the characteristics of connecting smooth and reliable operation, etc.

4. 15-18 horsepower tractor can drive, and at present the most farmers have four-wheeled tractors adapt, has wide power adapter, less investment, fast convergence, etc.

 This agricultural machine is made up of :1, traction frame assembly 2, gearbox assembly 3, pressure belt wheel assembly  4, shaking soil device  5, coveying active wheel  6, reorganization ridge device  7,land wheel unit  8, tensioner wheel assembly  9, transportation chain assembly  10, transports the driven wheel  11, excavation shovel assembly  12, limit deep wheel assembly  13, latter presses the earth roller 14, first presses earth roller 15, dial seedlings roller 16, cut grass plate.

The working principle of the peanut harvesting machine:

The peanut harvesting machine working principle is that the digging shovel digs up the soil andcrops through the impetus of the tractor.And the digging shovel make crop and soil separate through vibration sieve the soil first drip down from the clearance of vibration sieve,finally the crop crashed down on to the road from the back.

peanut harvesting machine is mainly used to harveting the peanuts.This peannut harvester can finish digging, cleaning soil, putting on the ground during one operation, which is suitable for working in small pieces of peanuts planting field to decrease labor need immensely and improve the working efficiency highly at the same time. It is very popular at farmers these years because of good quality and working performance.

  All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction, such as customs cleaning.

1.Pre-sale services:

Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investment

(1) Select equipment model;

(2) Design and manufacture products according to clients’ special requirement;

(3) Train technical personnel for clients.

2.Services during the sale:

Respect clients; devote ourselves to improving the total value of clients.

(1)Pre-check and accept products ahead of delivery;

(2)help clients to draft solving plans.

3. After-sale services:

Provide considerate services to minimize clients’ worries.

(1) Assist clients to prepare for the first construction scheme;

(2) Install and debug the equipment;

(3) Train the first-line operators on site;

(4) Examine the equipment regularly;

(5)Take initiative to eliminate the troubles rapidly at site;

(6)Distribute the guarantee fittings door-to-door;

(7)provide perfect service;

(8)Provide technical exchanging;

(9)Provide maintenance for big items.

Your prompt inquiry is highly appreciated. I will reply you asap when I get your inquiry.

    Henan Doing Mechanical Equipment Co,Ltd. Is a professional manufacturer of peanut harvesting machine , We have been in  peanut harvesting machine manufactuering industry for 40 years. With rich experiences, our engineer team helps customers design different peanut harvesting machine with different capacities .
